FMS-200 - Flexible integrated assembling systems
A fully modular and flexible didactic equipment, made of industrial components, that allows an integrated training in industrial automation / mechatronics.
FMS-200 - Flexible integrated assembling systems
Integral training in industrial automation. The different process stations assemble a turning mechanism. To provide the system with greater flexibility, stations adapt to a wide variety of assemblies, introducing variations in the materials, colours and part sizes. The combination of all these possibilities means that a total of 24 different assemblies can be obtained enabling the use of production management strategies. The system includes a whole series of feeding, handling, verification and loading operations etc. carried out using components from different technologies (pneumatics, hydraulics, sensors, robotics, communications, control and HMI.).FMS-200 includes the breakdown simulation system which generates up to 16 different breakdowns to be diagnosed by the user.
Image gallery
Different configurations
Complete the configuration that best suits your needs.
Stations
Each station of FMS-200 carries out one part of the process.
Common element in all stations: Power supply, anodised aluminium structure, control keypad, solenoid valve block, labels for cables, electric connection terminals, speed controllers, air treatment unit, control PLC* and user manual and practice manual.
_* Options: PLC Siemens, Omron, Mitsubishi, Allen Bradley, Schneider or without PLC._
Common element in all stations: Power supply, anodised aluminium structure, control keypad, solenoid valve block, labels for cables, electric connection terminals, speed controllers, air treatment unit, control PLC* and user manual and practice manual.
_* Options: PLC Siemens, Omron, Mitsubishi, Allen Bradley, Schneider or without PLC._
2 versions
The transfer system
In order to provide the most flexible solutions for our customers needs, FMS-200 is available in two different versions: with a four meters long linear transfer system or with modular transfer sections coupled to each station. The two options are described below.
Linear transfer
This is a rectangular transfer system through on which pallets containing the workpiece circulate around the stations.
Modular transfer
In this FMS-200 version, each of the stations includes an individual transfer section. Multiple combinations of layouts can be developed, with the option of joining stations at 90º or 180º (section in curve, straight section).
With this system you could...

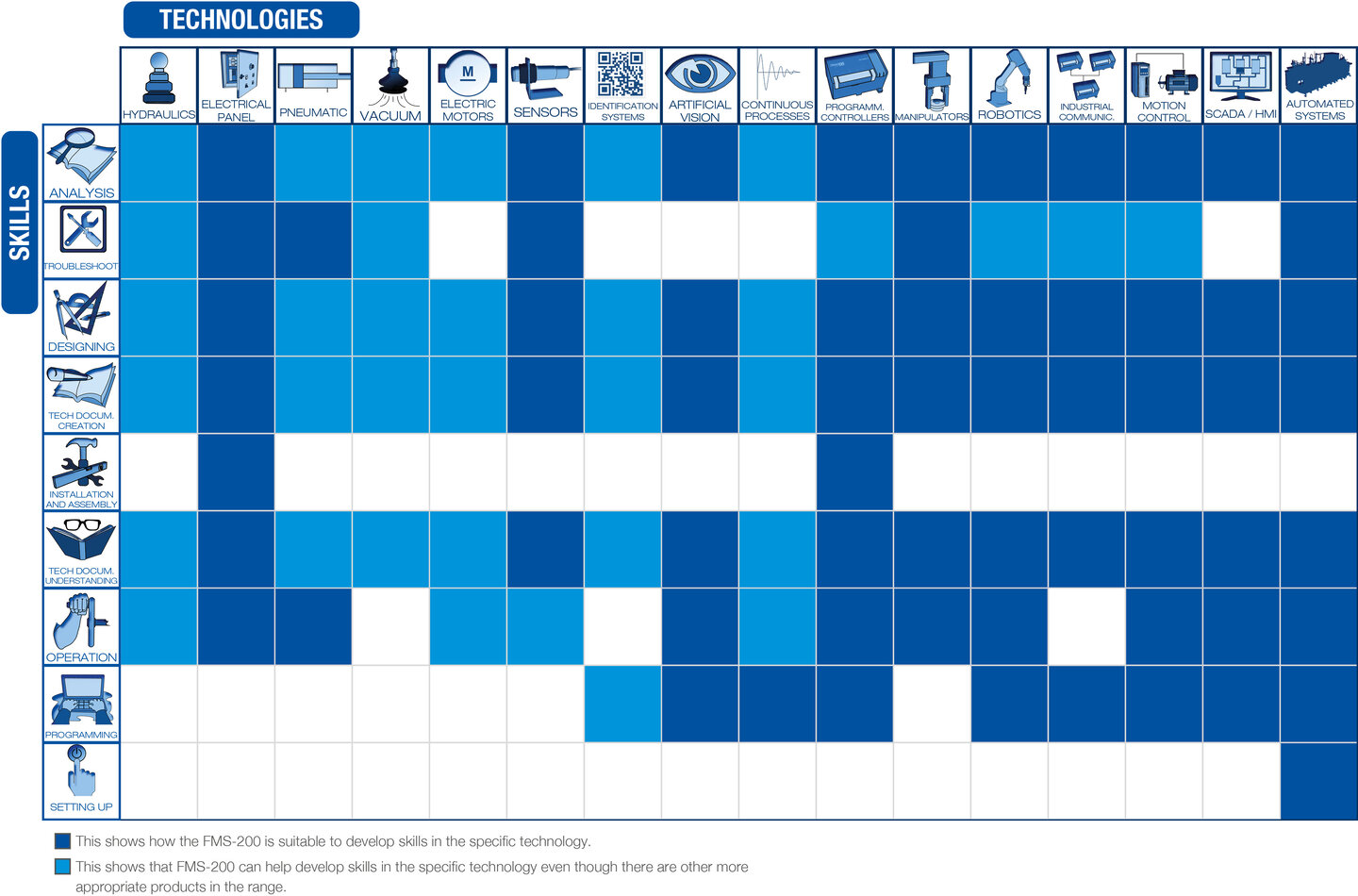

Technologies vs Skills
FMS-200 comes up with different practical activities targeting skills in the technologies featuring in the table.
Programmable Controlers
An electronic control system and associated instrumentation used for industrial process control. Such as, supervisory control and data acquisition (SCADA) systems, or DCSs, and programmable logic controllers (PLCs).
Distribution Panel
Is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.
Pneumatics
Within physics, pneumatics is part of the mechanical branch and studies the balance and movement of gaseous flows. It is also the technology that uses compressed air as a mode of transmission of the energy necessary to move and operate mechanisms.
Manipulator
It is the part of the robot that comes into contact with the parts when moving them, holding them or generating measurements.
Vacuum
"A vacuum is space devoid of matter. The word is derived from the Latin adjective vacuus (neuter vacuum) meaning "vacant" or "void". An approximation to such vacuum is a region with a gaseous pressure much less than atmospheric pressure. In industry, vacuum allows a temporary bond to be generated between the machine and the workpiece. This makes it possible to move light elements in production."
Electric Motors
An electric motor is a device that turns electrical energy into mechanical rotational energy through the action of magnetic fields generated in its coils. They are electric rotating machines composed of a stator and a rotor.
Sensors
A sensor is a device, module, machine, or subsystem that detects events or changes in its environment and sends the information to other electronics, frequently a computer processor. With advances in micromachinery and easy-to-use microcontroller platforms, the uses of sensors have expanded beyond the traditional fields of temperature, pressure and flow measurement.
Identification Systems
Industrial coding is the process by which a unique identifier is assigned to each piece of equipment, product, item or system within a company. Industrial labels and other elements such as cards or signs offer a fast and reliable solution for the identification of equipment and facilities. They are systems such as RFID, BCR, NFC and QR.
Artificial Vision
It is a scientific discipline that includes methods for acquiring, processing, analyzing, and understanding real-world images in order to produce numerical or symbolic information so that they can be processed by a computer.
Hydraulics
It is the branch of physics that studies the behavior of liquids based on their specific properties. In other words, it observes and analyzes the mechanical properties of liquids depending on the forces to which they are subjected.
Continuous Processes
Continuous production is a flow production method used to manufacture, produce, or process materials without interruption. Continuous production is called a continuous process or a continuous flow process because the materials, either dry bulk or fluids that are being processed are continuously in motion, undergoing chemical reactions or subject to mechanical or heat treatment. Continuous processing is contrasted with batch production.
Robotics
It is the discipline that deals with the design, operation, manufacture, study and application of automatons or robots. It combines areas such as mechanical, electrical, electronic, biomedical and computer science engineering to create tools that can perform tasks efficiently, quickly and in environments inaccessible to humans.
Industrial Communications
Industrial communication refers to a data transmission system designed to enable communication between field devices, such as sensors, actuators, and controllers, and the monitoring and control systems in industry.
Motion control
Motion control is a sub-field of automation, encompassing the systems or sub-systems involved in moving parts of machines in a controlled manner. Motion control systems are extensively used in a variety of fields for automation purposes, including precision engineering, micromanufacturing, biotechnology, and nanotechnology.
SCADA HMI
SCADA (supervisory control and data acquisition) is a control system architecture comprising computers, networked data communications and graphical user interfaces for high-level supervision of machines and processes.
Automated Systems
Automated systems are computer-based systems that perform tasks without human intervention or assistance. They are designed to operate automatically and continuously, often in response to predefined triggers or conditions. The use of automation has become increasingly popular across various industries, including manufacturing, healthcare, finance, transportation, and more.
Special edition - Industry 4.0
Increase your knowledge of industry 4.0 technologies and develop advanced skills in mechatronics utilizing a real industry-based platform.
Turning mechanism
Assembled product
The different process stations assemble a turning mechanism. To provide the system with greater flexibility, stations adapt to a wide variety of assemblies, introducing variations in the materials, colours and part sizes. The combination of all these possibilities means that a total of 24 different assemblies can be obtained enabling the use of production management strategies.
Product configurator
Do you want to request a quote on this product and get the specifications and technical descriptions of it?
Configure your ideal system through our product configurator and get all the related information in just a couple of clicks.
