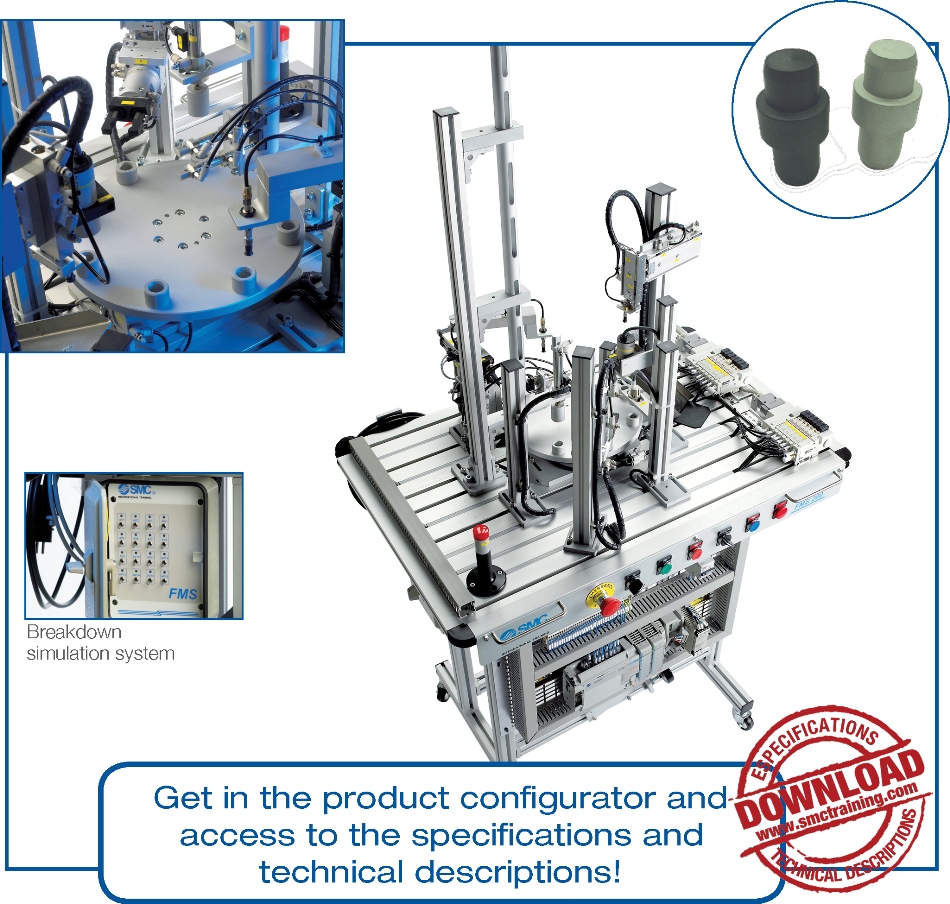

 FMS-204 - Shaft selection/ supply



In this fourth workstation, the shaft is assembled onto the workpiece coming from the previous station. There are two types of shafts depending on their material: aluminium and nylon. This increases the number of possible finished products, while also increasing the didactic capacities of the FMS-200.



The different operations undertaken in this station are distributed around an index plate. The operations are: shaft feeding, shaft presence detection, verifying shaft position, positioning the shaft in the correct orientation, material detection, removal of an incorrect shaft and finally the insertion of the shaft into the assembly.



The troubleshooting simulation system is included, which generates up to 16 different breakdowns to be diagnosed by the user.

FMS-204 - Shaft selection/ supply



REFERENCES WITH MODULAR TRANSFER WITHOUT TRANSFER
FMS-204 Shaft supply with Mitsubishi PLC SAI0435 SAI0400
FMS-204 Shaft supply with Siemens PLC SAI0473 SAI0414
FMS-204 Shaft supply with Allen Bradley PLC SAI0433 SAI0420
FMS-204 Shaft supply with Omron PLC SAI0464 SAI0424
FMS-204 Shaft supply with Schneider PLC SAI0465 SAI0423
FMS-204 Shaft supply without PLC SAI0470 SAI0422



FMS-204
 900x580x1800mm

Modules Sensors (type & quantity) Input / Output

Dividing plate
Shaft feeding
Shaft height measuring
Position shaft in the correct position
Shaft material detection
Removal of incorrect shaft
Insertion of the shaft in the assembly

Auto switch, Reed type(x12)
Inductive (x1)
Capacitive (x1)
Vacuum pressure switch(x2)

Digital 20/16

Other devices (quantity) Actuators (type & quantity)

Vacuum pad(x2)-Vacuum ejector(x2)
Three-colour indication light (x1)
Breakdown simulation system (x1)

Pneumatic rotolinear (x1)
Pneumatic linear (x9)
Pneumatic rotary actuator (x1)
Pneumatic gripper (x1)
