Control modules - Components
PNEUTRAINER-400 provides a diverse range of components for addressing both pneumatic and electropneumatic systems, ensuring comprehensive and versatile training in fluid and energy control systems.
Power supply
PN4056-XX*
- Input voltage: 100-240VAC.
- Output: 24VDC / 2,5A.
- Protection against short circuits.
- Input switch and LED display.
- Supply cable included.
_Other options available on request._
_*Configurable part number. More information: How To Order or Product configurator._
ON/OFF switch
PN4035
- 4 mm safety terminals for use with quick connection wiring.
- Includes latching pushbutton.
- Two independent contacts, NO and NC.
Emergency stop knob (electrical)
PN4034
- 4 mm safety terminals for use with quick connection wiring.
- Includes double contact, NO and NC.
Set of electrical inputs (Button pad with 3 push-buttons)
PN4036
- 4 mm safety terminals for use with quick connection wiring.
- Two push-buttons and a latching push-button.
- Independent light indicator.
- Two push-button switch contacts.
Set of 3 relays
PN4038
- Includes three relays with 24V coil and 4 switchable contacts.
- Relay-active LED.
- 4 mm safety terminals for use with quick connection wiring.
Relay, 4 switched contacts
PN4037
- Includes relay with 24V coil and 4 switched contacts.
- LED display of active relay.
Timed relay closure
PN4039
- Incluye Includes disconnection timer relay.
- LED display showing timer status.
- Time programmable between 0,1s and 1h.
- 4 mm safety terminals for quick connection wiring.
Indicators (pilots, buzzer)
PN4047
- Includes 8 pilot lights and a buzzer.
- Supplementary sockets for power distribution.
- 4 mm safety female sockets for quick connection wiring.
Set of 2 timer relays
PN4040
- Includes two timer relays, one for connection and the other for disconnection.
- 24V coil, with switch contact.
- LED display of timer status.
- Time programmable between 0,1s and 1h.
Electric counter
PN4048
- Includes inputs for counting and discounting.
- Power supply: 24V.
- Electromechanical preselection.
- Manual or electrical reset.
- Switch contact.
- It has 4 mm safety female sockets for quick connection wiring.
Electrical distributor
PN4049
- It has 4 blocks of 4 safety female sockets of 4 mm, interconnected together.
- This allows the user to carry out simple interconnections for complex circuits on different parts of the panel.
Reed auto switch
PN4043
- Operating voltage: 24V.
- Maximum current: 40mA.
- Includes LED display.
Solid state auto switch
PN4128
- Operating voltage: less than 28Vdc.
- Maximum current: 150mA.
- PNP output, open catch.
- Includes LED display.
Inductive detector
PN4044
- Includes M18 inductive detector.
- Detection distance: 5mm.
- Operating voltage: 24V.
- Includes an LED indicating status and quick connection cables.
Capacitive detector
PN4046
- Includes M18 capacitive detector.
- Detection distance: 8mm.
- Status display LED.
- Operating voltage: 24V.
Photoelectric detector
PN4045
- Includes M18 reflection photoelectric detector.
- Detection distance: 100mm.
- Status display LED.
- Operating voltage: 24V.
Electrical end of stroke
PN4042
- Includes roller-driven end of stroke with switchable electric contact.
Benchtop PLC module
PN4143-XX-XX*:
Benchtop PLC module. Available for different PLC brands:
- Alpha2 AL2-24MR-D (15 inputs and 9 outputs to relay).
- Siemens S7-1200 (8 digital inputs, 6 digital outputs to relay and 2 analogue inputs).
- Allen Bradley Micro800 (10 digital inputs, 7 digital outputs to relay, 2 analogue inputs and 1 analogue output).
Includes:
- All the inputs and outputs are accessible by female quick connection sockets for cables with 4 mm safety terminals.
- Simulation of analogue and digital inputs by potentiometers and switches.
- 24Vdc power supply.
- LED output activation indicator.
- Power supply: 100-240Vac
- Built-in power cable.
- _Programming tools not included. Consult for other PLC brands._
_*Configurable part number. More information: How To Order or Product configurator._
Benchtop HMI module - Siemens KTP-700
PN4441
- Benchtop module or for panel which includes a Siemens KTP700 Basic HMI
- Screen: 7 inch TFT display.
- Resolution: 800 x 480 pixel (horizontal x vertical).
- Ports: 1 USB & 1 Ethernet.

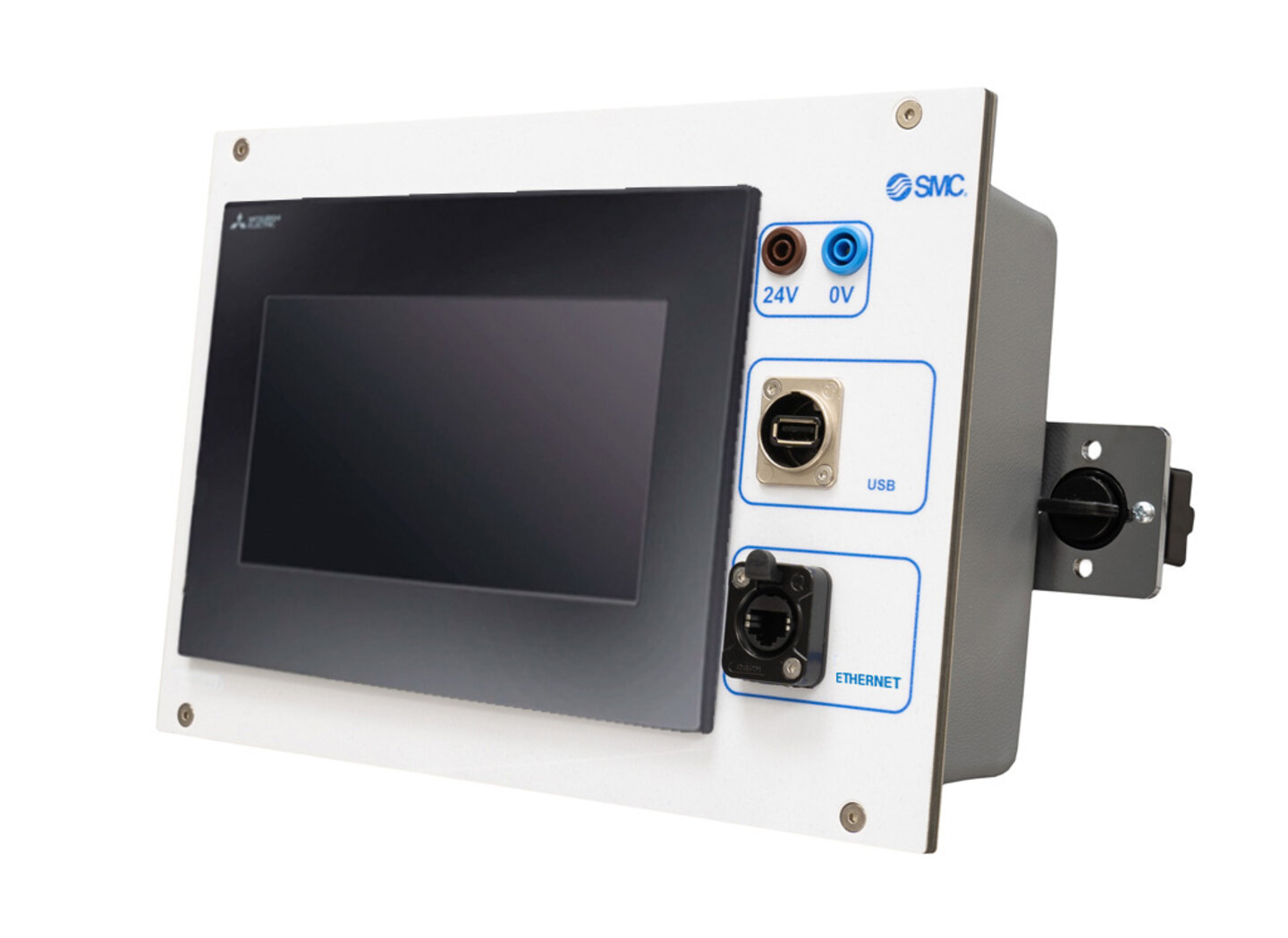

Benchtop HMI module - Mitsubishi GOT SIMPLE GS21
PN4442
- Benchtop module or for panel which includes a HMI Mitsubishi GOT SIMPLE GS21.
- Screen: 7 inch TFT display.
- Resolution: 800 x 480 pixel (horizontal x vertical).
- Ports: 1 USB & 1 Ethernet.
