MAP-202-IoT: Vacuum-held handling device with two shafts with IoT.

The MAP-202-IoT is a unit designed to offer a comprehensive training experience in automation and mechatronics which also integrates 4.0 technologies present in today’s productive environments. This version includes capabilities focused on connectivity and advanced monitoring, making it possible to work with concepts specific to current production environments and expand the use of IoT technologies in system maintenance and operation. **DIGITALISATION**: A industrial mini PC is included in the system with an augmented reality server for real time visualisation of machine variables, as well as a software application developed in Node-RED that communicates with the unit via OPC UA. This web application allows PREVENTIVE MAINTENANCE functions to be carried out on the three pneumatic actuators based on information from the solenoid valve block. Main functions: - **Cycle counting**: Individual monitoring of the number of cycles in three solenoid valves. - **End of service life**: Configuration of a setpoint to simulate when each solenoid valve should be replaced. - **Forcing of the solenoid valves** that control the actuators.
Two-axis vacuum handling manipulator MAP-202-IoT for automation, mechatronics and Industry 4.0 training

MAP-205 SE I4.0 - Assembly Minicell 4.0: connect, automate, evolve.

In addition to the most common technologies in mechatronics and automated systems—such as pneumatics, advanced electro-pneumatics, vacuum technology, and sensors—the MAP-205 SE I4.0 system also integrates Industry 4.0 technologies currently present in modern production systems, including smart devices, system access via software platforms, and augmented reality, among others. It includes a software application developed in Node-RED, which communicates with the equipment via OPC-UA. This application is installed and run on a imdustrial mini PC included in the system, offering the following functionalities: - Monitoring of compressed air consumption. - Preventive maintenance of the solenoid valve block. - IO-Link beacon configuration.
MAP-205 SE I4.0 automated assembly system for mechatronics and Industry 4.0 training

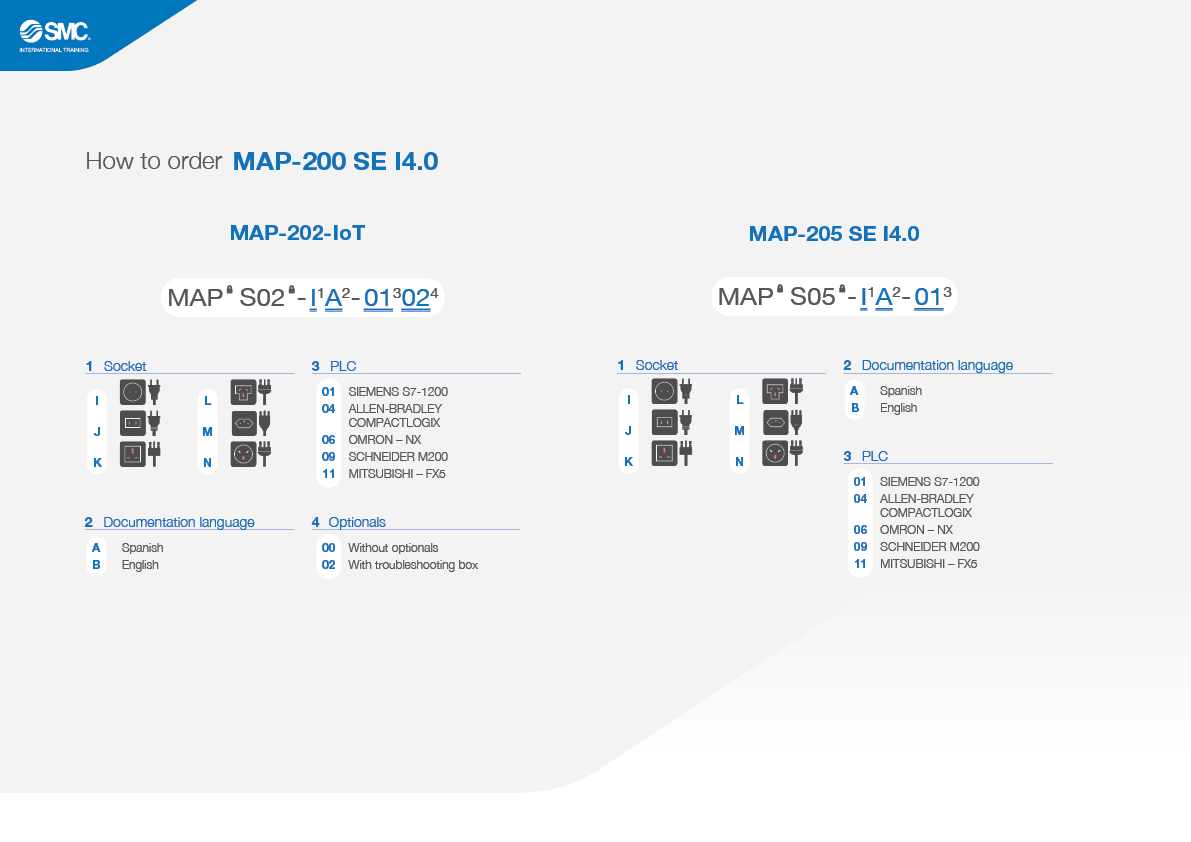

How to order

Choose the option that best suits your needs and find out how to set up your references.

How to set up a reference

Product configurator

Do you want to request a quote on this product and get the specifications and technical descriptions of it? Configure your ideal system through our product configurator and get all the related information in just a couple of clicks.
Configure your system Go back to MAP-200 SE I4.0
