 AIR PREPARATION



SAI2090 - Air cleaning unit

SAI2090 - Air cleaning unit



- Consisting of a filter, a regulator, and a 1 MPa pressure gauge.



- 5µm filtering.



- Possibility of vertical and horizontal positioning.



- Input and output prepared for 6mm tube.



Symbology - Air cleaning unit

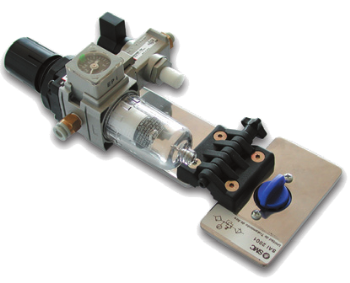

SAI2091 - Air cleaning unit with 3/2 distribution valve

SAI2091 - Air cleaning unit with 3/2 distribution valve



- Consisting of a filter, a regulator, and a 1 MPa pressure gauge.



- 5µm filtering.



- Includes a 3/2 discharge valve with silencer for connection and disconnection of the rest of the circuit.



- Option of vertical and horizontal positioning.



Symbology - Air cleaning unit with 3/2 distribution valve



SAI2001 - Air cleaning unit with lubricator

SAI2001 - Air cleaning unit with lubricator





- Consisting of filter, regulator, lubricator and 1 MPa pressure gauge.



- 5µm filtering.



- Posibilidad Possibility of vertical and horizontal positioning.



- Input for a 6mm tube, output for a 4 mm tube.



Symbology - Air cleaning unit with lubricator



SAI2092 - Distribution block

SAI2092 - Distribution block



- Includes 8-outlet distribution block, one-touch fittings and non-return system.



- Direct coupling to the air cleaning unit.



 Symbology - Distribution block



SAI2002 - Distribution block with 3/2 distribution valve

SAI2002 - Distribution block with 3/2 distribution valve



- 8-outlet distribution block, one-touch fittings and non-return system.



- Includes slide discharge valve.



- Direct coupling to the air cleaning unit.



- Input for a 6mm tube, output for a 4 mm tube.



 Symbology - Distribution block with 3/2 distribution valve



SAI2005 - Pressure regulator with pressure gauge

 SAI2005 - Pressure regulator with pressure gauge



- Operating pressure 0-0,1 MPa.



- Includes double-scale pressure gauge (Mpa and psi).



Symbology - Pressure regulator with pressure gauge



SAI2004 - 1 MPa pressure gauge

 SAI2004 - 1 MPa pressure gauge



- With double-entry and double scale (0-1 MPa/ 0-140psi).



Symbology - 1 MPa pressure gauge


SAI2093 - 0,25MPa pressure gauge

 SAI2093 - 0,25MPa pressure gauge



- With double entry and a double scale (0-0,25MPa/ 0-35psi).



Symbology - 0,25MPa pressure gauge



SAI2094 - Vacuum pressure gauge

 SAI2094 - Vacuum pressure gauge



- Pressure range (-0,1 MPa - 0MPa).



- Double scale.



Symbology - Vacuum pressure gauge



SAI2032 - Soft start-up valve

 SAI2032 - Soft start-up valve



- Includes a valve which allows pressure to be implemented gradually.



Symbology - Soft start-up valve
