Assembly panels and components
PNEUTRAINER-400 provides a diverse range of components for addressing both pneumatic and electropneumatic systems, ensuring comprehensive and versatile training in fluid and energy control systems.

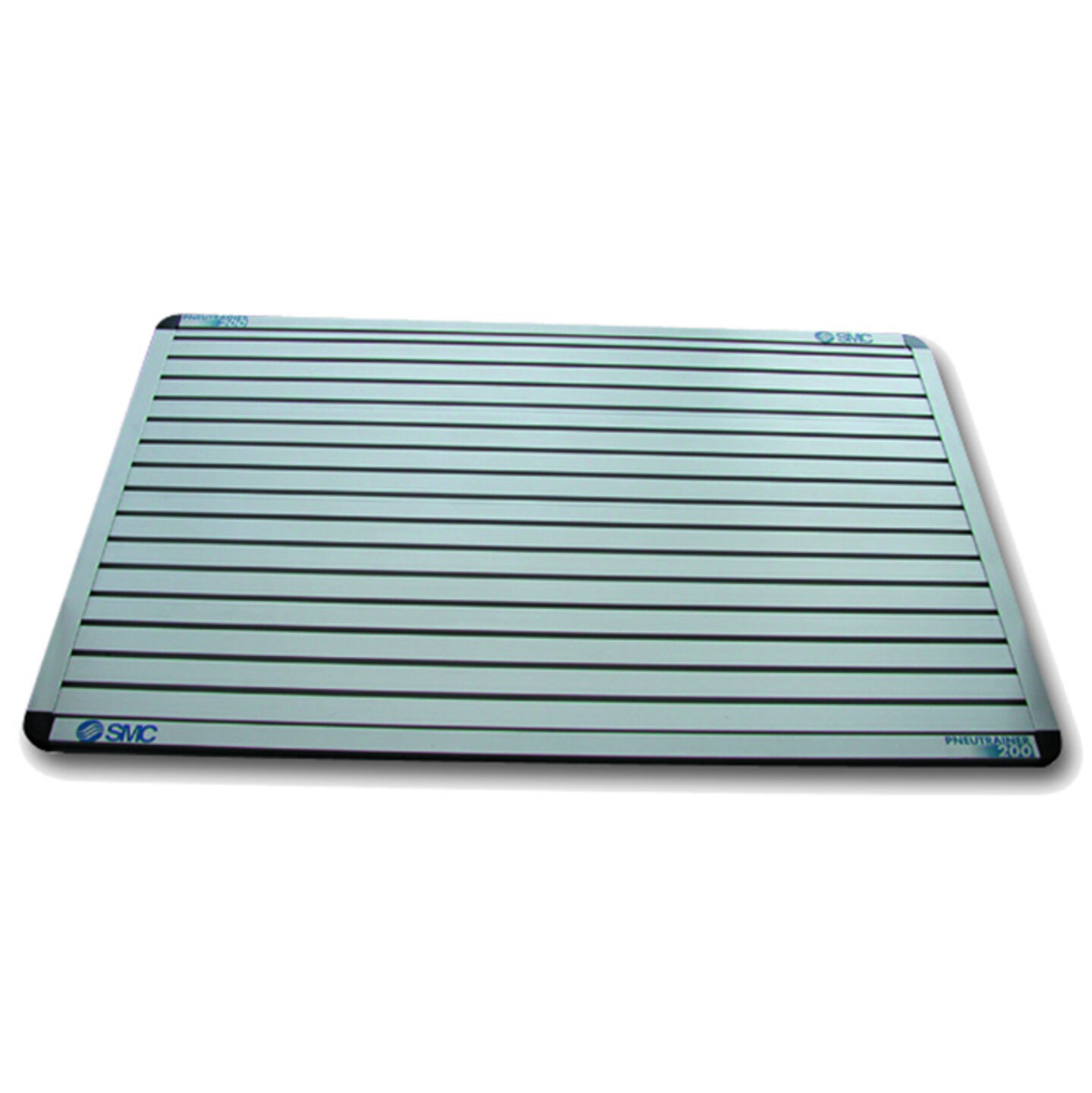

Horizontal mounting panel
PN4080
- External dimensions: 700x560x25mm*. It is supported on non-slip legs. Can be converted into a vertical panel using a support bracket set (see PN4028).
*Other dimensions available on request.

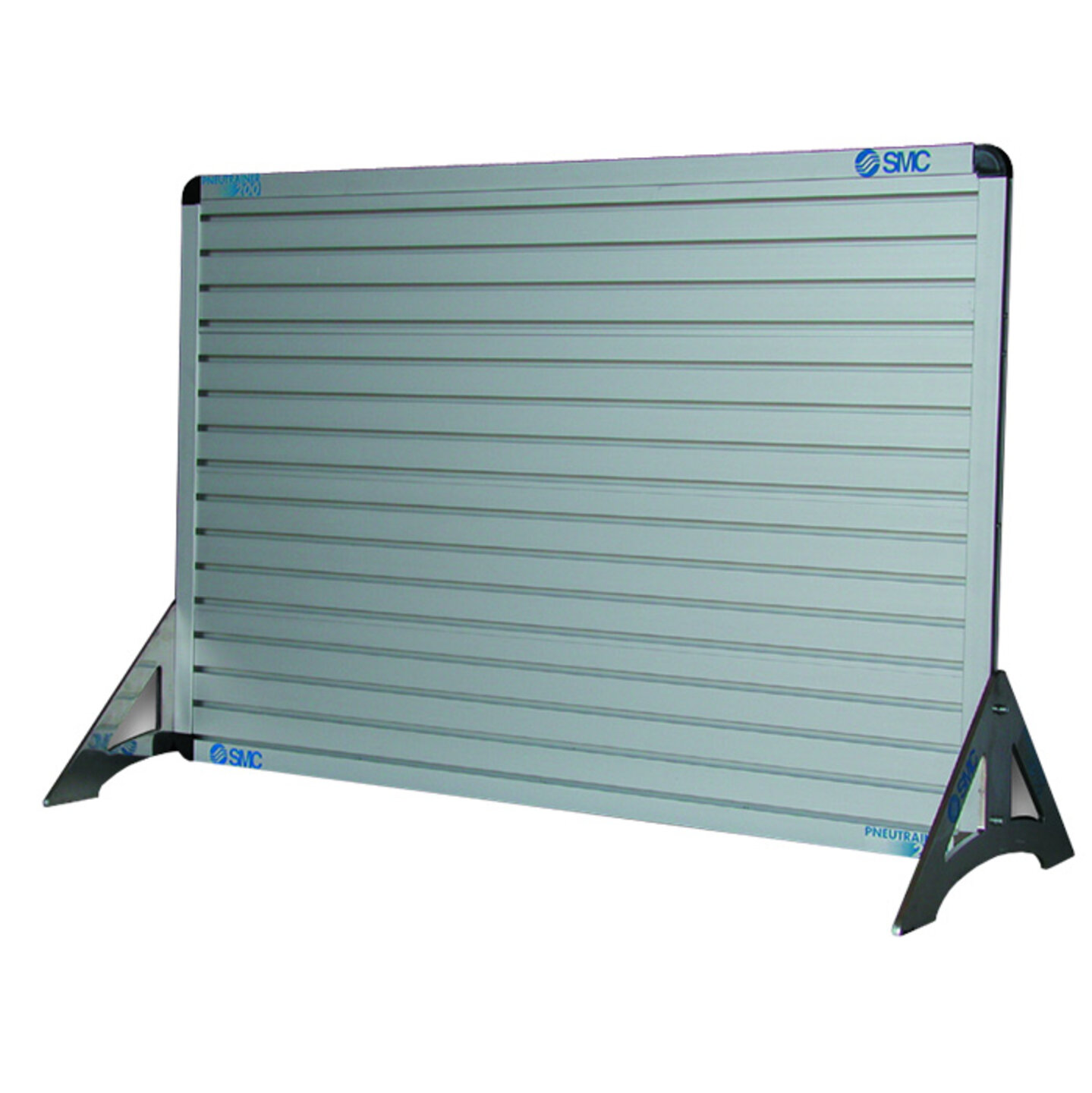

Vertical mounting panel for 2 work positions
PN4064
- External dimensions: 1150x760x410mm*. Allows work to be carried out on both sides, optimizing investment and space.
*Other dimensions available on request.

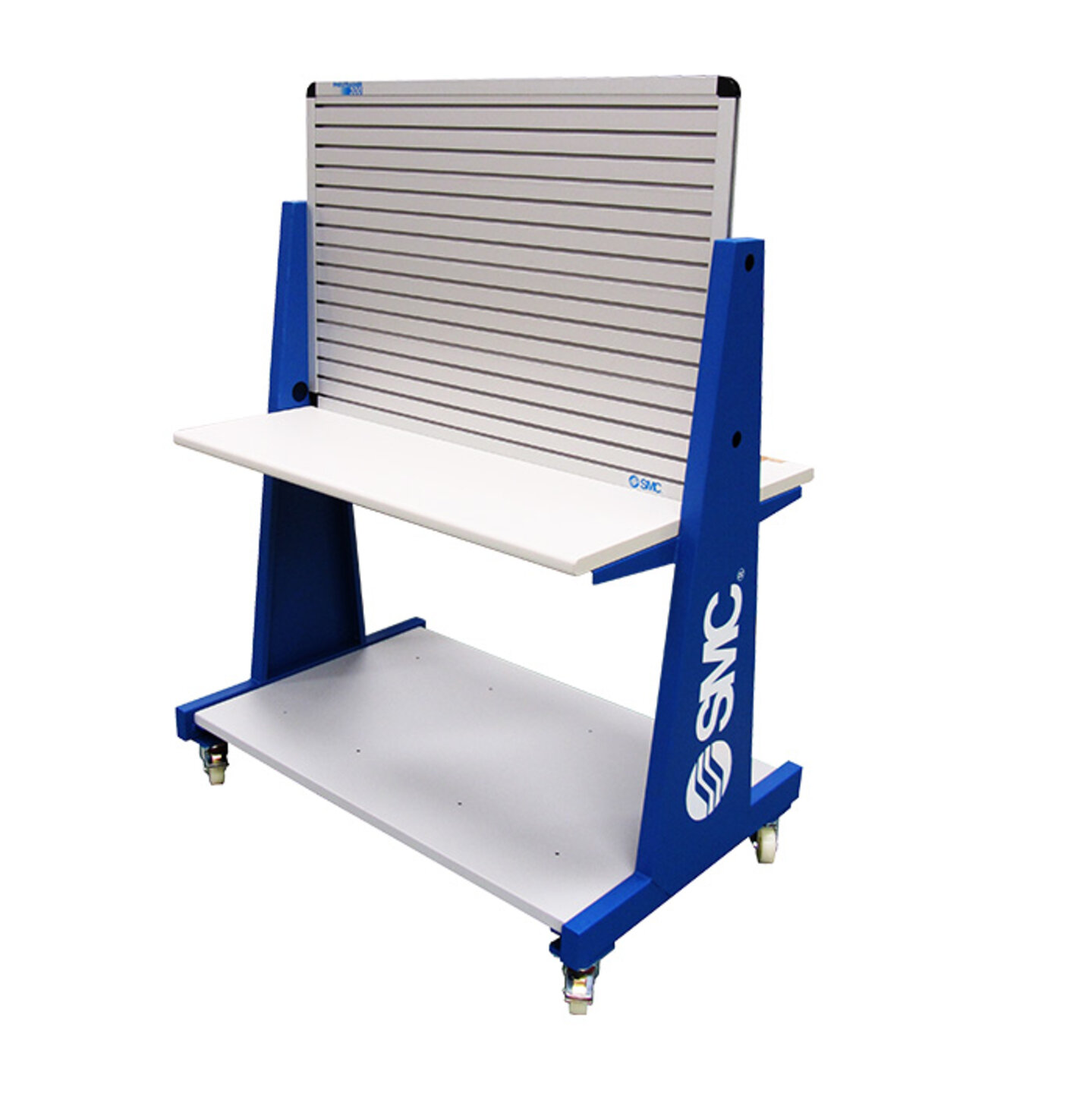

Rolling table with twin-post
PN4065
- The entire rolling frame system may be disassembled for transportation.
- The vertical panel means you can work on both sides.
- Panel dimensions: 1150x760x25mm.
- It has a laminated top for horizontal work, 1200x800mm.
- The lower section features a 1200x600mm metal shelf supporting the component storage drawers, the silent compressor, etc.
- 4 high-load wheel support, 2 with brake and 2 without.
- Total dimensions: 1200x800x1700mm.

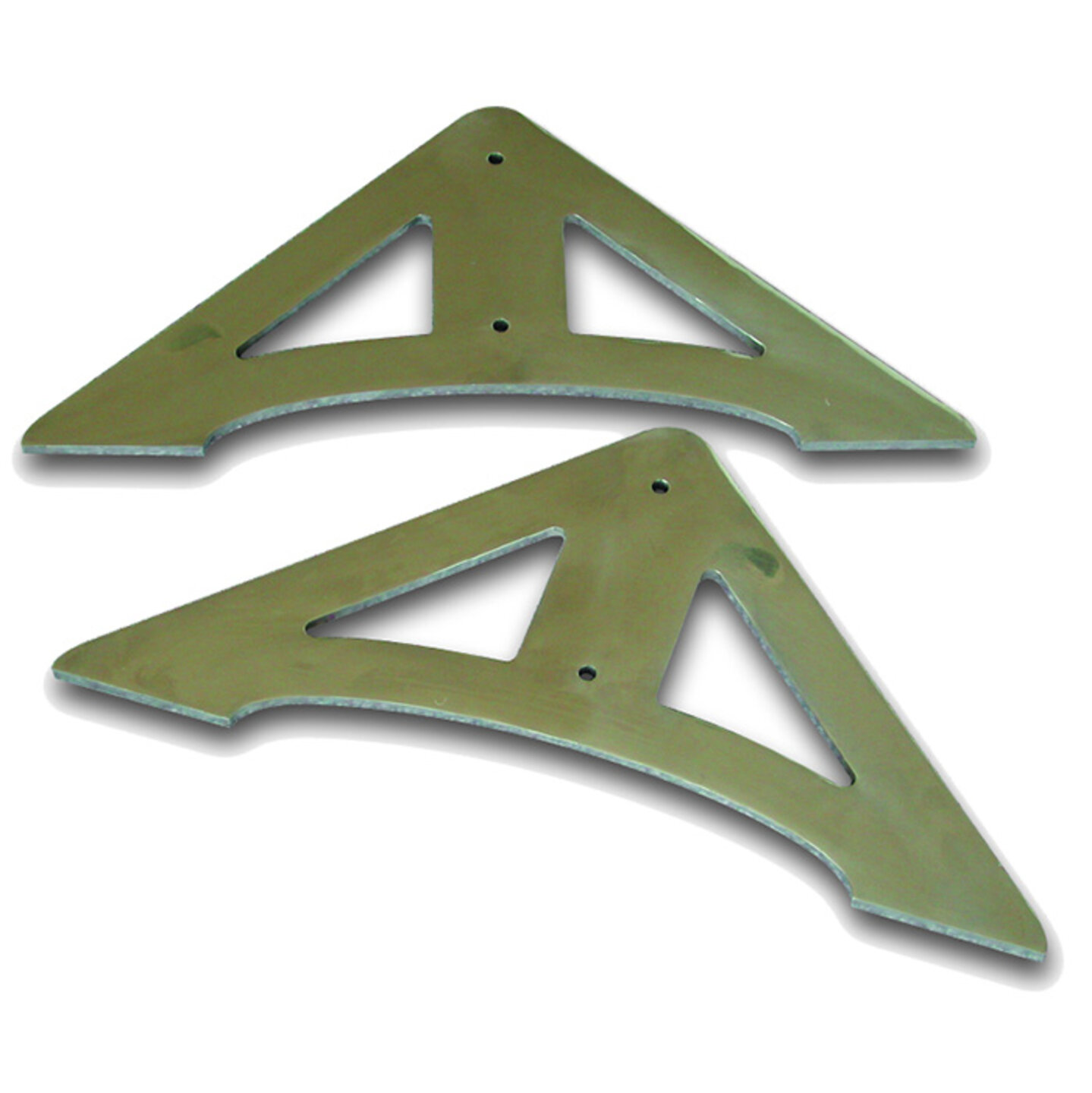

Support bracket set
PN4028
- With non-slip legs, allowing the user to convert the horizontal mounting panel into a vertical panel.

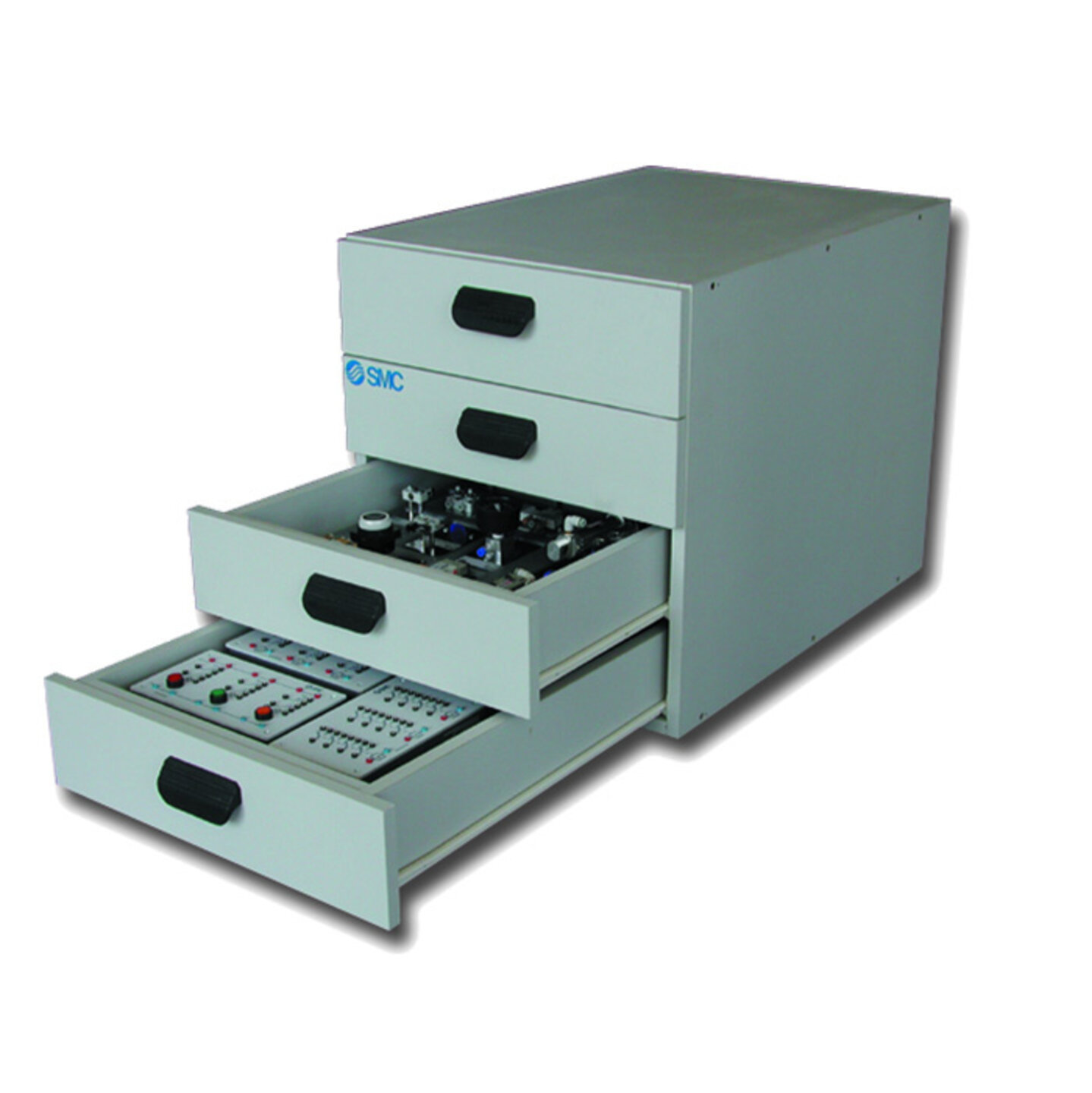

Storage drawer blocks for rolling table - without lock
PN4066
- Without lock
- Compact 4-drawer block with slide guides to house the component trays.
- External dimensions: 500x725x650mm.

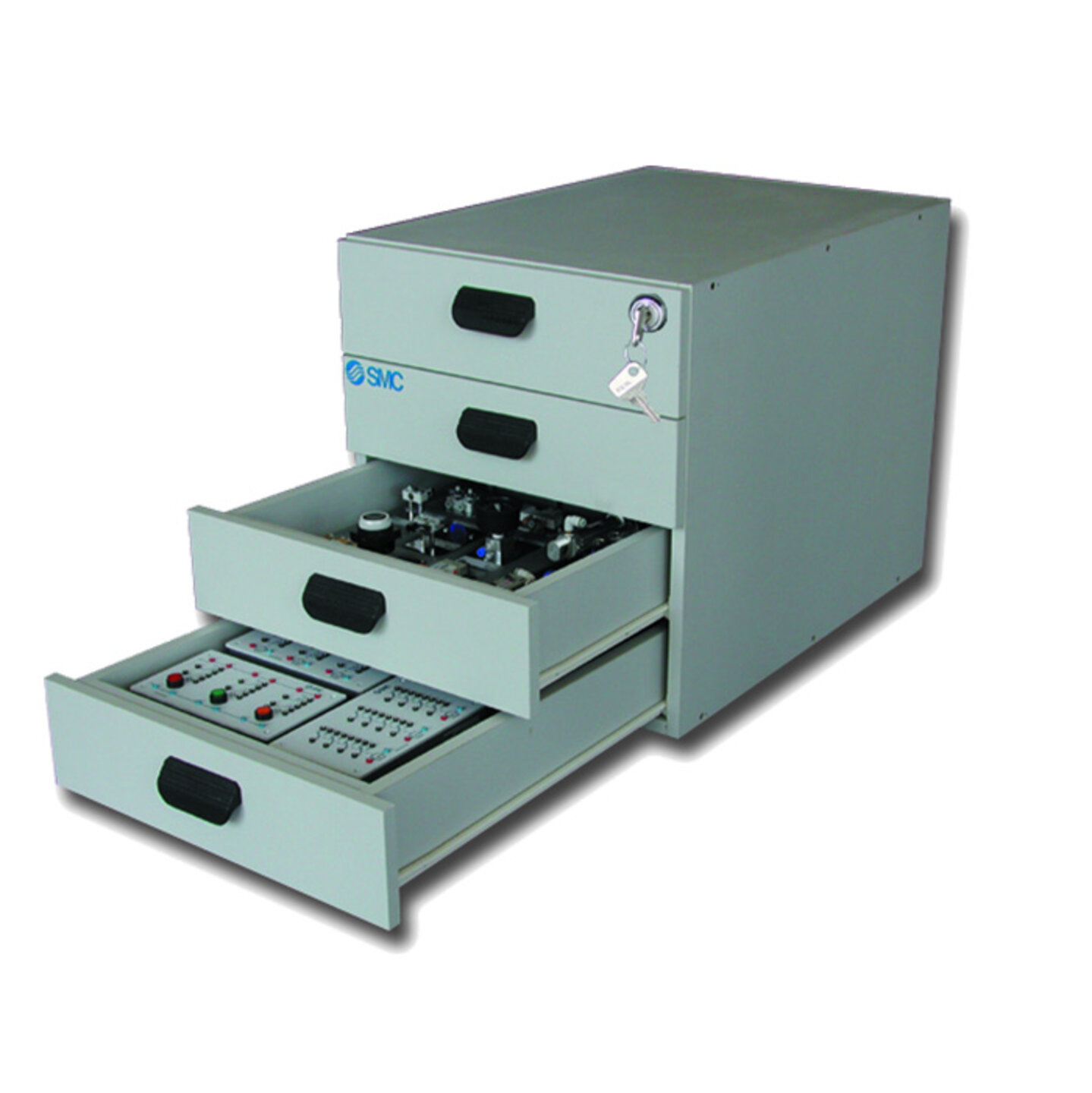

Storage drawer blocks for rolling table - with lock
PN4074
- With lock
- Compact 4-drawer block with slide guides to house the component trays.
- External dimensions: 500x725x650mm.

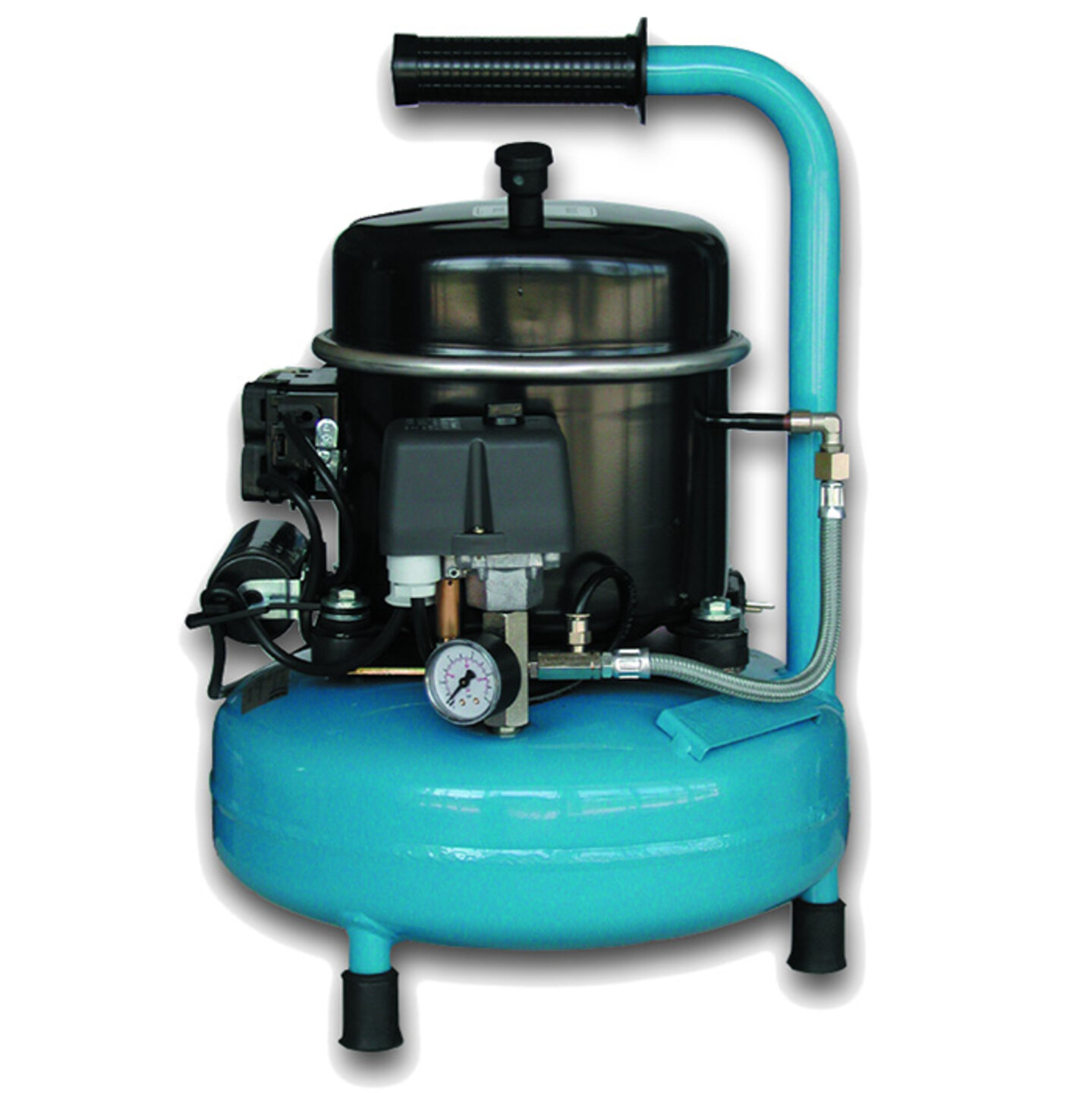

Silent compressor. Available with 230VAC and 110VAC power supply
PN4088-XX*
- Model ICO-P50.
- Two-phase power supply.
- Flow rate: 50l/min.
- Maximum pressure: 0,8MPa.
- Low noise level: 40dB.
- Reservoir: 9 l.
- Weight: 21kg.
_Other models available on request._
_*Configurable part number. More information: How To Order or Product configurator._

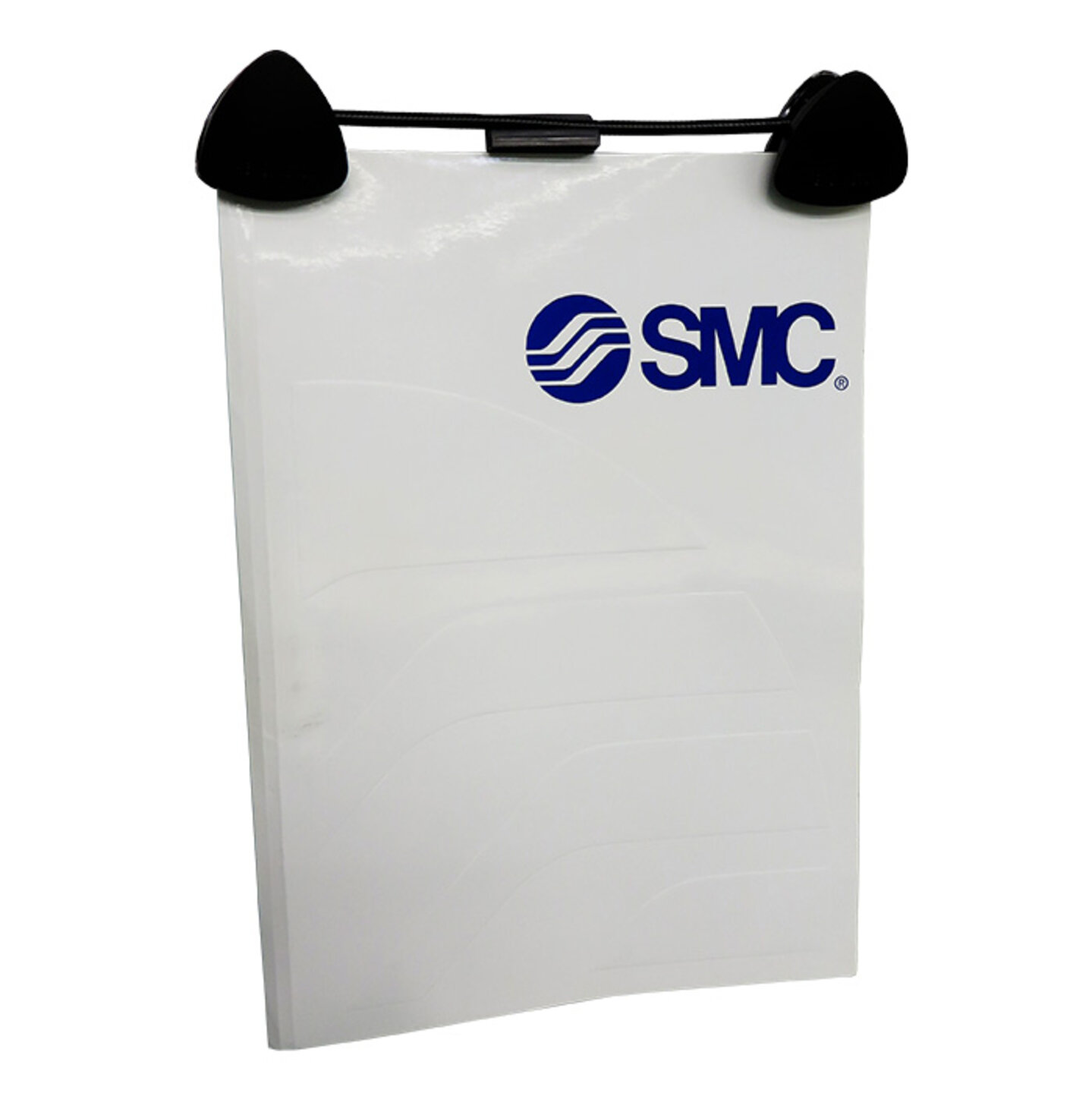

Schematic clip device
PN4068
- Allows schematics to be attached in DIN-A4 format on the panel.

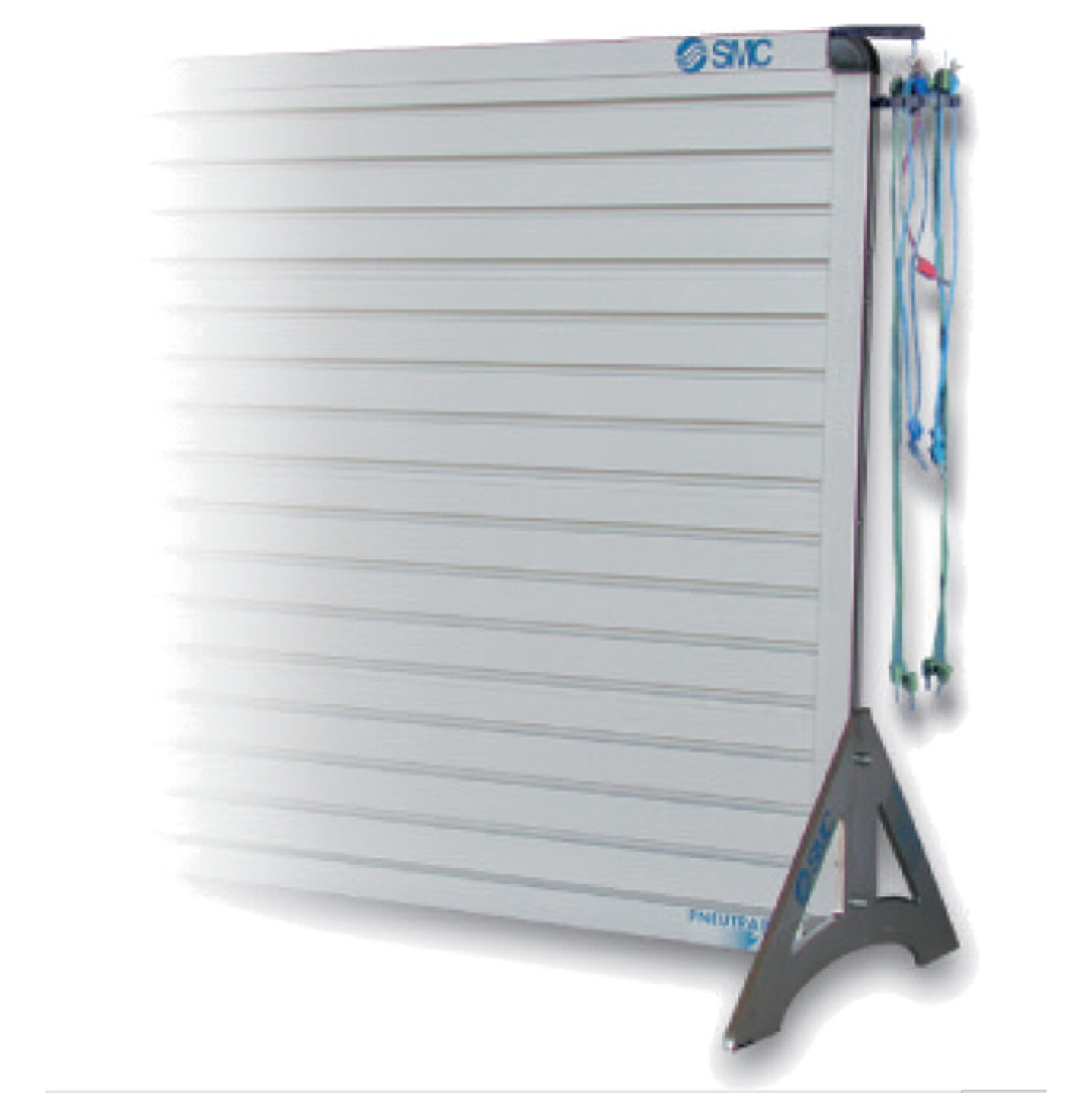

Cable holder fitting
PN4089
- This supports orderly storage of connection cables.

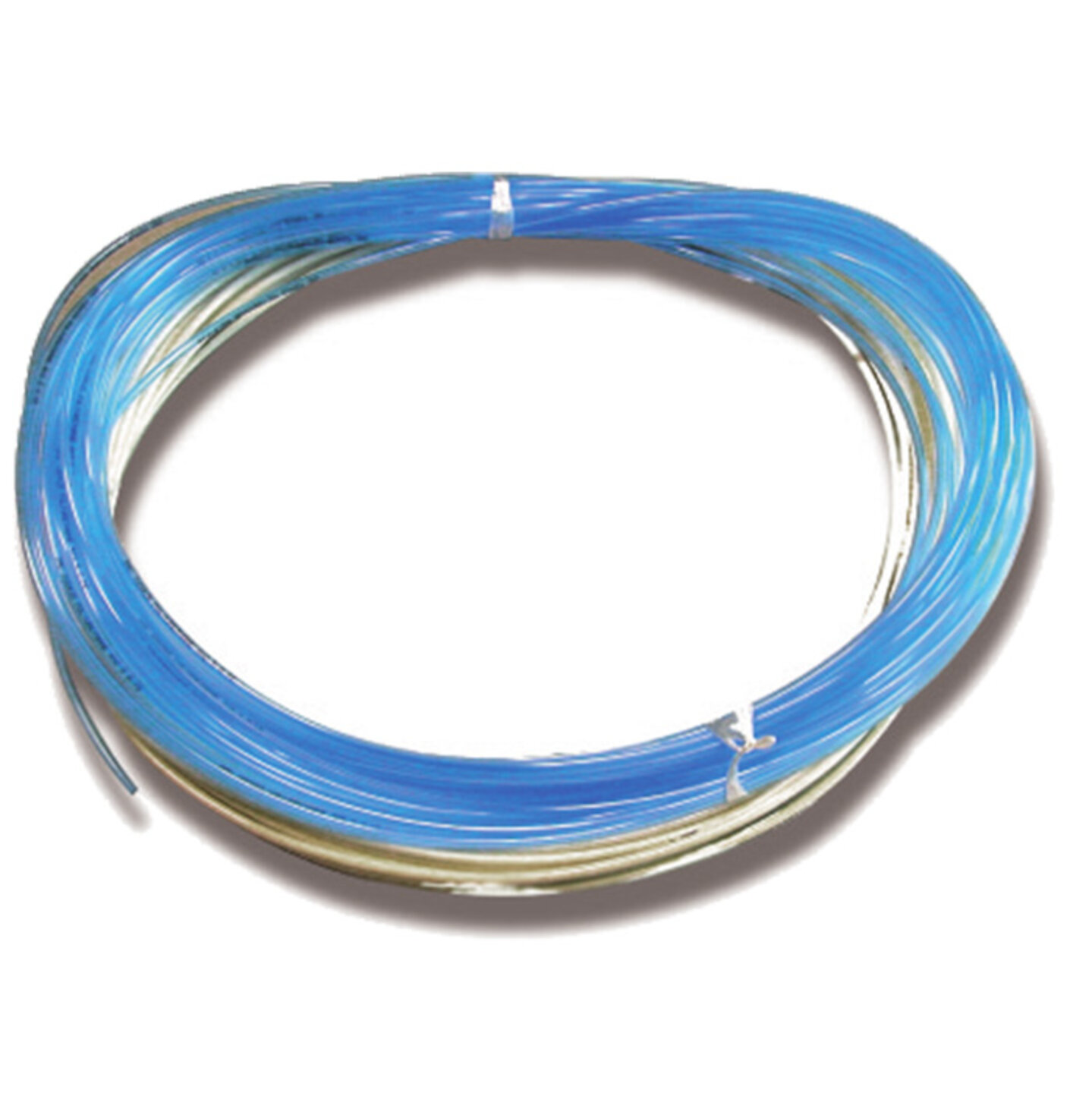

Set of 20m of blue tubing and 20m of flexible 4 mm white tubing
PN4057
- Polyurethane tube, exterior diameter 4mm, two-tone colour, for connections on pneumatic circuits.

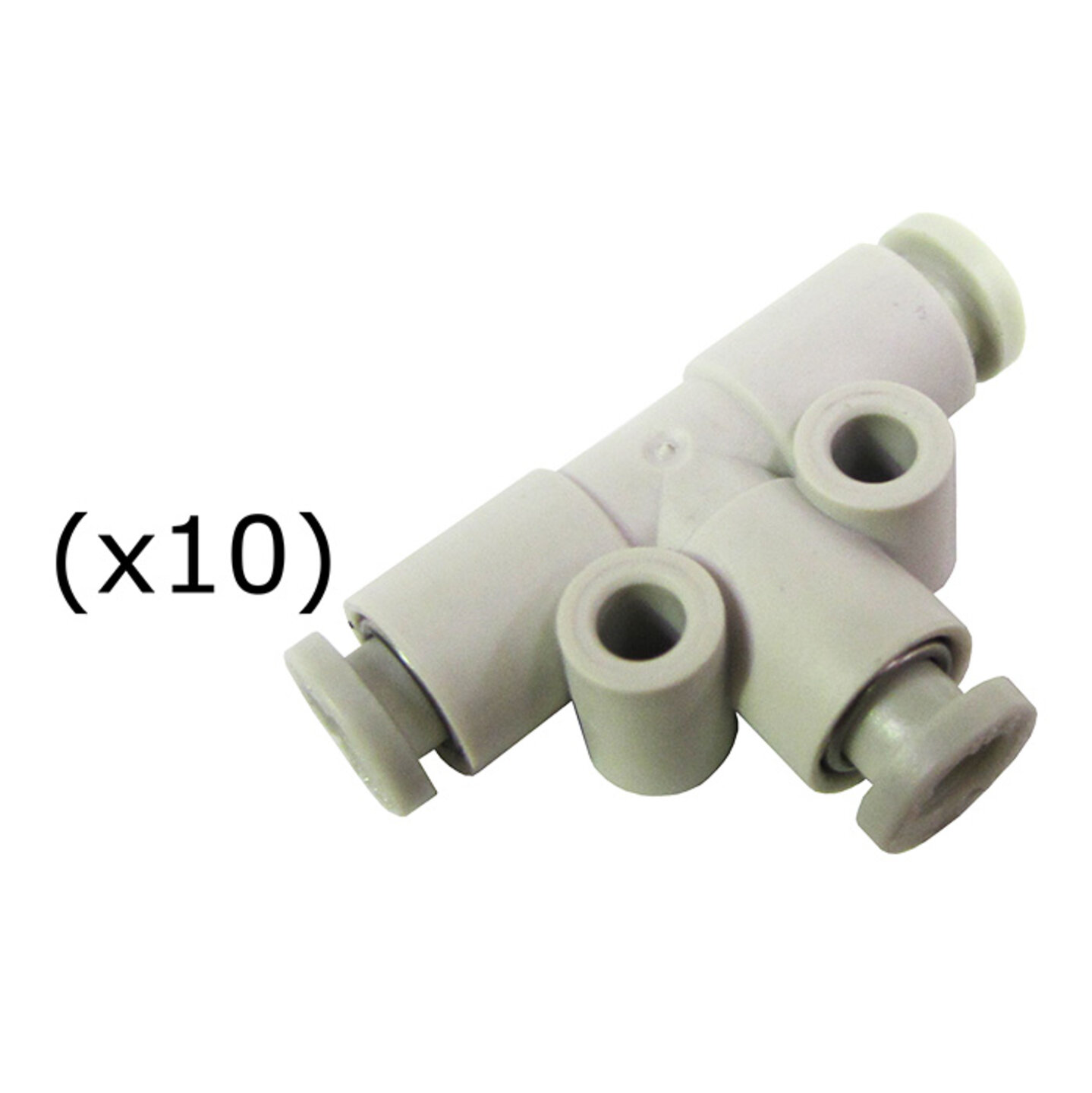

Set of 10 “T” fittings
PN4058
- Set of 10 one-touch fittings for 4mm tubes.

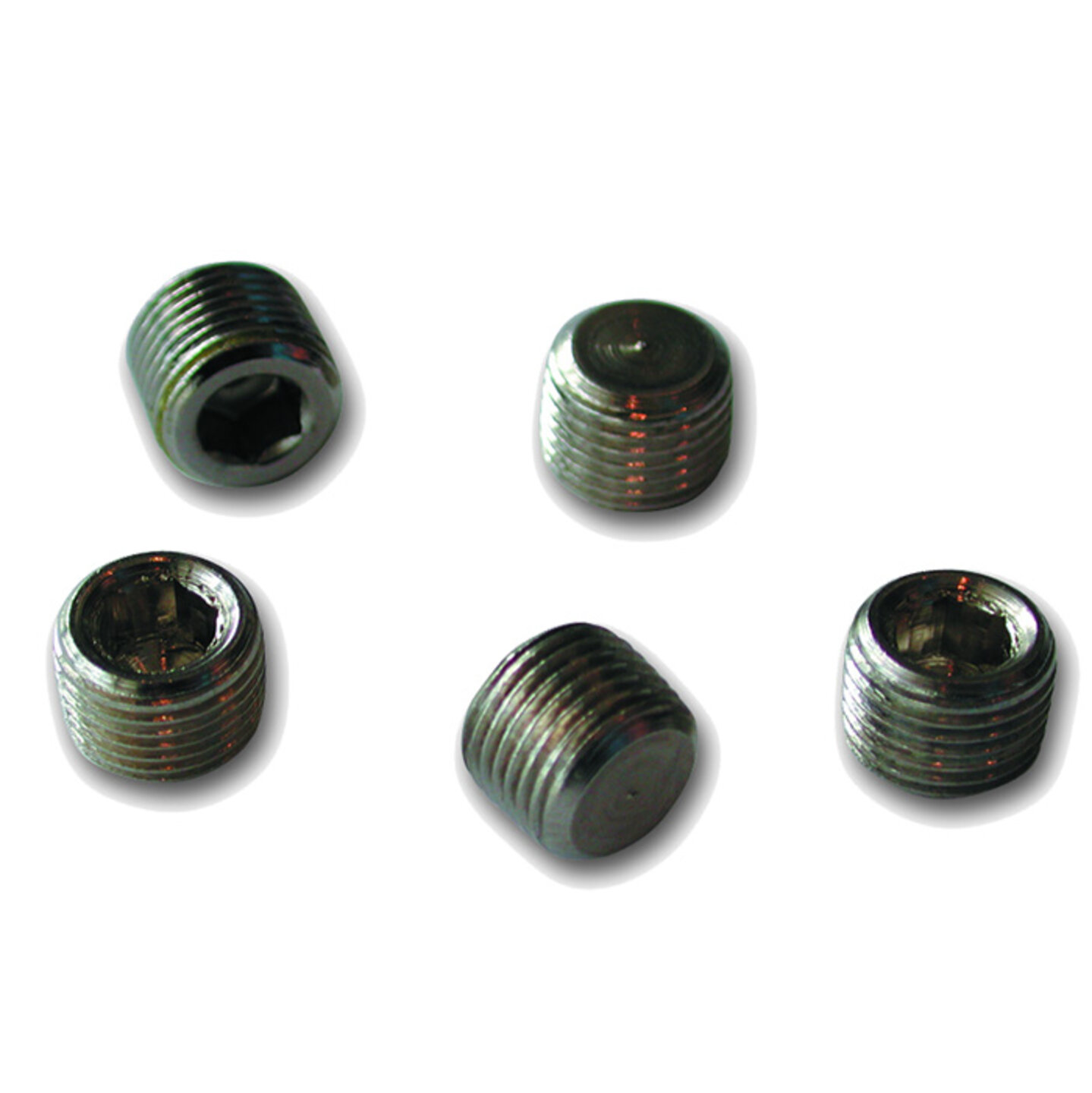

Set of 5 plugs, 1/8”
PN4059
- Includes a 5-plug set for pressure outputs of 1/8”.

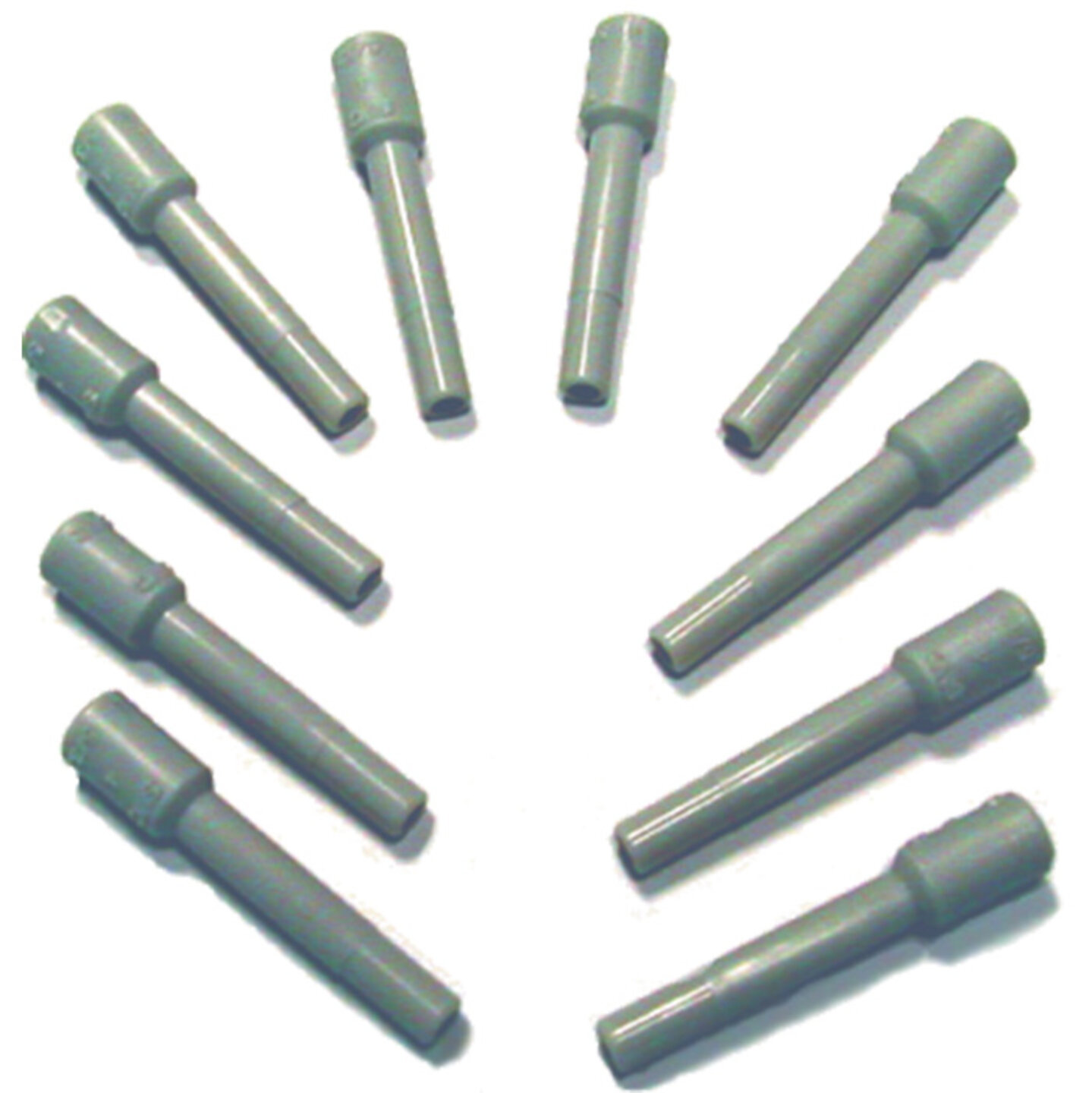

Set of 10 x 4mm plastic plugs
PN4060
- Tool for plugging pressure outlets in 4mm tube.

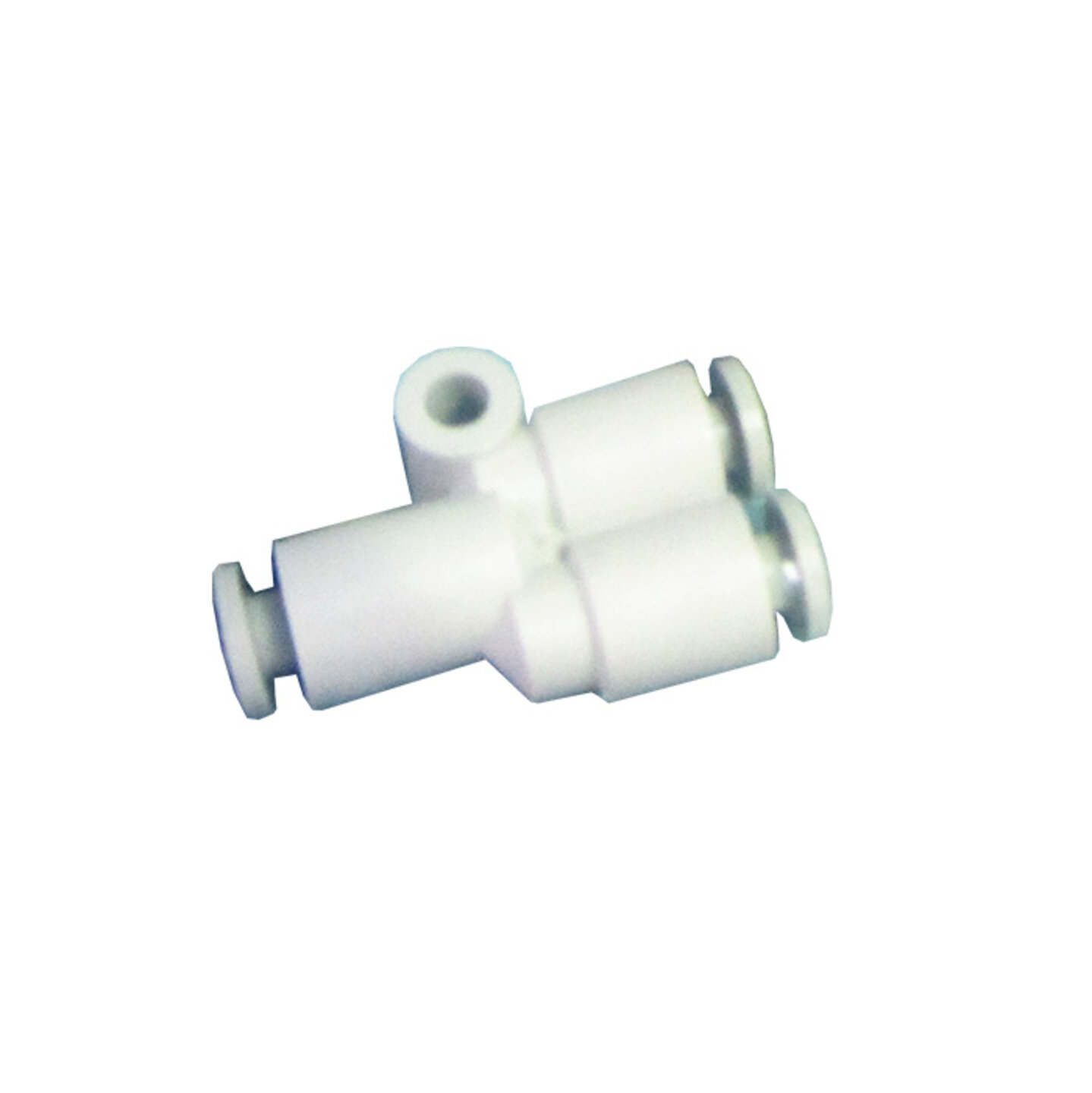

Set of 10 “Y” fittings
PN4132
- Set of 10 one-touch fittings for 4mm tubes.

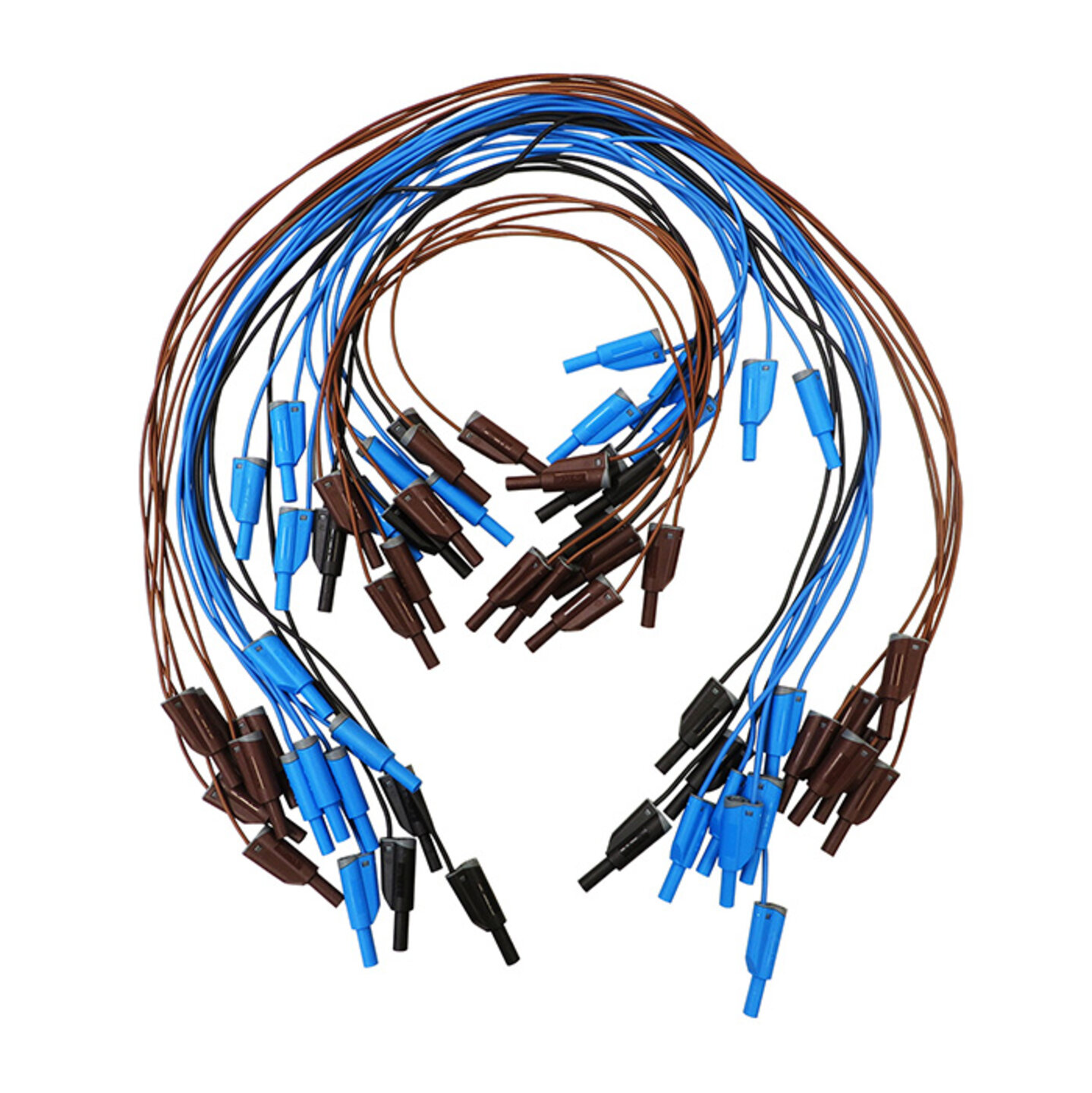

Set of connection cables
PN4055
Includes 30 safety quick connecting cable of 4 mm in different colours and lengths:
- 50 cm cables: brown (x6), blue (x6) and black (x3).
- 100 cm cables: brown (x6), blue (x6) and black (x3).

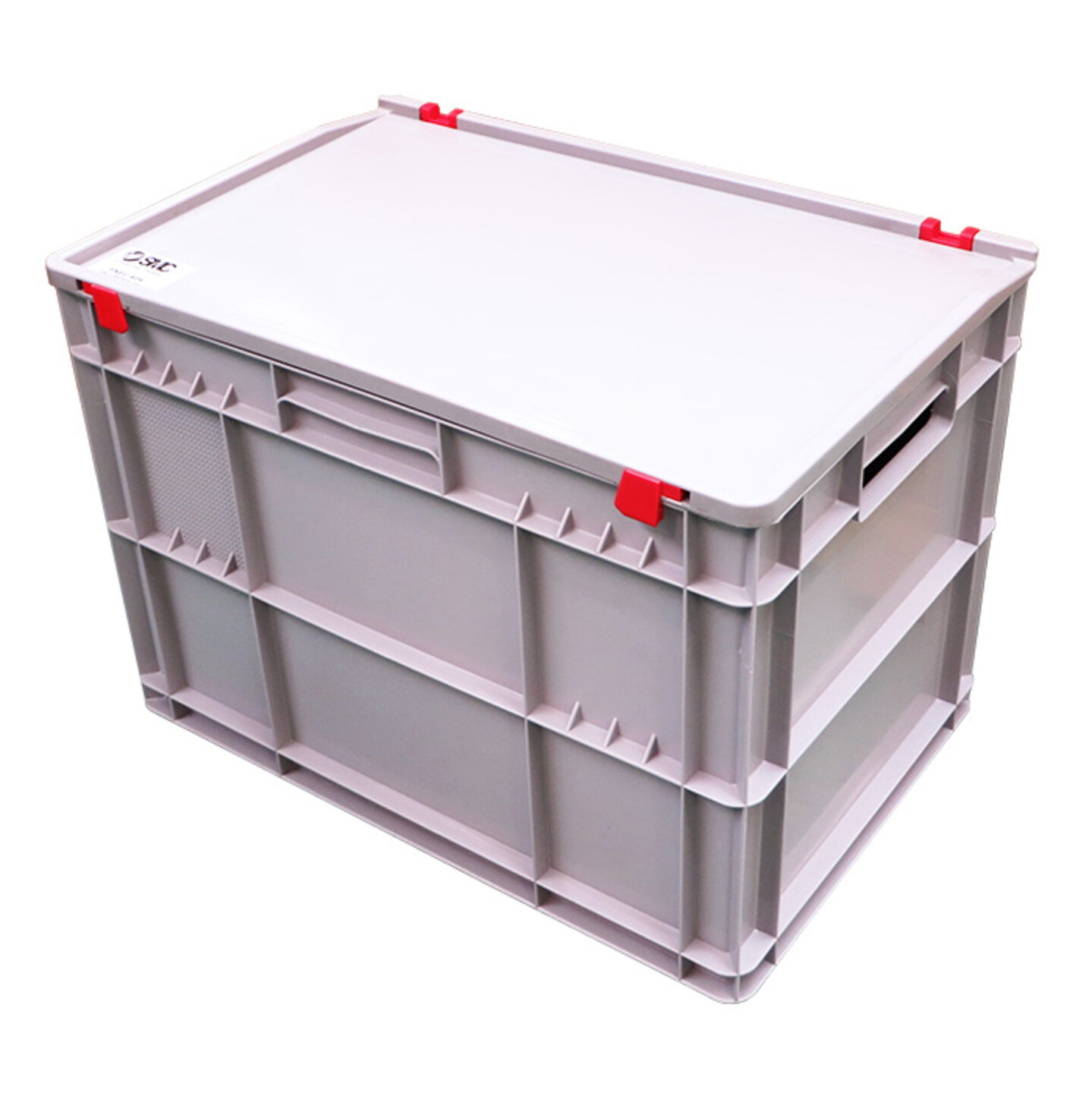

Boxes containing components for PNEU-401
PN4076
- Boxes in EUROBOX format allow orderly storage of components.
- Includes printed trays with the references and locations for the components. Incorporates component anchoring system that facilitates their distribution and control.
- Allows extension of additional trays and boxes.
Boxes containing components for PNEU-402
PN4078
- Boxes in EUROBOX format allow orderly storage of components.
- Includes printed trays with the references and locations for the components. Incorporates component anchoring system that facilitates their distribution and control.
- Allows extension of additional trays and boxes.
Boxes containing components for PNEU-403
PN4077
- Boxes in EUROBOX format allow orderly storage of components.
- Includes printed trays with the references and locations for the components. Incorporates component anchoring system that facilitates their distribution and control.
- Allows extension of additional trays and boxes.
Boxes containing components for PNEU-404
PN4079
- Boxes in EUROBOX format allow orderly storage of components.
- Includes printed trays with the references and locations for the components. Incorporates component anchoring system that facilitates their distribution and control.
- Allows extension of additional trays and boxes.

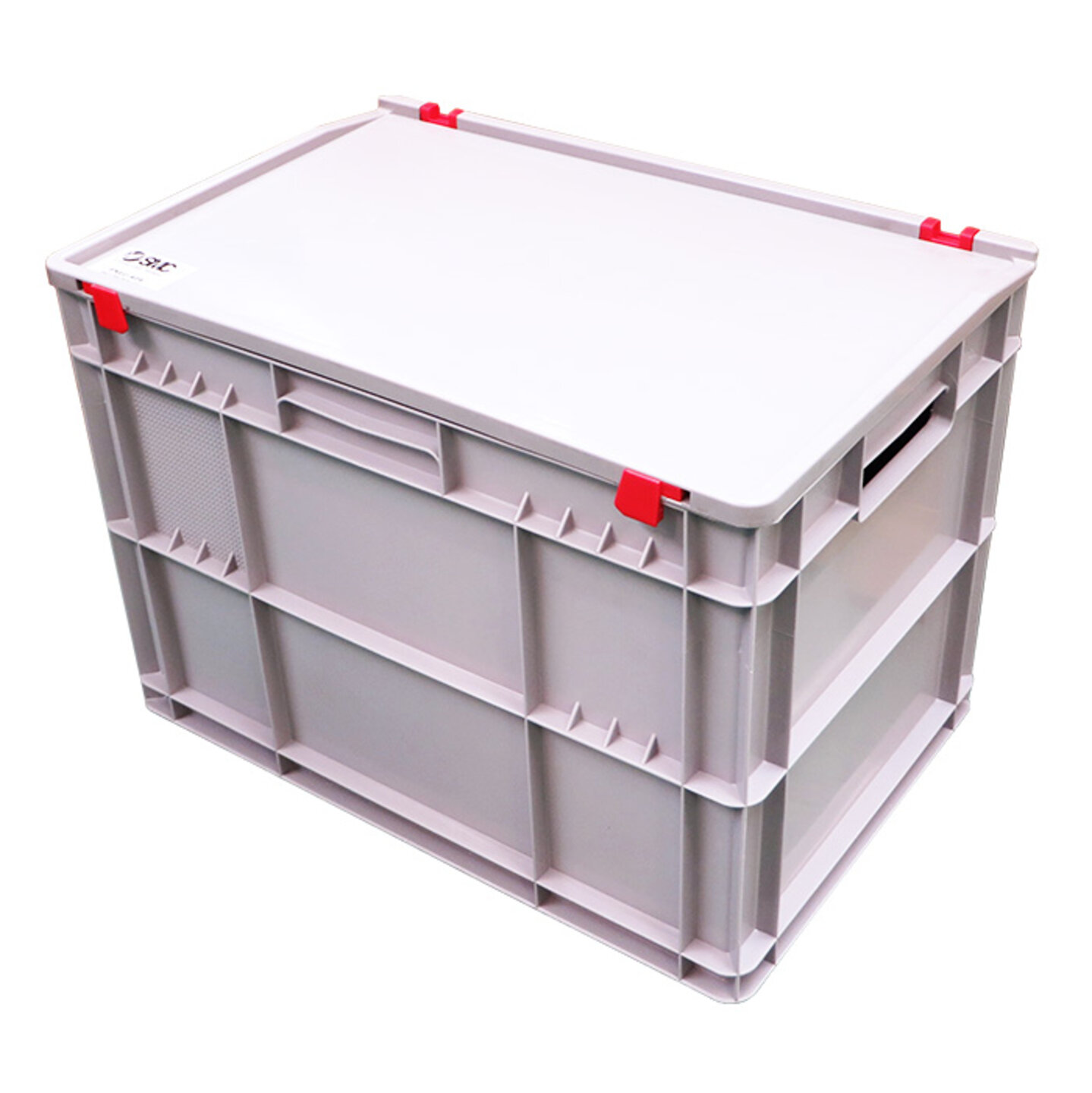

Boxes containing components for PNEU-405
PN4062
- Boxes in EUROBOX format allow orderly storage of components.
- Includes printed trays with the references and locations for the components. Incorporates component anchoring system that facilitates their distribution and control.
- Allows extension of additional trays and boxes.
Boxes containing components for PNEU-406
PN4602
- Boxes in EUROBOX format allow orderly storage of components.
- Includes printed trays with the references and locations for the components. Incorporates component anchoring system that facilitates their distribution and control.
- Allows extension of additional trays and boxes.
Trays containing components (cylinders)
PN4133

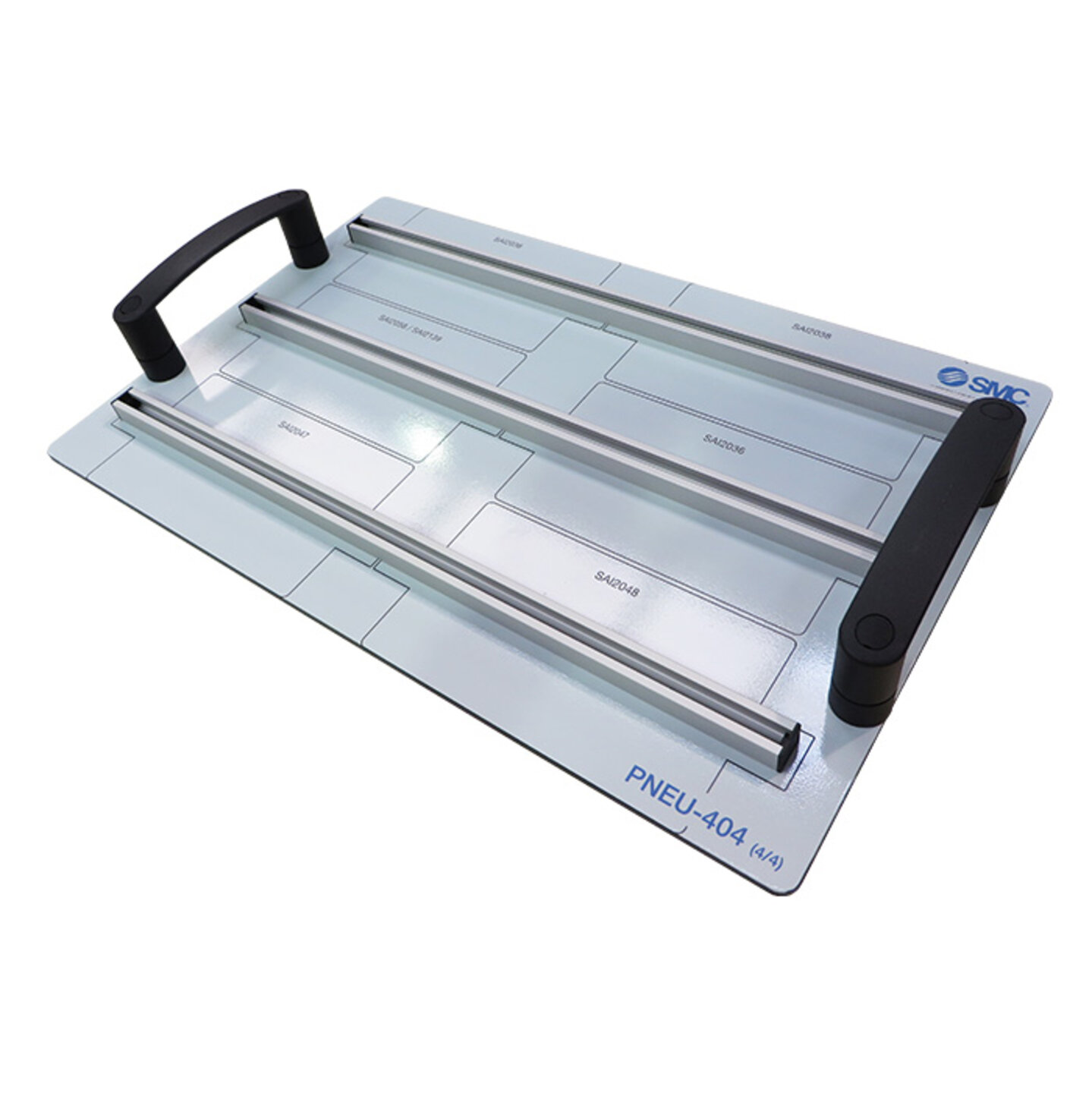

Trays containing components (pneumatics/electricity)
PN4134
Trays containing components (electric boxes)
PN4135

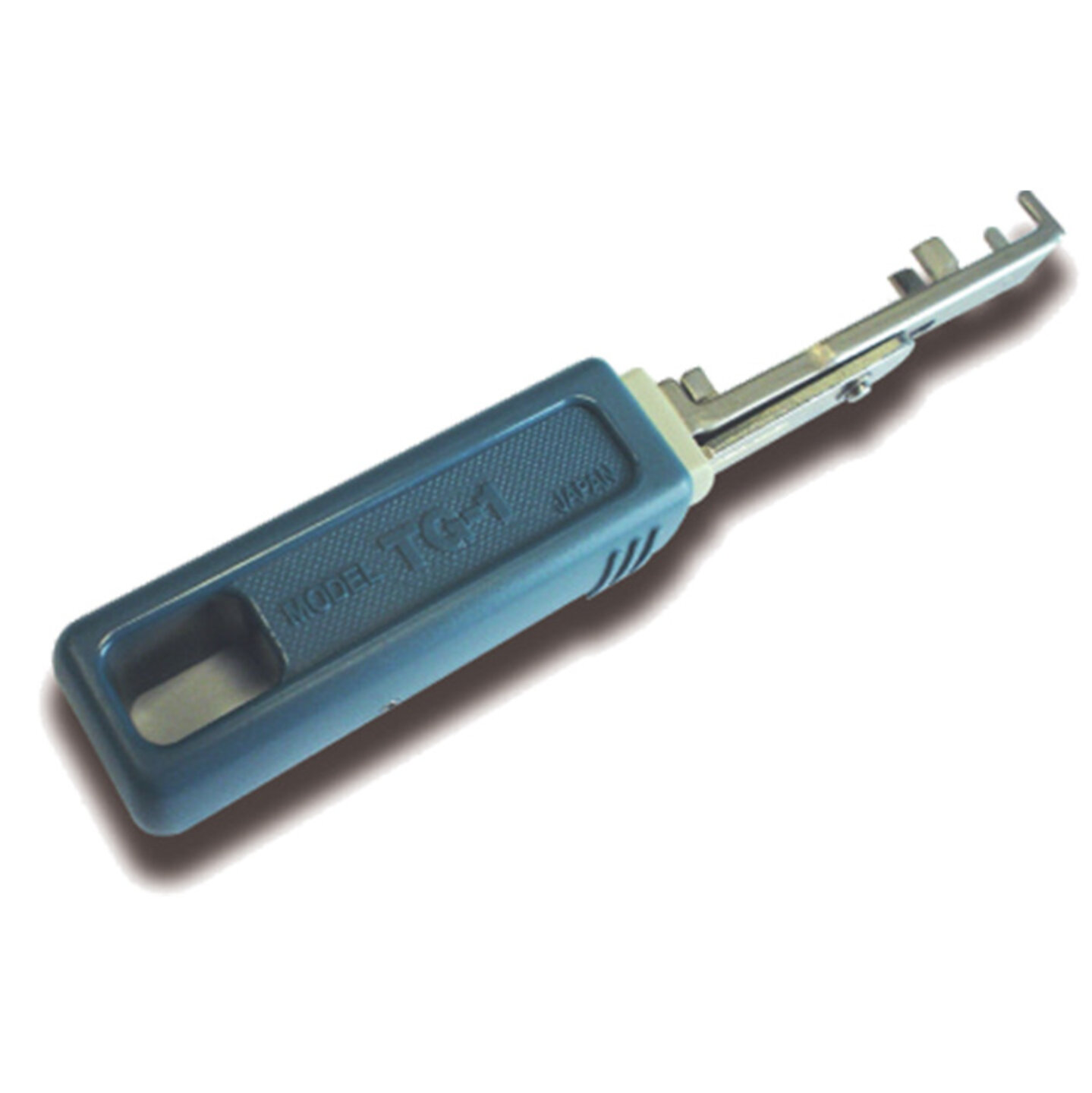

Tube-extractor
TG-1
- Tool for an easy and quick extraction of the pipe (4 and 6mm).

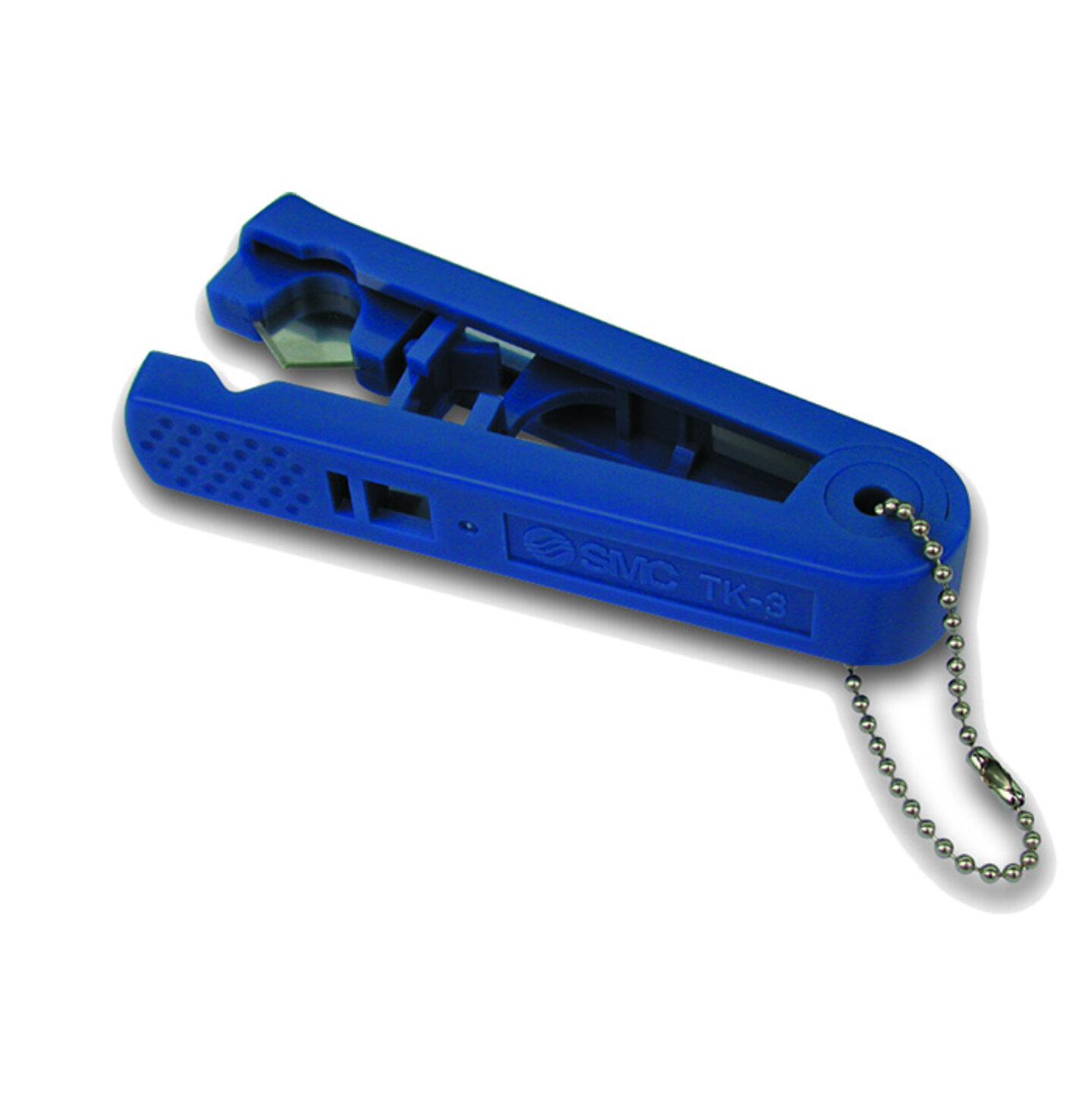

Tube-cutter
TK-3
- Tool for clean cuts, perpendicular to the length of the tube.
