Assembly Panel, Hydraulic Unit and Extras
HYDROTRAINER-200 offers an extensive selection of components to meet all your hydraulic / electrohydraulic learning needs and create your custom compositions.
Hydraulic rolling table with double face panel

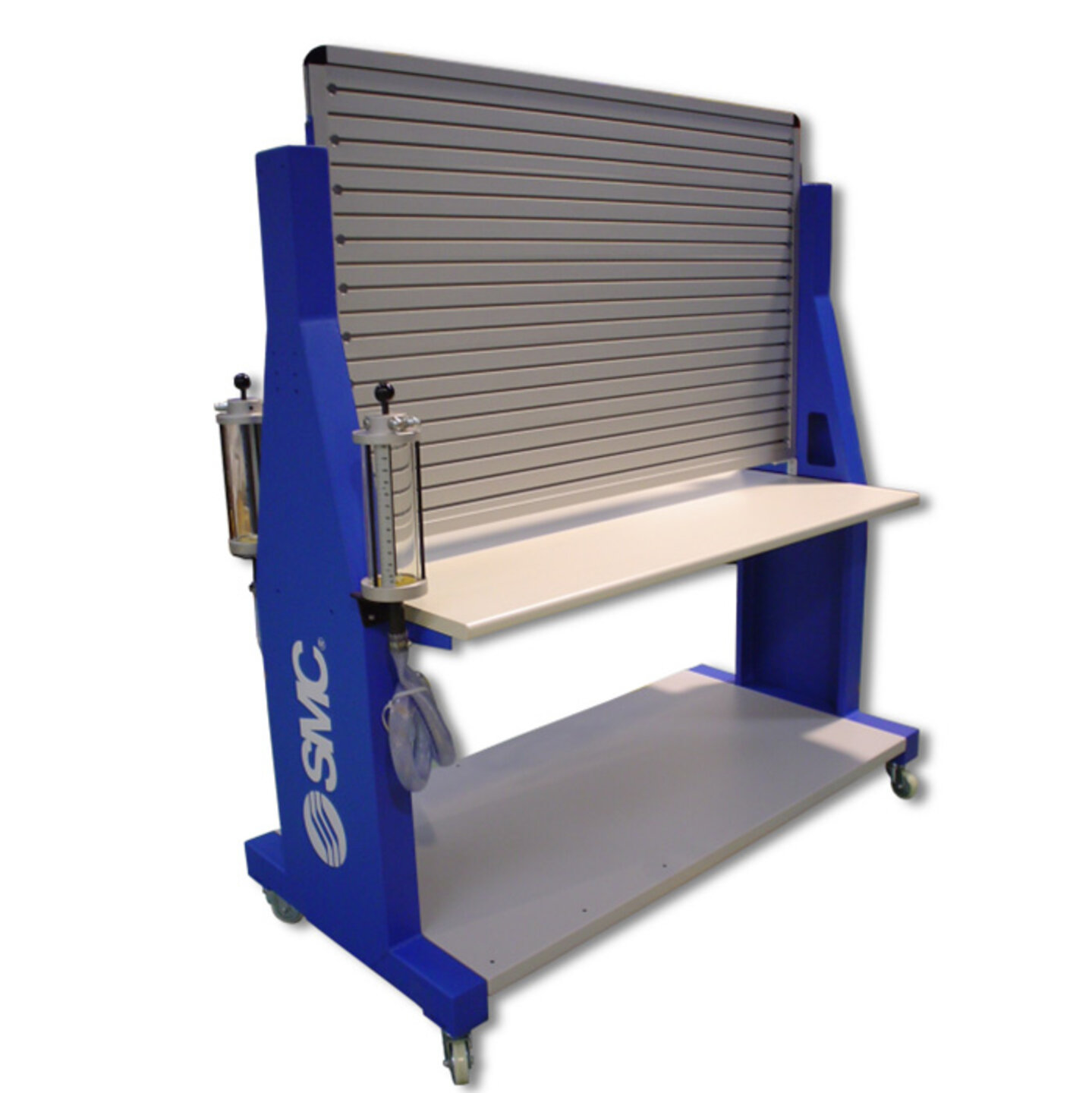

HY9280:
- The vertical panel means you can work on both sides.
- External panel dimensions: 1500x940x25 mm
- It includes a coated white top for horizontal work, 1500 x 800 mm.
- The lower section features a 1500x800 mm metal shelf that can contain up to two blocks of drawers for component storage and the hydraulic pump.
- 4-wheel support, two of them with brake.
- Total dimensions: 1681x800x1814 mm.
- Includes 2 measuring cups.

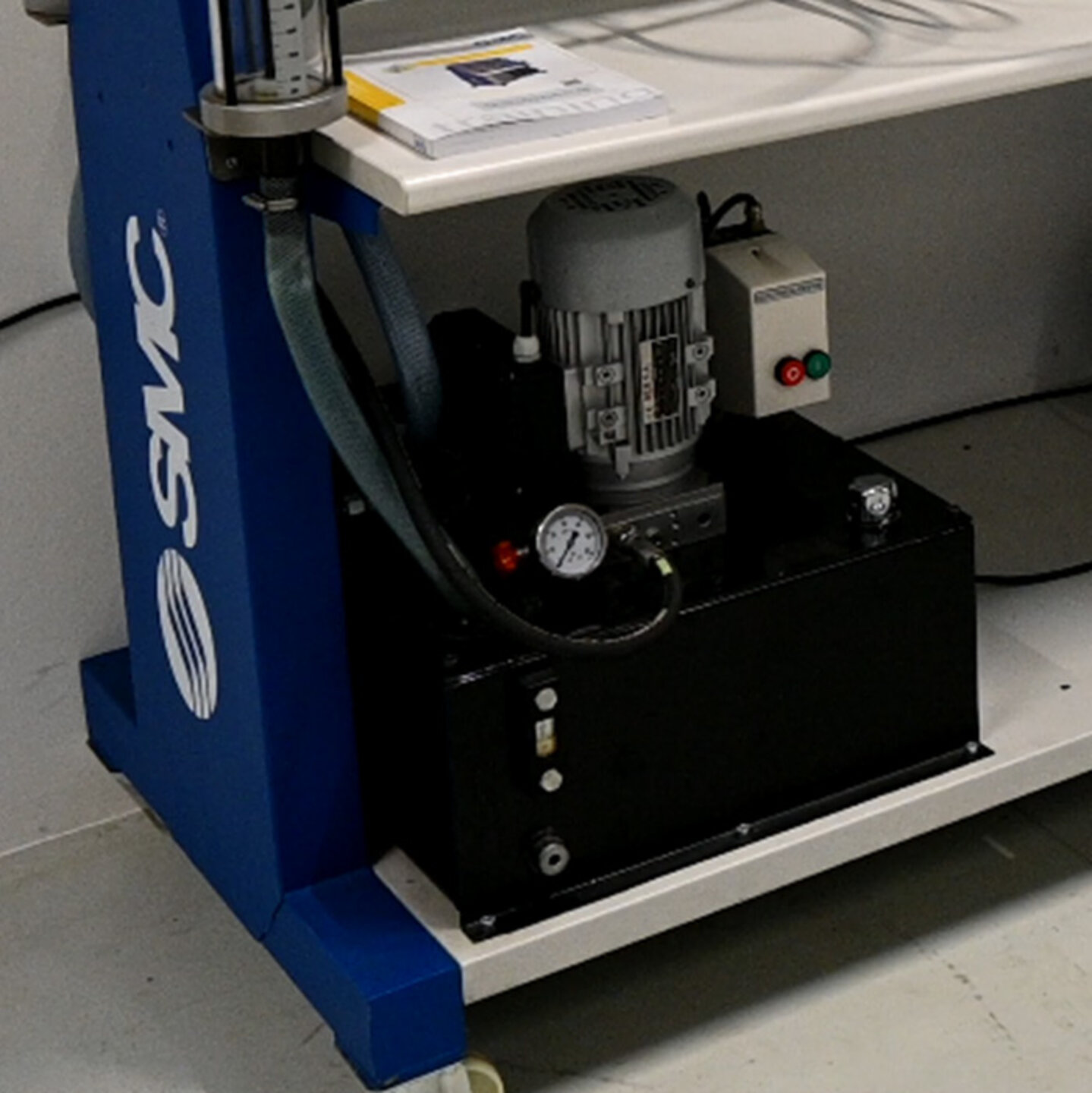

Hydraulic pump for one workstation
HY9256-XX*:
- Maximum operation pressure: 60 bar.
- 70 litres metal oil tank.
- Gear pump flow rate: 5,5 l/min
- It includes required oil, P and T connection blocks, emergency stop and start – stop push buttons.
- External dimensions: 530x800x580 mm.
_*Configurable part number. More information: How To Order or Product configurator._
Hydraulic pump for two workstations
HY9261-XX*:
- Maximum operation pressure: 60 bar.
- 70 litres metal oil tank.
- Gear pump flow rate: 5,5 l/min
- It includes required oil, P and T connection blocks, emergency stop and start – stop push buttons.
- External dimensions: 530x800x580 mm.
_*Configurable part number. More information: How To Order or Product configurator._

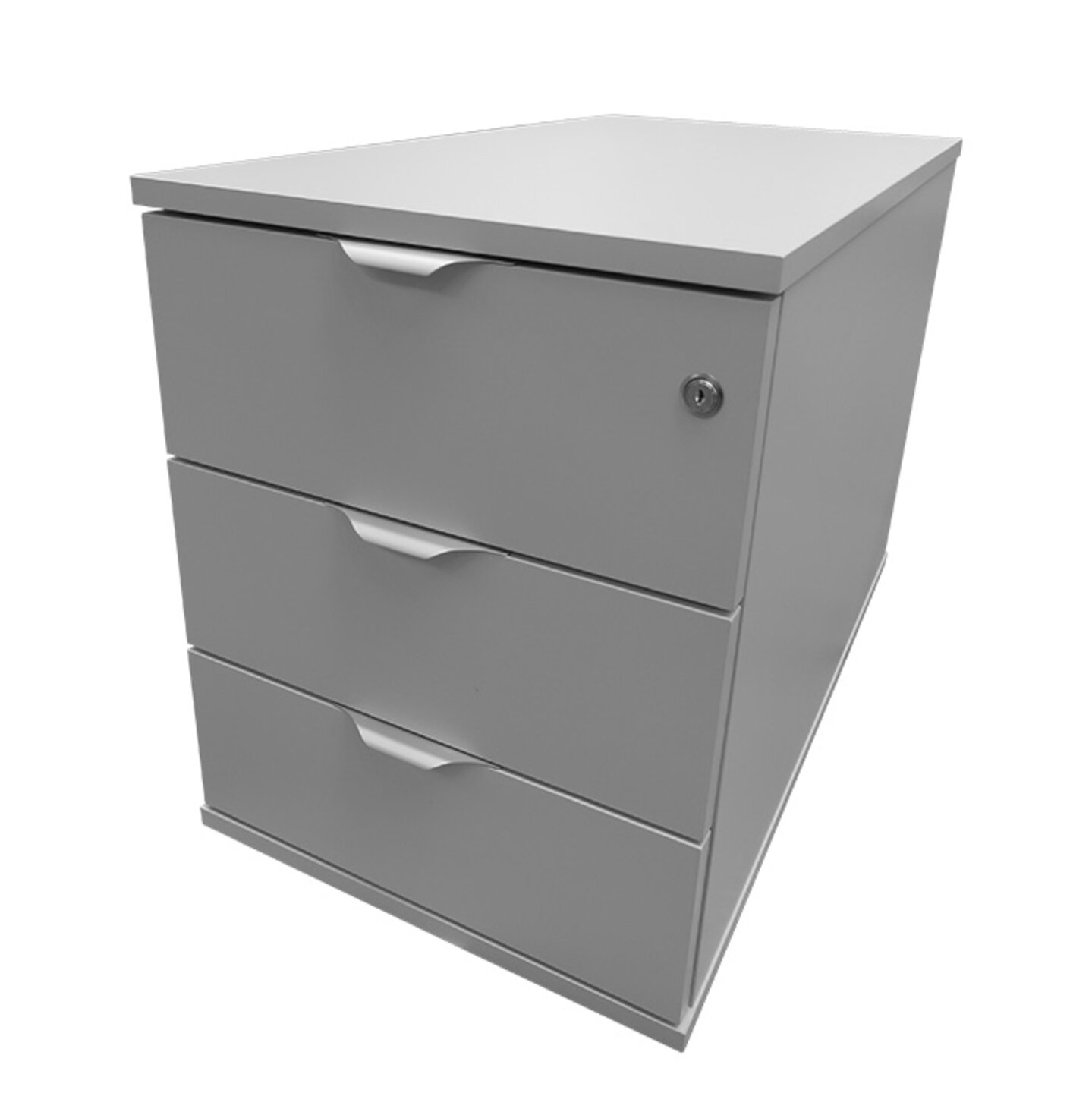

Set of drawers with lock
HY9260:
- 3-drawer block with slide guides to house components.
- Lockable with key.
- External dimensions: 440x800x550mm.

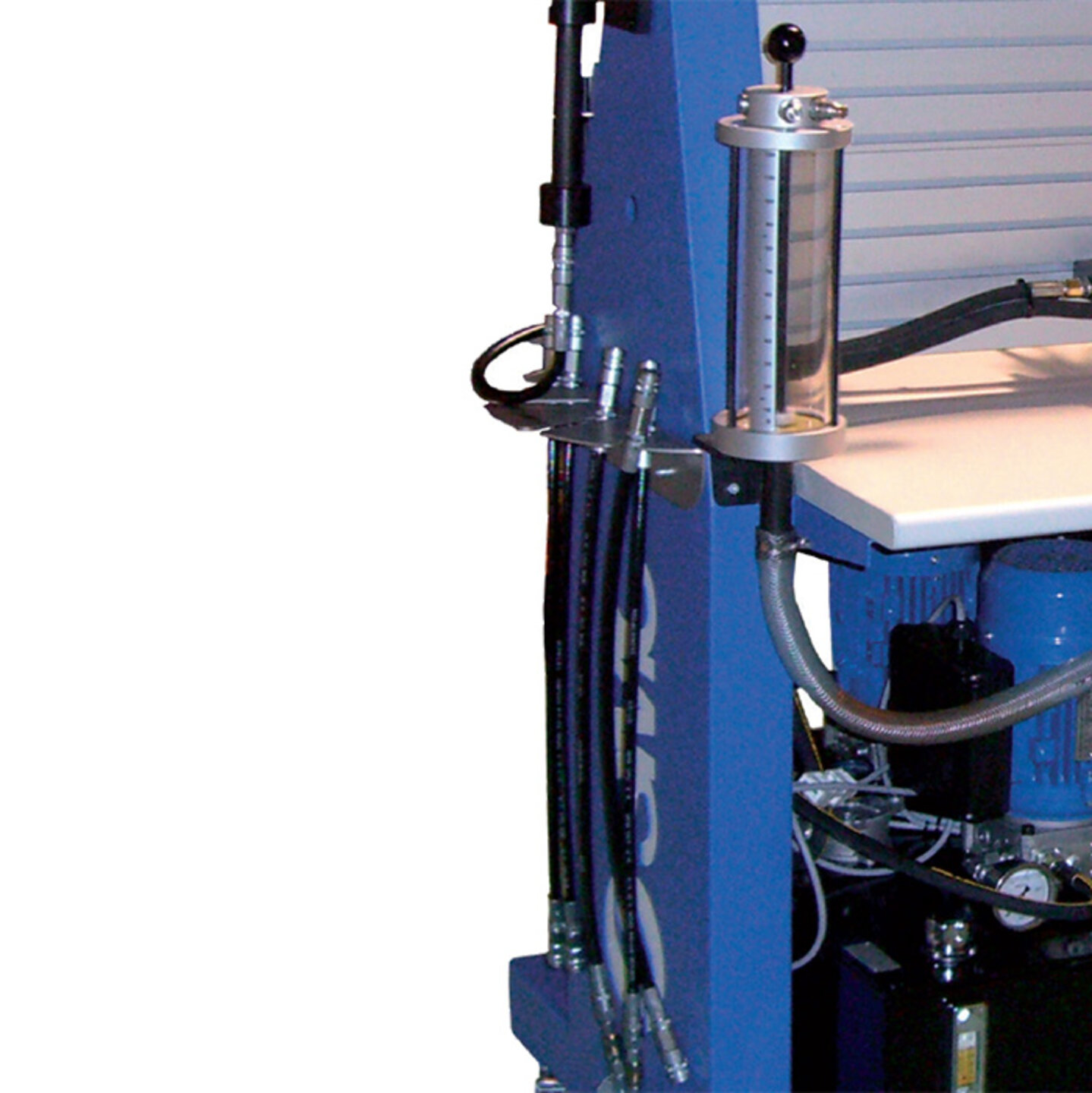

Hose support accessory (x2)
HY9274:
- Stainless steel made, the set includes two units, one for each side of the
panel (for trolley HY9280).
- It is equipped with lateral fixing system to the panel.
Benchtop frame with dual position panel
HY9370:
- The vertical panel means you can work on both sides.
- External panel dimensions: 1500x940x25 mm
- Includes lateral structure manufactured in steel prepared for affixing accessories such as: load simulator weight, measuring cup and hose accessories.
- Total dimensions: 1584x600x1084mm.
Measuring cup for benchtop frame SAI9370
HY9371:
- The measuring cup is a transparent container of 1.2 litres, scaled and with an anti-overflow system.
- Includes a pipe that connects the measuring cupwith the hydraulic tank.

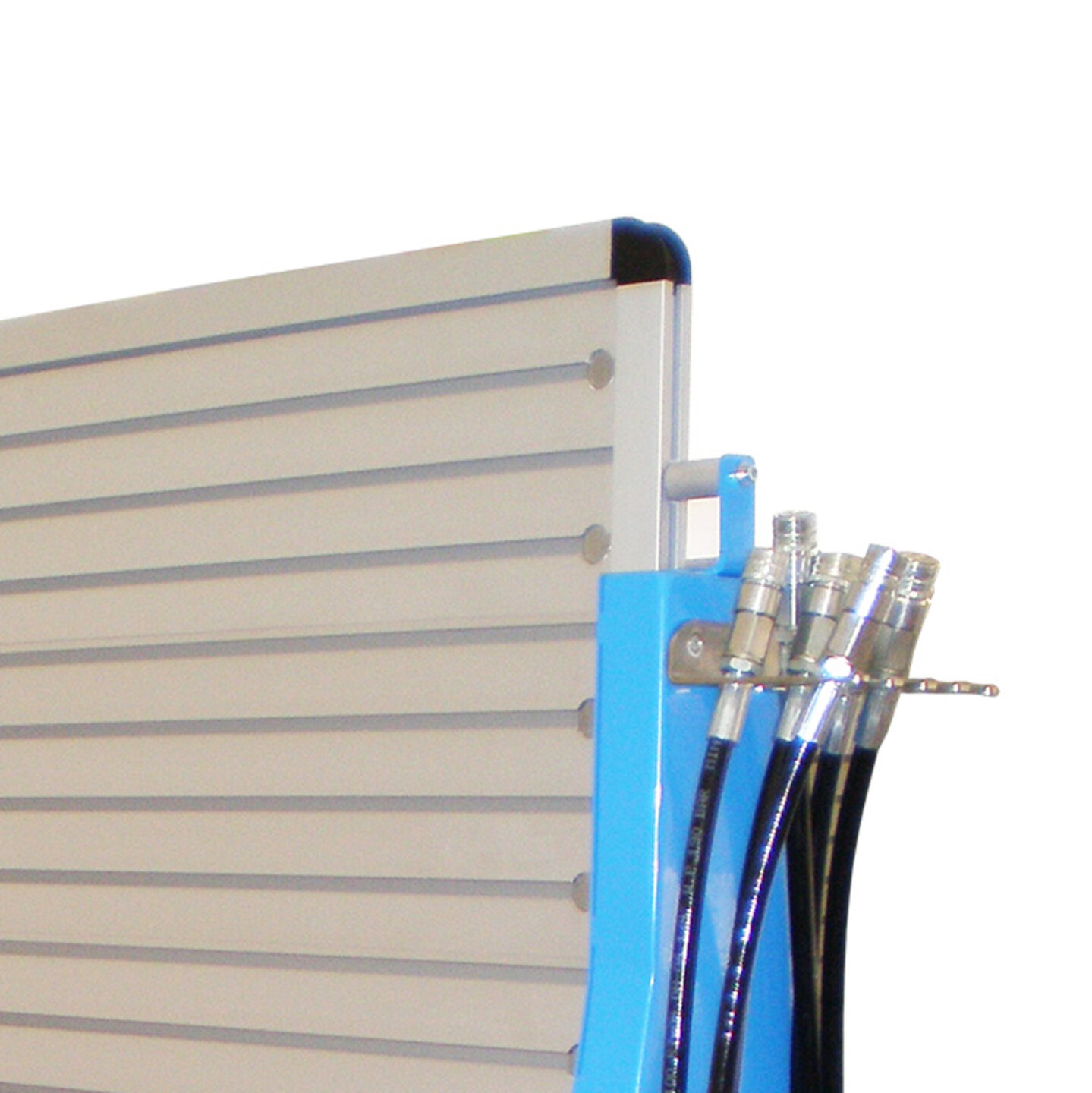

Hose accessory (x1) for benchtop frame HY9370
HY9372:
- It is equipped with lateral fixing system to the panel.
- Stainless steel made.
HYDROTRAINER-200 Documentation
HY9DAF-0X*
- User’s and practical manual
HY9DAT-0X*
- Theoretical concepts manual
_*Configurable part number. More information: How To Order or Product configurator._
Product configurator
Do you want to request a quote on this product and get the specifications and technical descriptions of it?
Configure your ideal system through our product configurator and get all the related information in just a couple of clicks.
