Actuators - Components
HYDROTRAINER-200 offers an extensive selection of components to meet all your hydraulic / electrohydraulic learning needs and create your custom compositions.

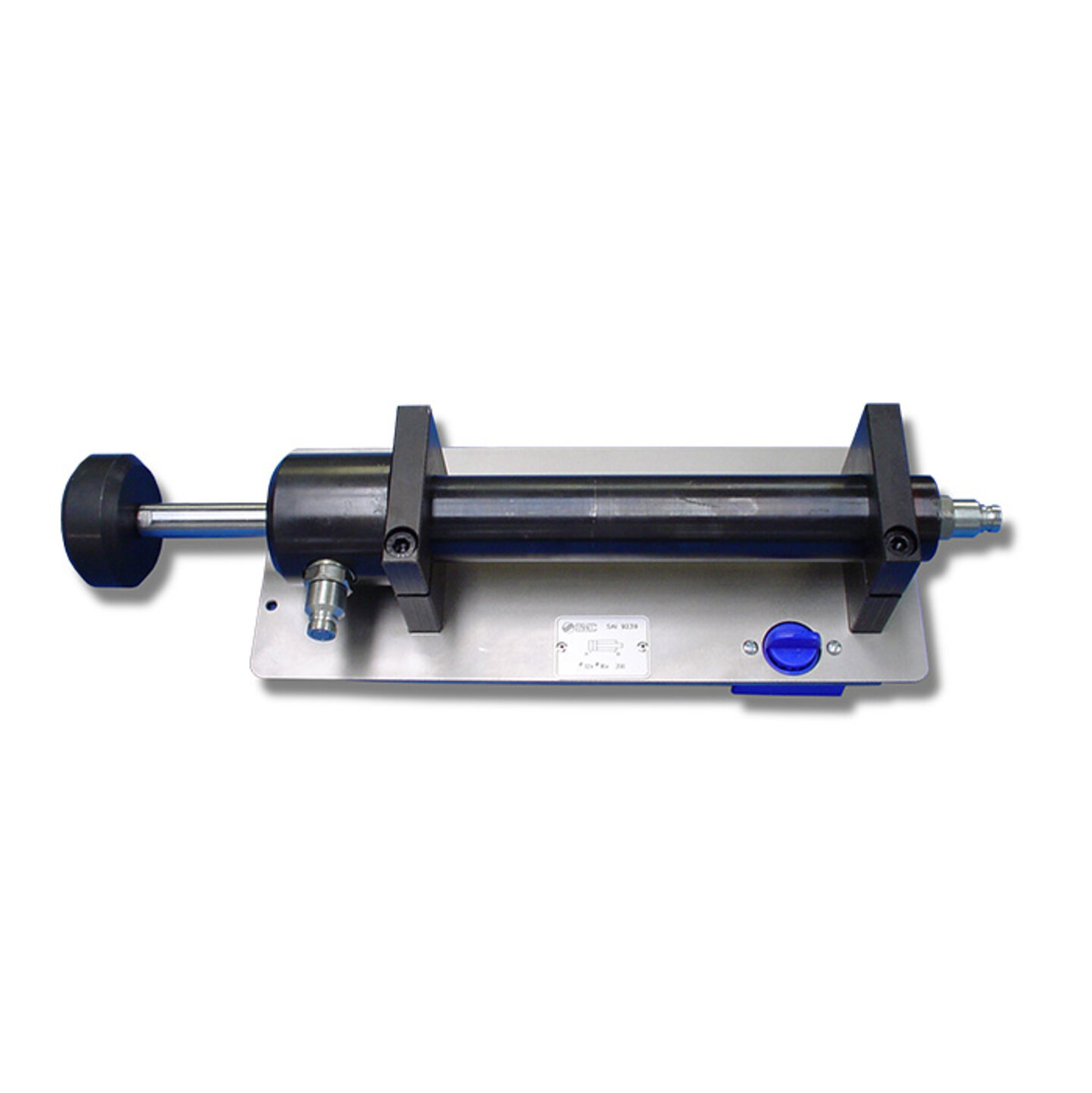

Double-acting cylinder
HY9239:
- In steel, ø32/ø16x 200 mm stroke.
- Area ratio 1.33:1.
- It includes two quick-fit male connectors R 1/4”.
- Includes threaded cam at the end of the rod.

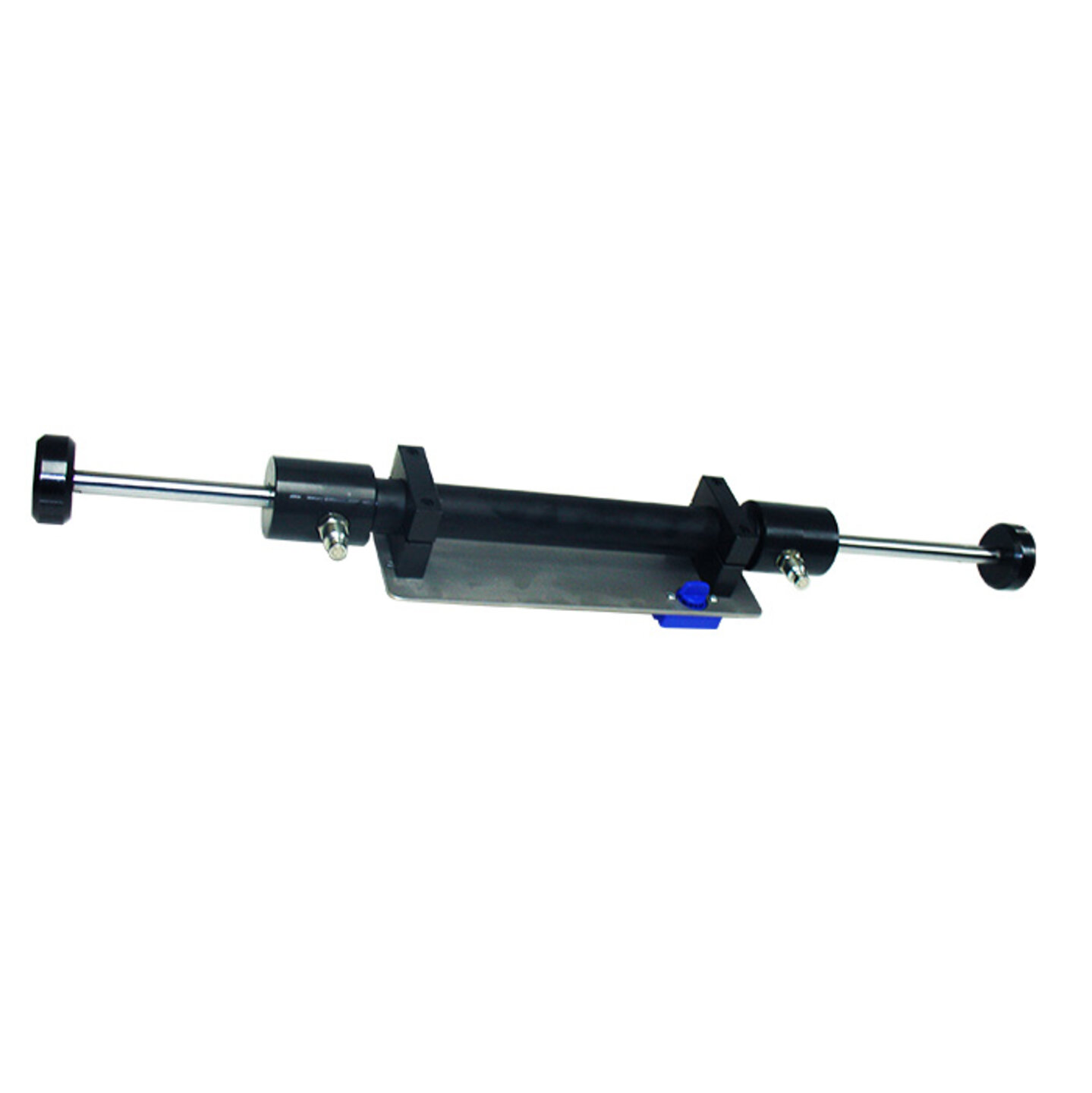

Double-rod cylinder
HY9225:
- In steel, Pmax. = 150 bar.
- Diameter ø16 x ø32 x ø16 x 300 mm stroke.
- It includes two quick-fit male connectors R 1/4”.
- Includes threaded cam at the end of the rod.
Double-acting differential hydraulic cylinder
HY9210:
- In steel, ø32/ø22 x 200 mm stroke.
- Includes threaded cam at the end of the rod.
- It includes two quick-fit male connectors R 1/4”.

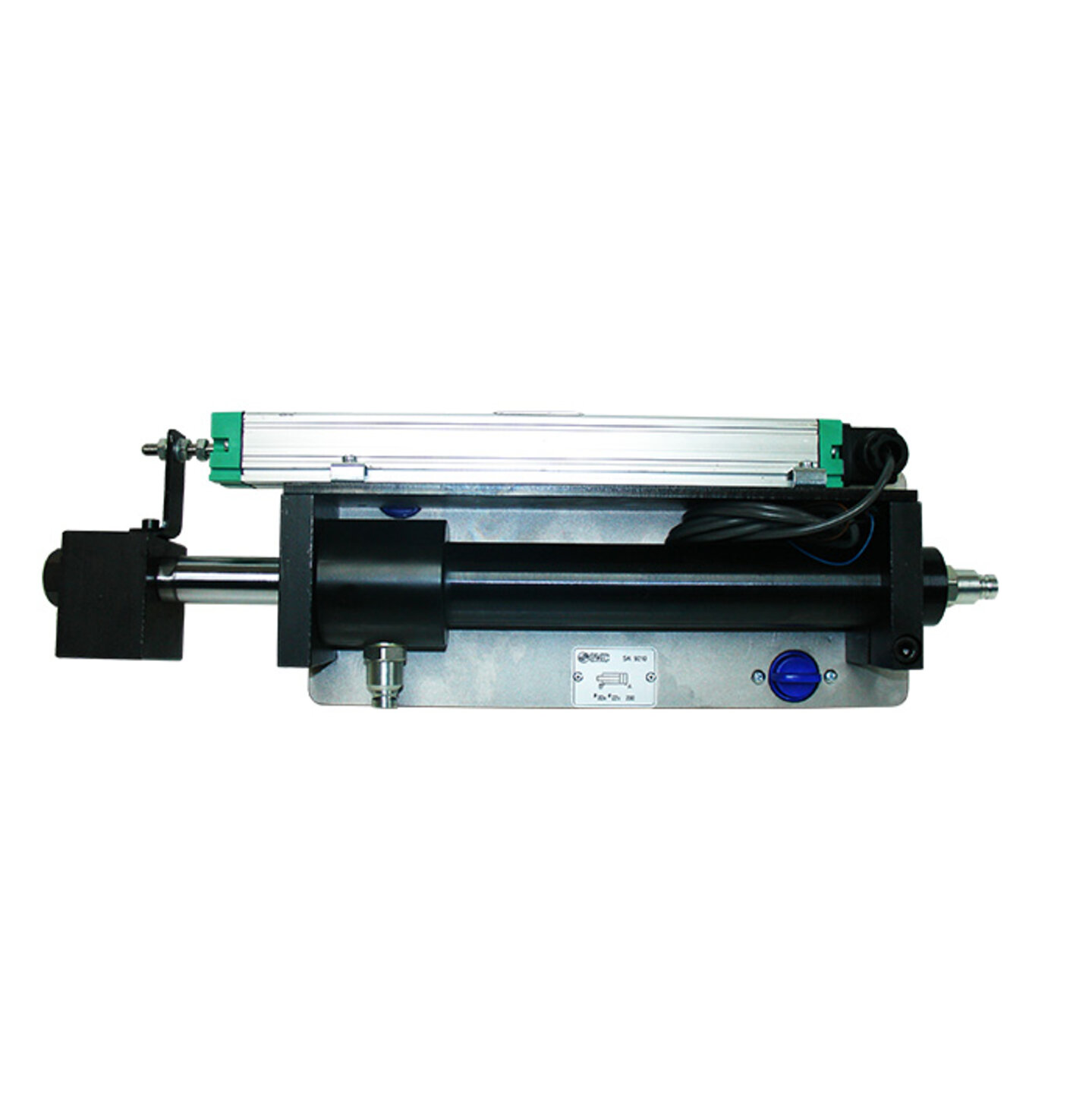

Cylinder with transducer for linear analogue position
HY9300:
- Linear actuator with position capture.
- Diameter 32mm. Stroke: 200mm.
- Resistance R = 5 KΩ.
- With cables and 4 mm security terminals. Cable length: 1,5 m.
- It includes two quick-fit male connectors R 1/4”.

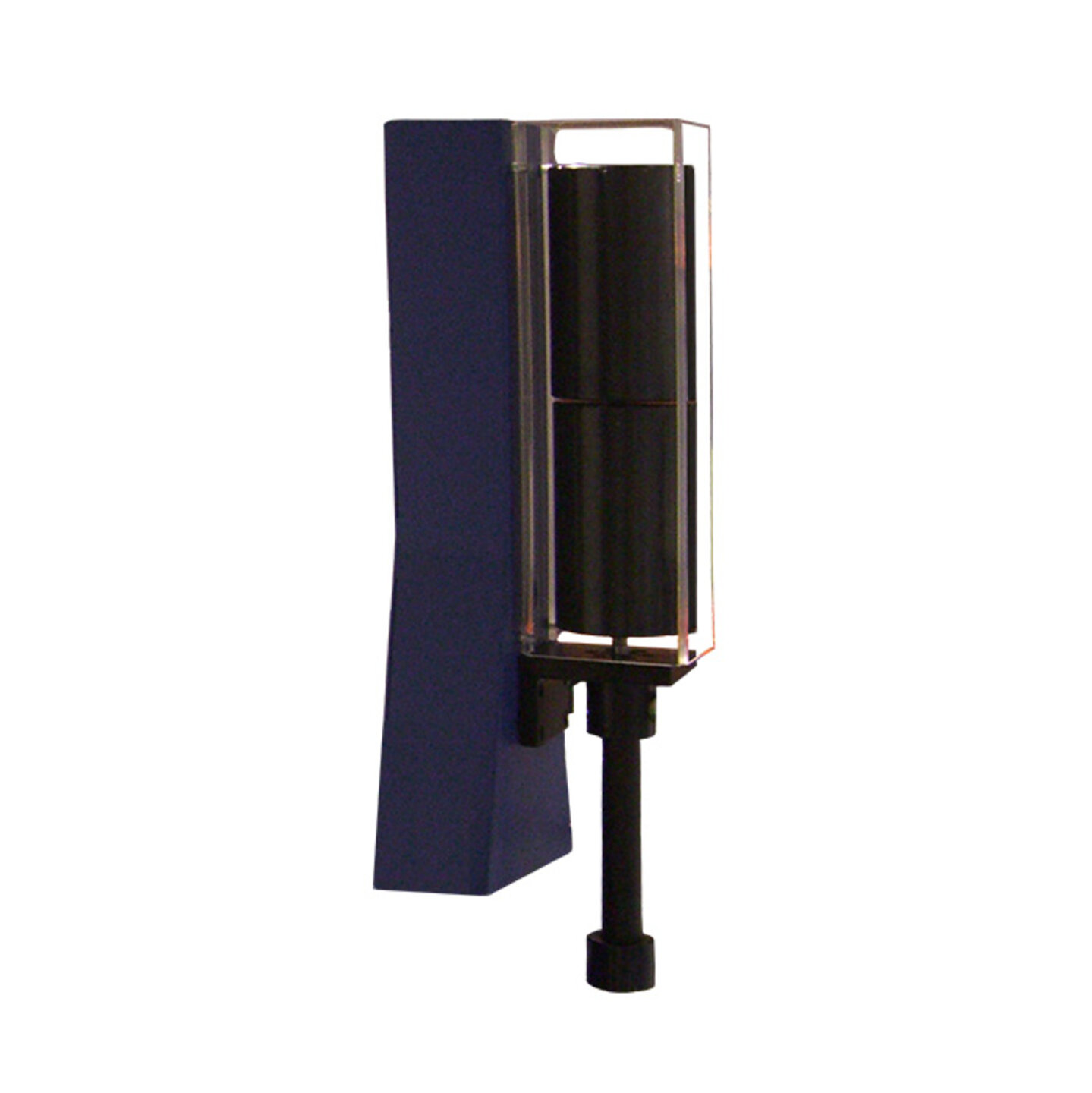

Counterweight with lateral fixing to the panel
HY9230:
- With lateral fixing system to the panel.
- Weight: 18kg.
- Double-acting cylinder ø20/ø12 x 150 mm stroke.
- It includes transparent methacrylate screen for safety.
- It includes two quick-fit male connectors R 1/4”.

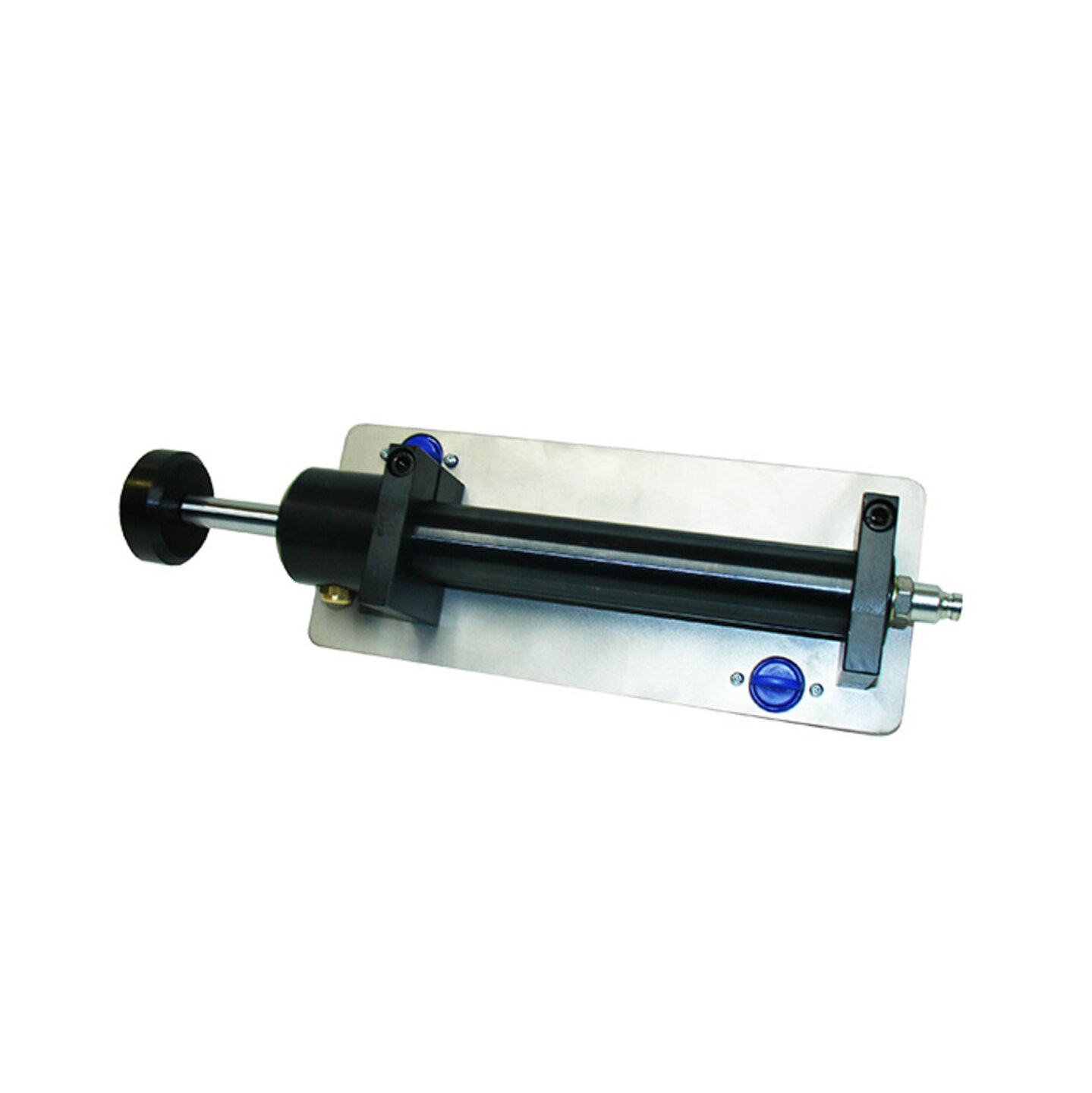

Single acting cylinder
HY9245:
- Steel construction, ø32/ø16 x 160 mm stroke
- Includes threaded cam at the end of the rod.
- It includes one quick-fit male connectors R 1/4”.

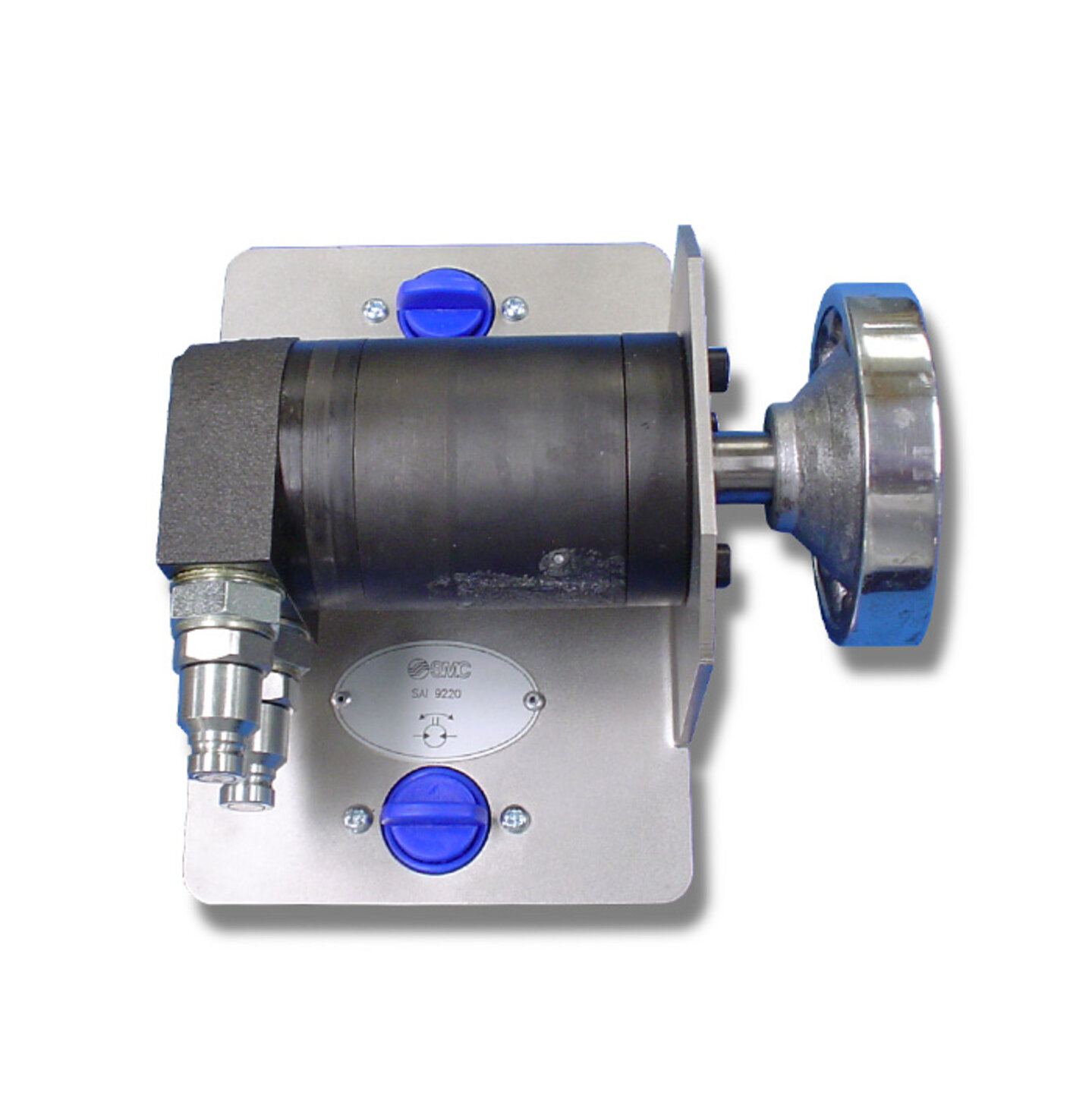

Hydraulic motor
HY9220:
- Gerotor system. Cubic capacity: 12.5 cm3/rev.
- With steering wheel mounted on the axis.
- Includes two quick-fit male connectors, R 1/4” and fixing system to the assembly panel.
