Flow Valves - Components
HYDROMODEL-200 offers an extensive selection of components to meet all your hydraulic / electrohydraulic learning needs and create your custom compositions.

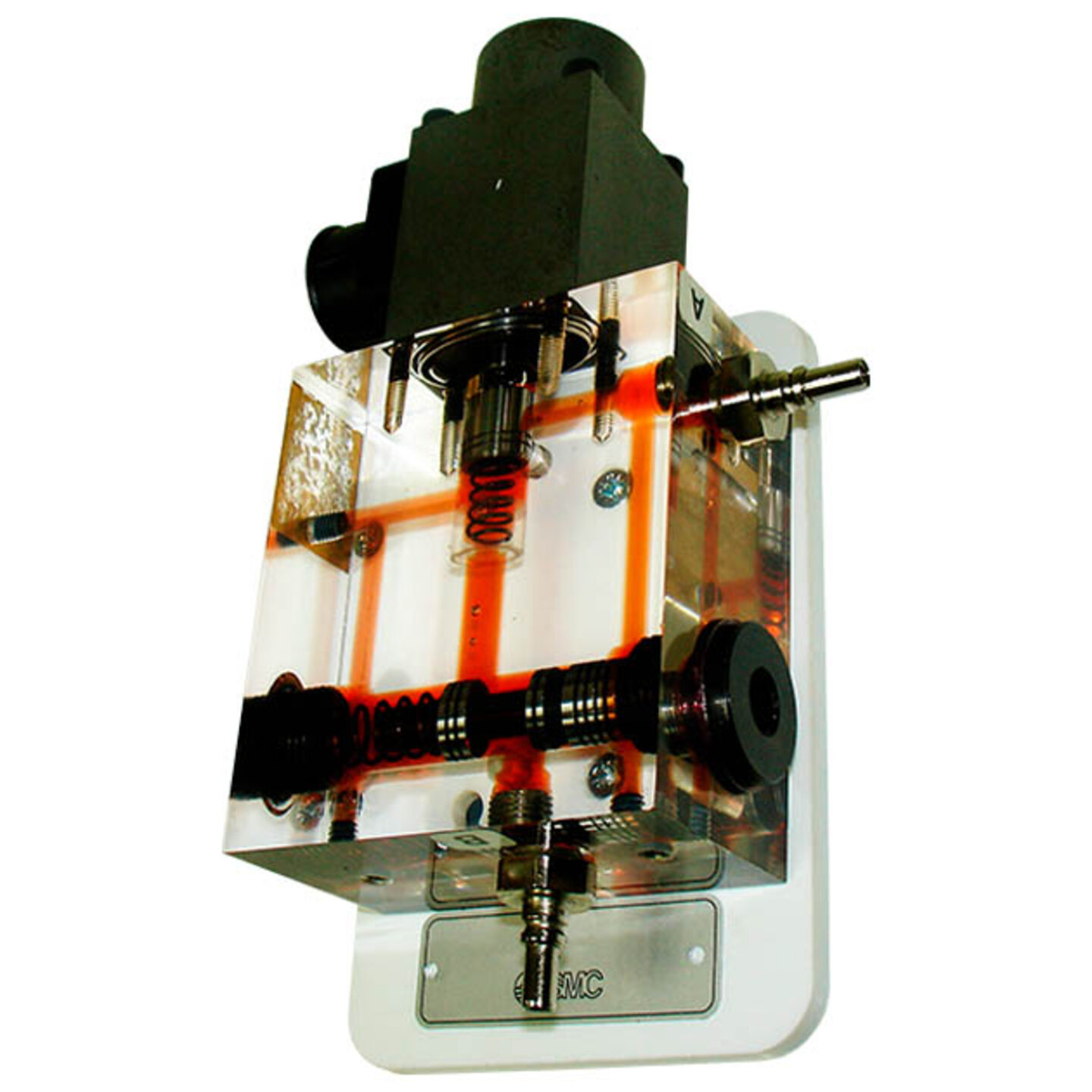

Proportional compensated flow control solenoid valve
HM9439
- Coil actuation 24VDC, I nominal 0.8A.
- Pmax: 10 bar.
_*Necessary connector for coil HY9303_

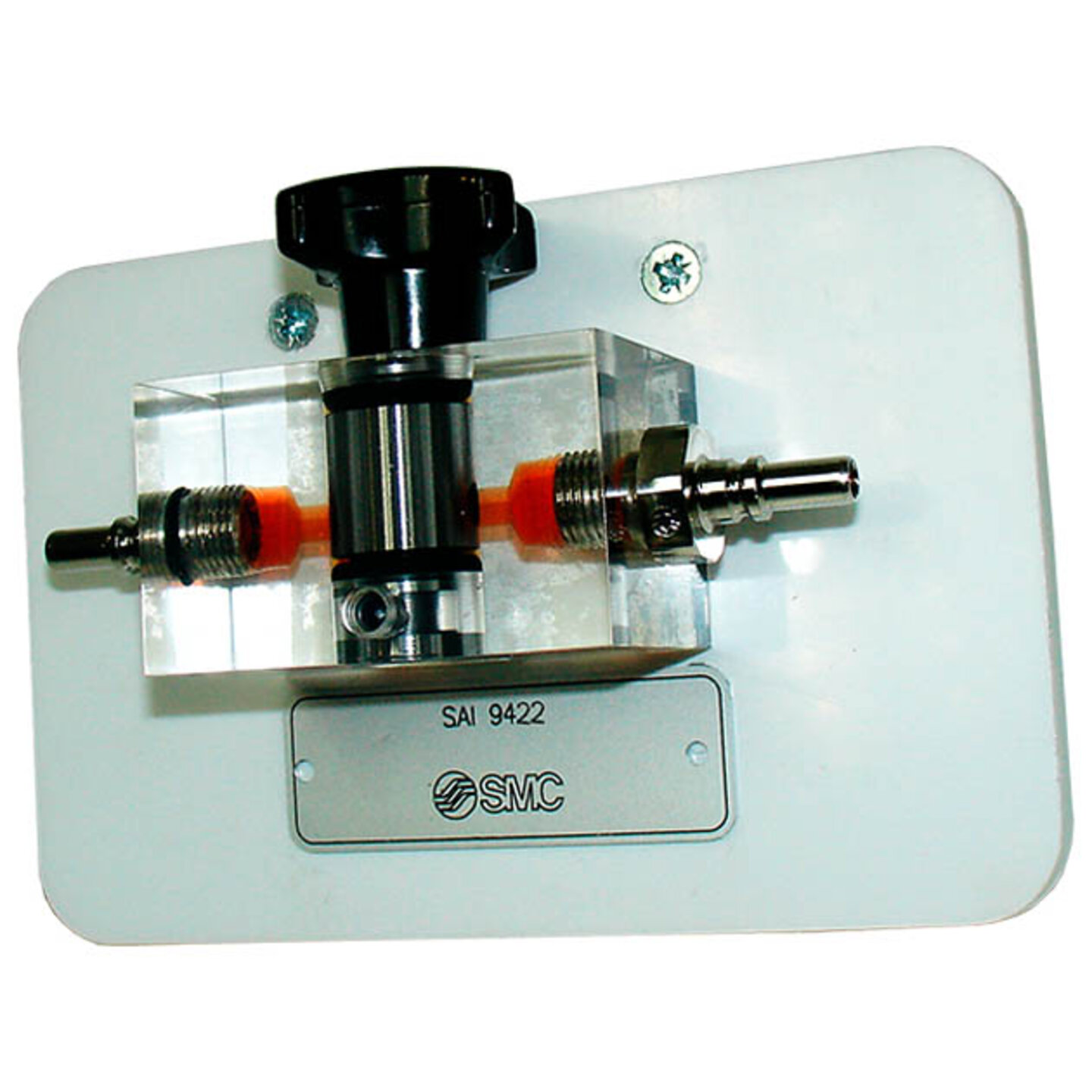

Manual shut-off valve, 2-way
HM9422
- Opens or closes the oil flow using a lever actuator.
- Manual rotary actuation.
- Pmax: 10 bar.

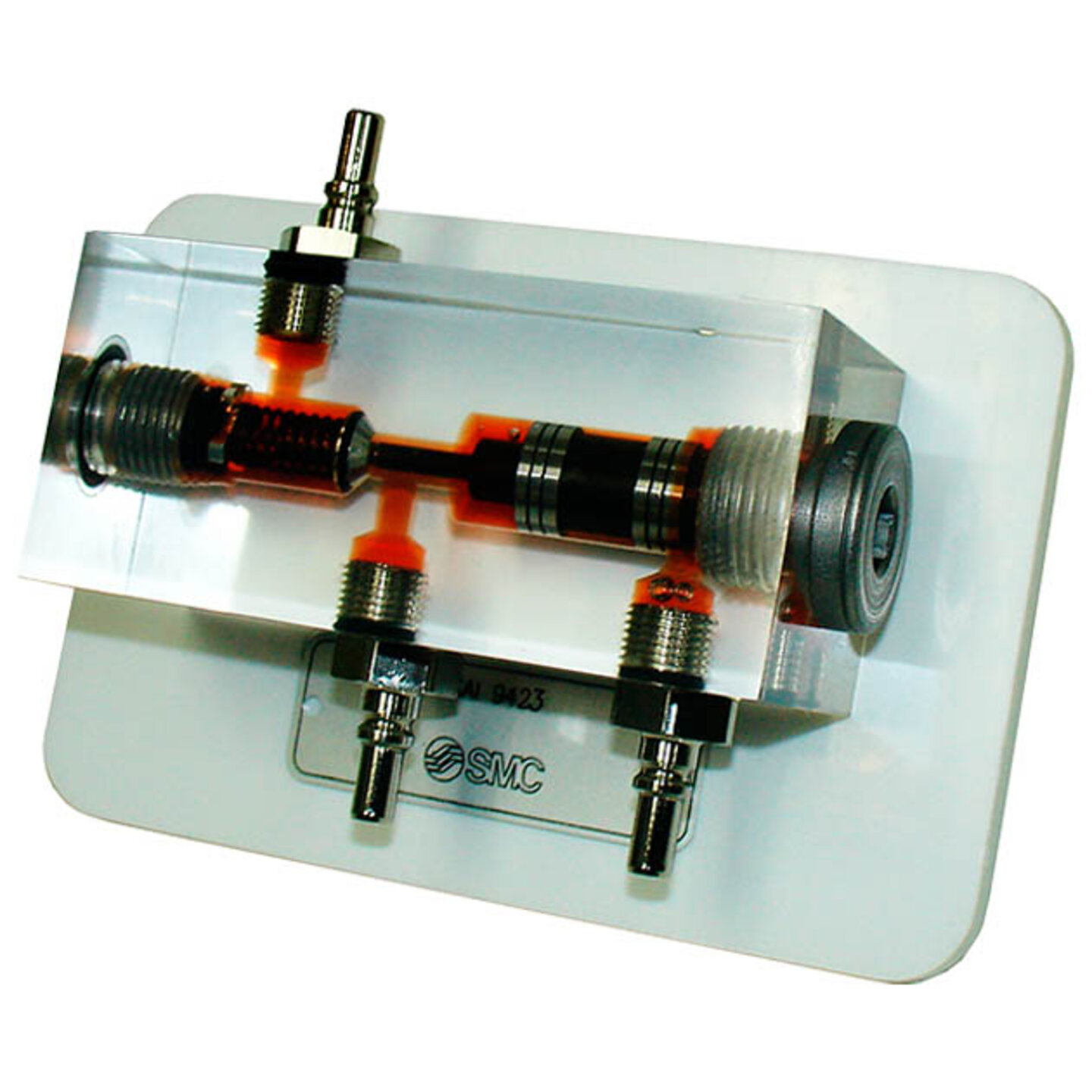

Pilot-operated check valve
HM9423
- Normally allows oil flow in one direction, but allows flow in both directions when there is pressure at the pilot connection.
- Pmax: 10 bar.

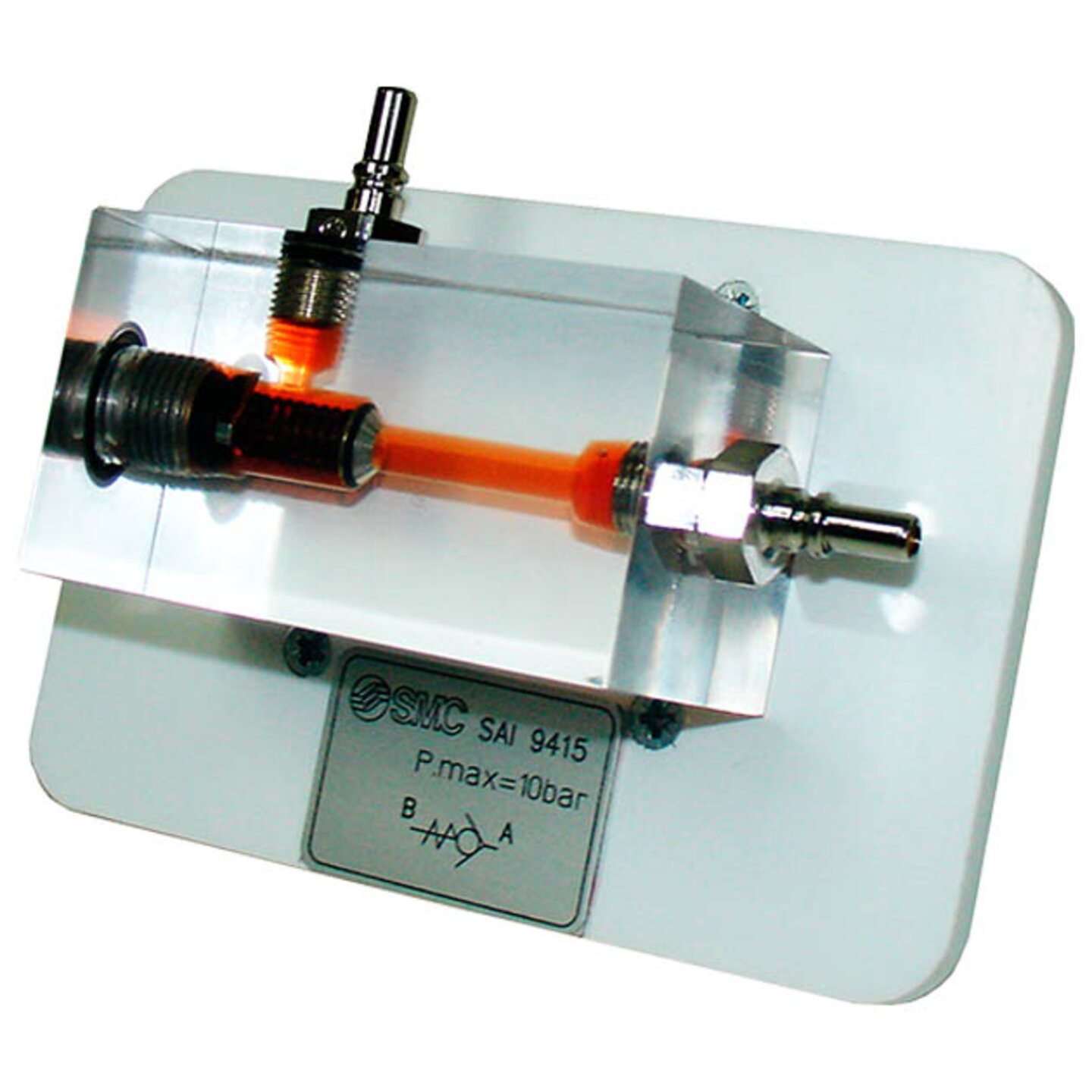

Check valve
HM9415
- Allows oil flow in one direction only.
- Pmax: 10 bar.
Adjustable flow throttle valve
HM9416
- Allows adjusting the oil flow rate in both directions.
- Two-way needle valve. Manual adjustment by rotary control.
- Pmax: 10 bar.

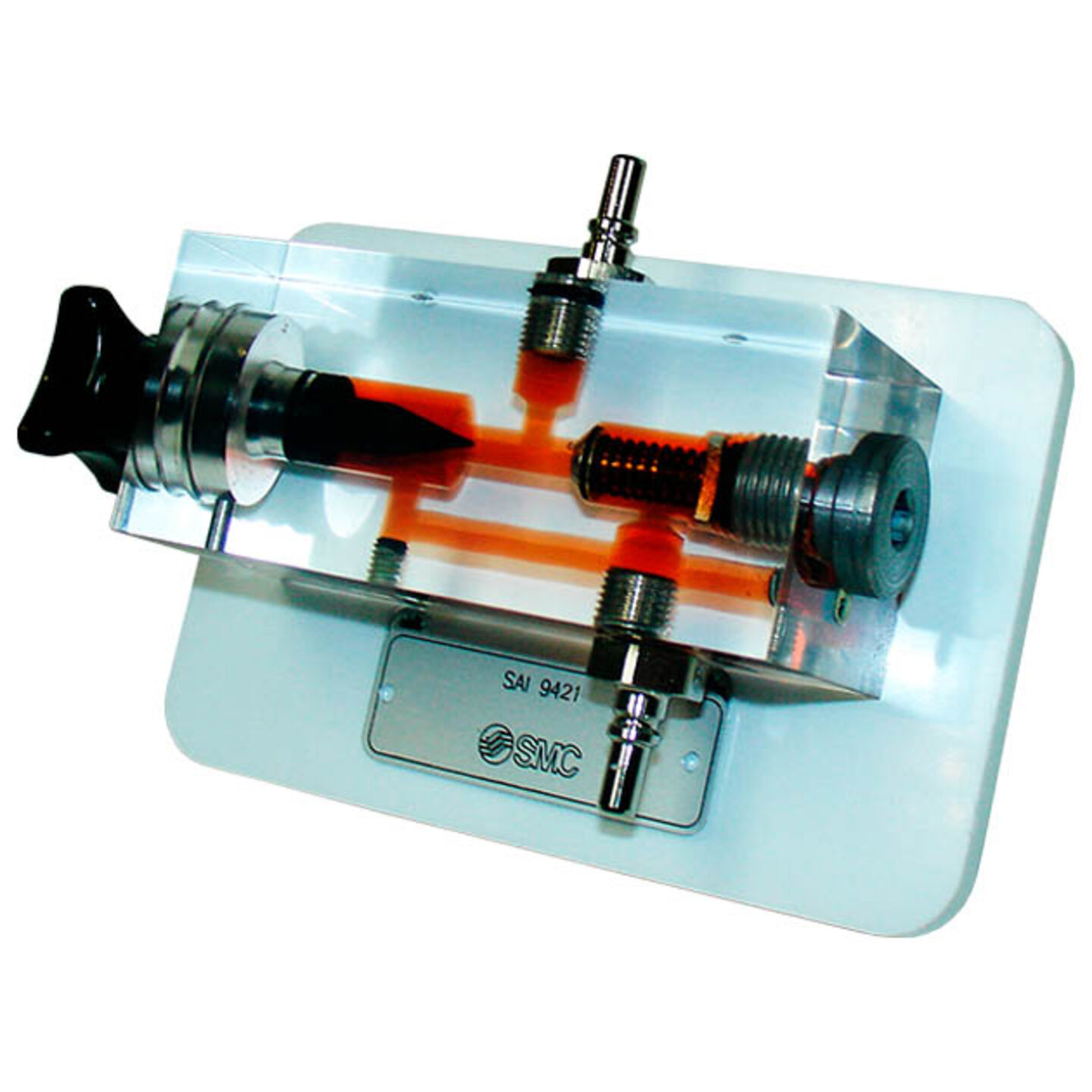

Flow throttle valve with check valve
HM9421
- Allows adjusting the oil flow rate in one direction and unrestricted flow in the opposite direction.
- Unidirectional. Manual adjustment by rotary control.
- Pmax: 10 bar.

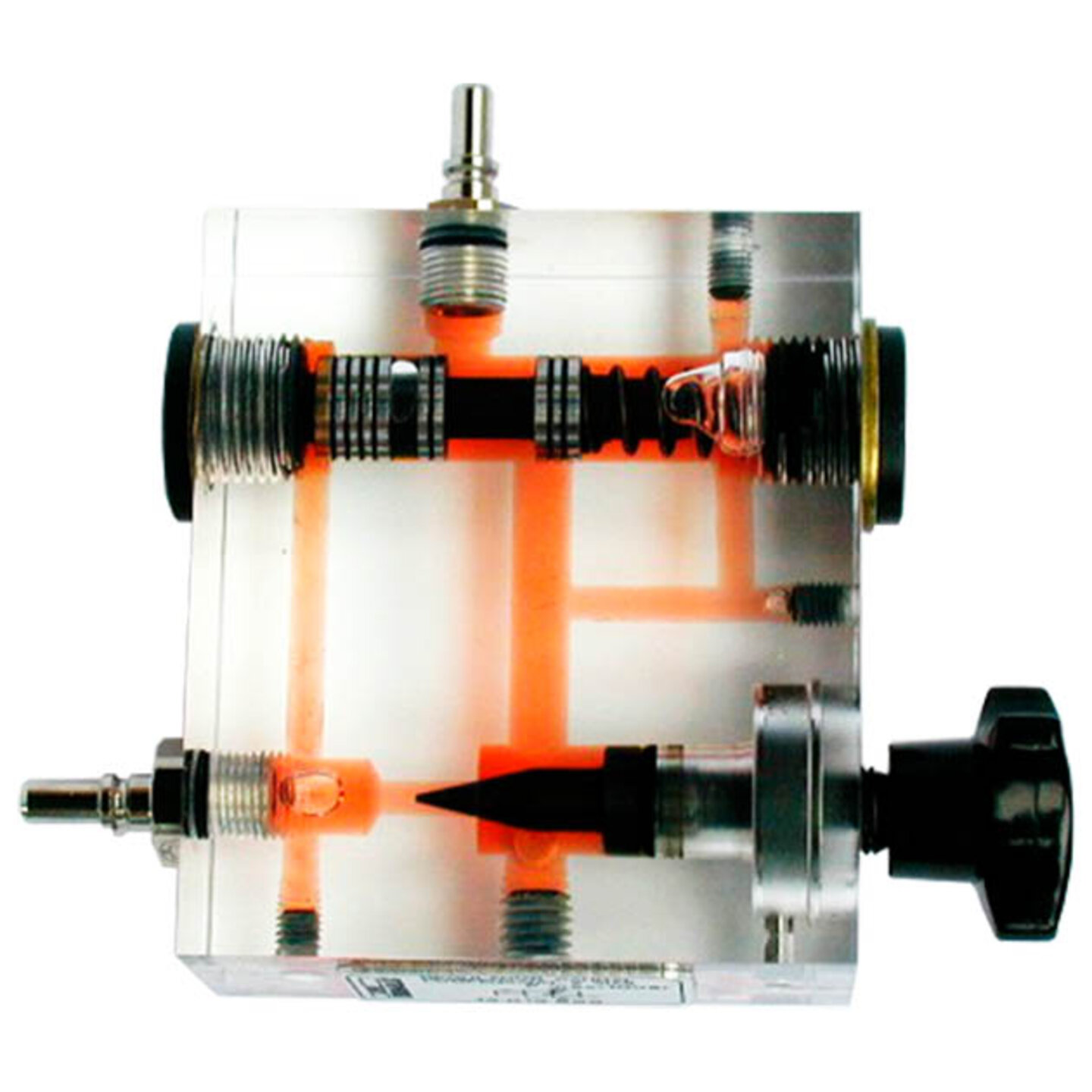

Compensated flow regulator
HM9424
- Allows adjusting the flow rate independently of the pressure values at the inlet and outlet.
- Regulation by manual rotary control.
- Pmax: 10 bar.

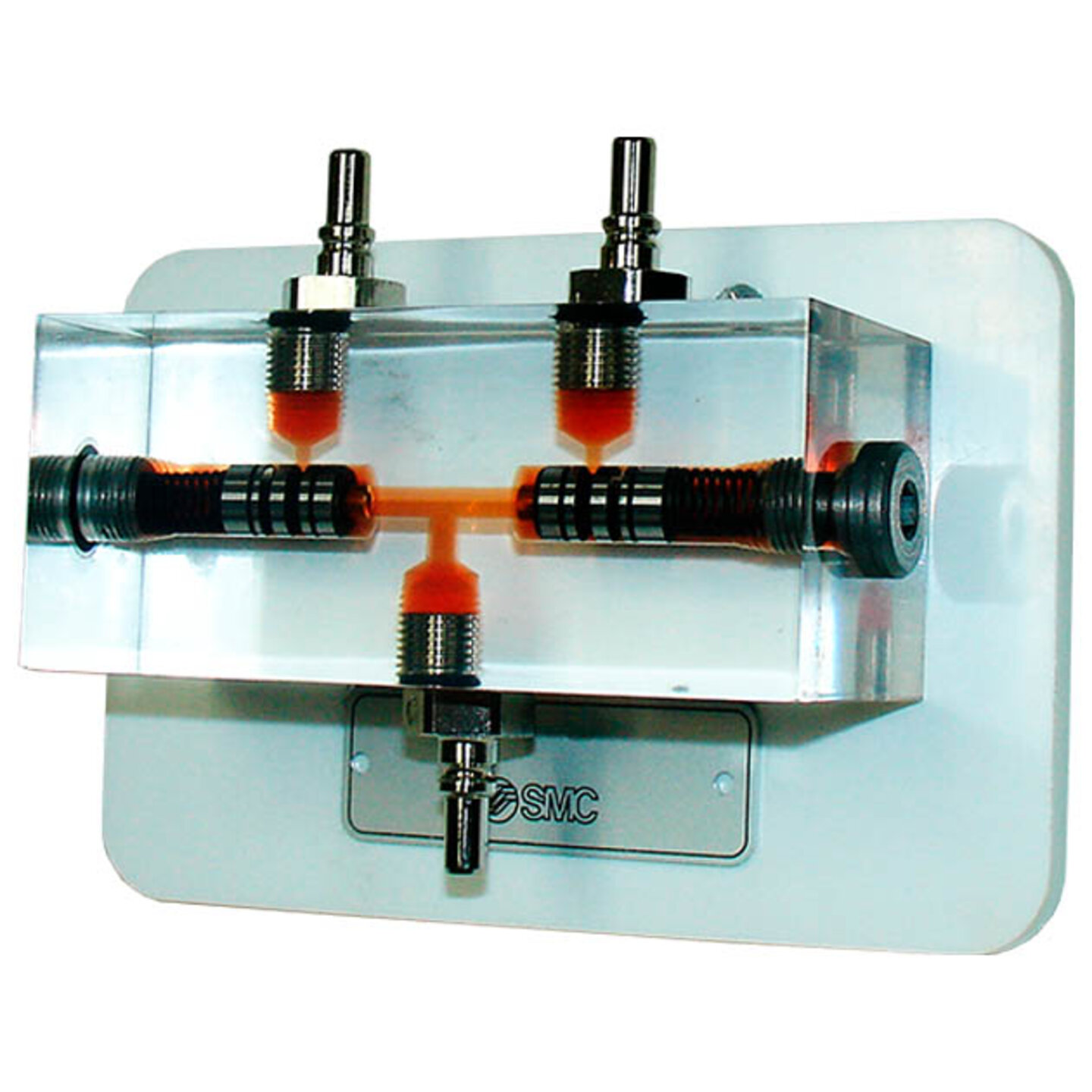

Flow divider
HM9468
- Divides the inlet flow into two equal parts.
- Pmax: 10 bar.

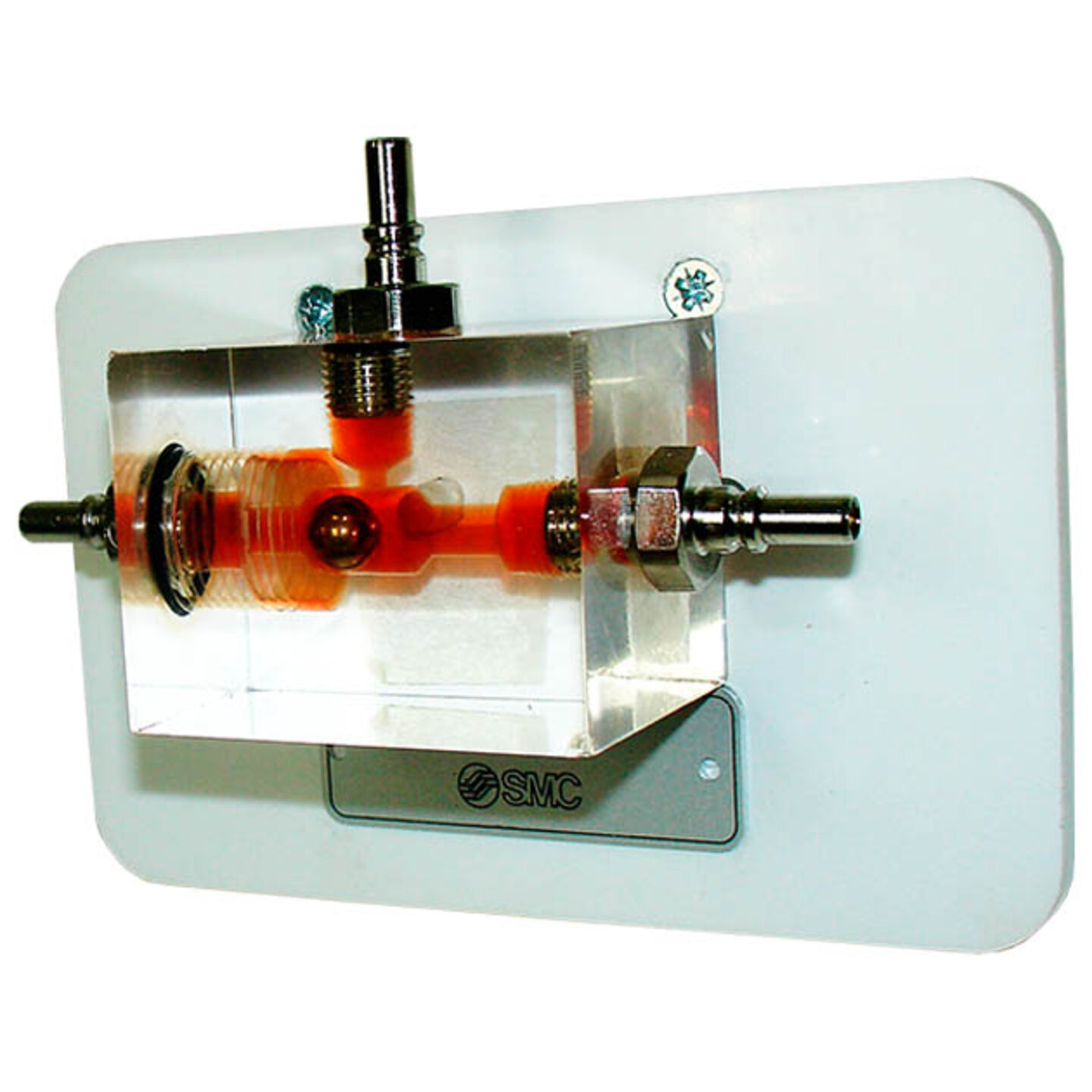

Circuit selector valve, "or" function
HM9469
- Pmax: 10 bar.
