Distribution Valves - Components
HYDROMODEL-200 offers an extensive selection of components to meet all your hydraulic / electrohydraulic learning needs and create your custom compositions.
Manual 2/2-way directional valve
HM9442
- Manual actuation and spring return.
- With drainage.
Manual 3/2-way seat valve
HM9445
- Manual actuation and spring return.
- Pmax: 10 bar.
Manual 4/2-way directional valve
HM9413
- Manual actuation and spring return.
- Pmax: 10 bar.
Manual 4/2-way directional valve with mechanical locking
HM9446
- Manual actuation on both sides.
- Pmax: 10 bar.
Manual 4/3-way directional valve, closed centers
HM9447
- Manual actuation on both sides and centering by springs.
- Pmax: 10 bar.
Manual 4/3-way directional valve, centers to tank
HM9449
- Manual actuation on both sides and centering by springs.
- Pmax: 10 bar.

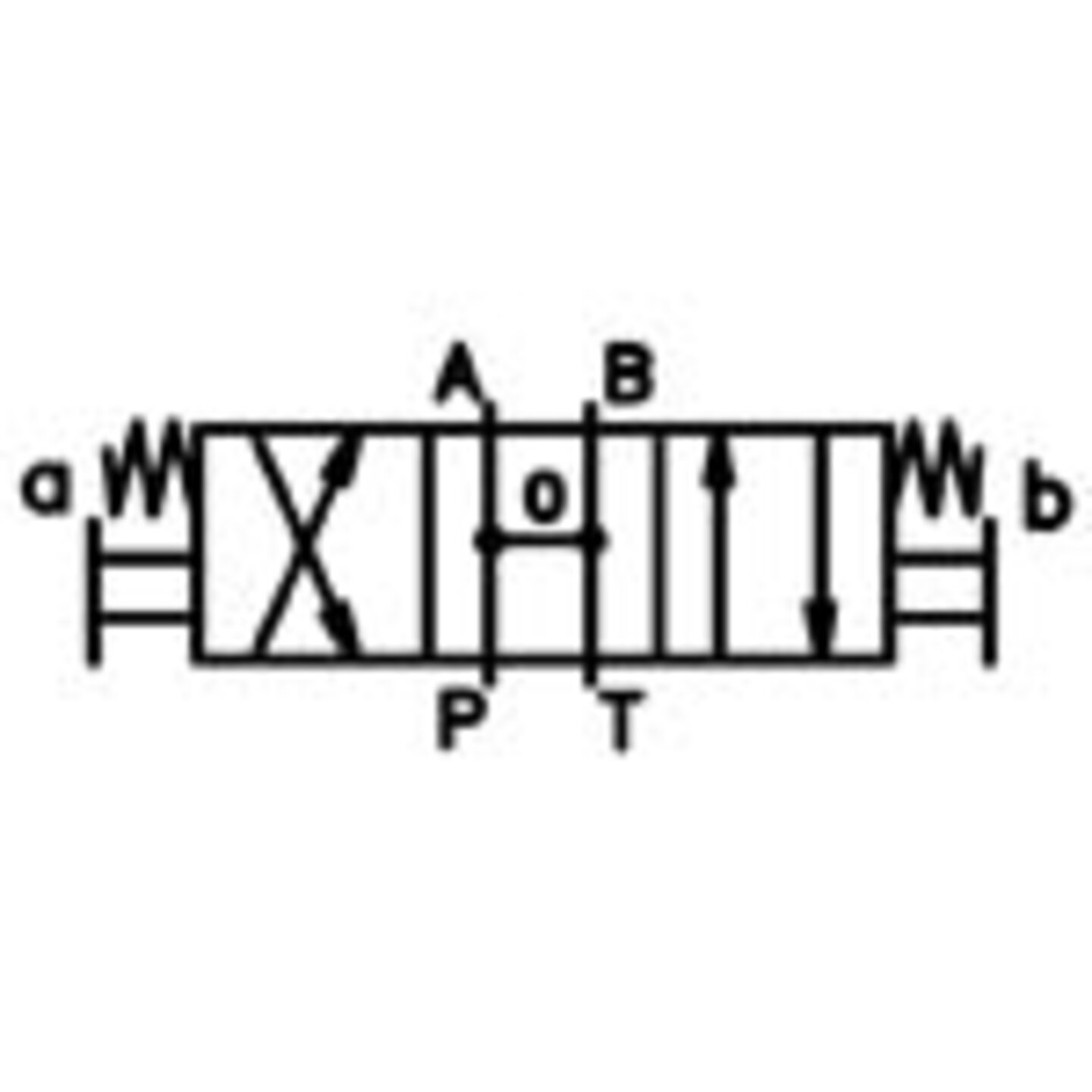

Manual 4/3-way directional valve, connected centers
HM9450
- Manual actuation on both sides and centering by springs.
Mono-stable 4/2-way directional valve, spring return
HM9431
- Coil actuation and spring return.
- Pmax: 10 bar. Low consumption coils (12W).
_*Necessary connector for coil HY9272_
4/2-way solenoid valve with mechanical locking
HM9482
- Bistable. Coil actuation on both sides.
- Pmax: 10 bar. Low consumption coils (12W).
_*Necessary connector for coil HY9272_
4/3-way solenoid valve, closed centers
HM9440
- Coil actuation on both sides and centering by springs.
- Pmax: 10 bar. Low consumption coils (12W).
_*Necessary connector for coil HY9272_
4/3-way solenoid valve, A, B, and T connected in central position
HM9483
- Coil actuation on both sides and centering by springs.
- Pmax: 10 bar. Low consumption coils (12W).
_*Necessary connector for coil HY9272_
4/3-way solenoid valve, A, B, and P connected in central position
HM9484
- Coil actuation on both sides and centering by springs.
- Pmax: 10 bar. Low consumption coils (12W).
_*Necessary connector for coil HY9272_
4/3-way solenoid valve, A, B, P, and T connected in central position
HM9485
- Coil actuation on both sides and centering by springs.
- Pmax: 10 bar. Low consumption coils (12W).
_*Necessary connector for coil HY9272_
Proportional 4/3-way directional valve, direct control. P, A, and B connected, T closed
HM9403
- 4/3-way directional valve with progressive opening depending on the control electrical signal value.
- In the central position A, B, and P are connected.
- Actuation by coils on both sides and centering by springs.
- Pmax: 10 bar. Coils 24VDC, I nominal 0.8A.
_*Necessary connector for coil HY9303_
Proportional 4/3-way directional valve, pre-actuated. P, A, and B connected, T closed
HM9404
- 4/3-way directional valve with progressive opening depending on the control electrical signal value, with a main stage and a pilot stage.
- Pre-actuated. External pilots X and Y. Centering by springs, in the central position A, B, and P are connected.
- Actuation by coils on both sides.
- Pmax: 10 bar. Coils 24VDC, I nominal 0.8A.
_*Necessary connector for coil HY9303_
