Control Modules, Sensors and Electrical Accessories - Components
HYDROMODEL-200 offers an extensive selection of components to meet all your hydraulic / electrohydraulic learning needs and create your custom compositions.

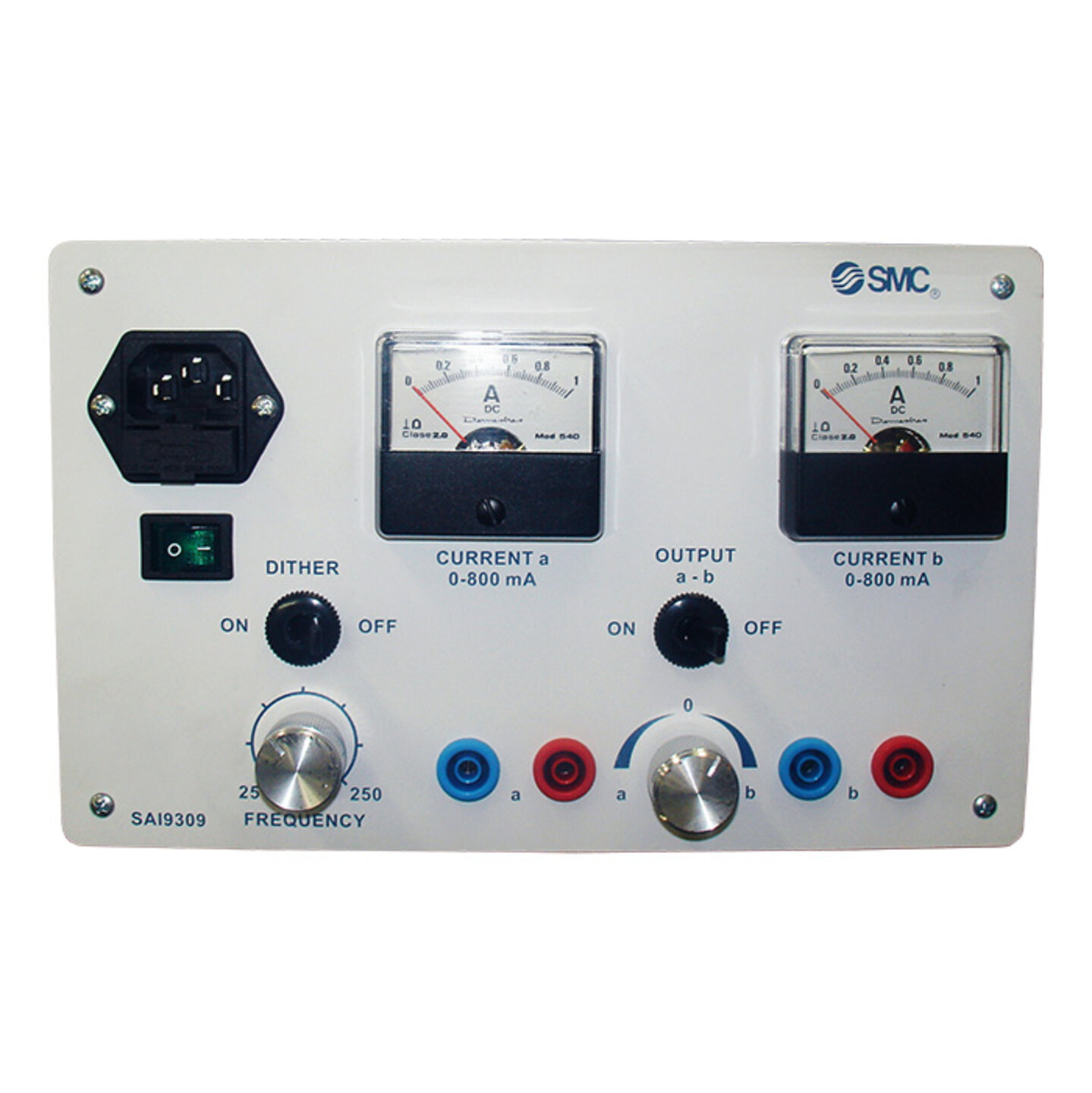

Power supply module for two proportional coils
HY9309-XX*:
- Electronic unit for entering the electric signals to the proportional valves. Manual control.
- Potentiometer for controlling the output intensity to coils a or b.
- Dither frequency on/off switch and Dither frequency value adjustment.
- I max. = 0.9 A per coil.
- 2 ammeters for displaying the current via coils a or b.
- Overload electronic internal protection.
_*Configurable part number. More information: How To Order or Product configurator._

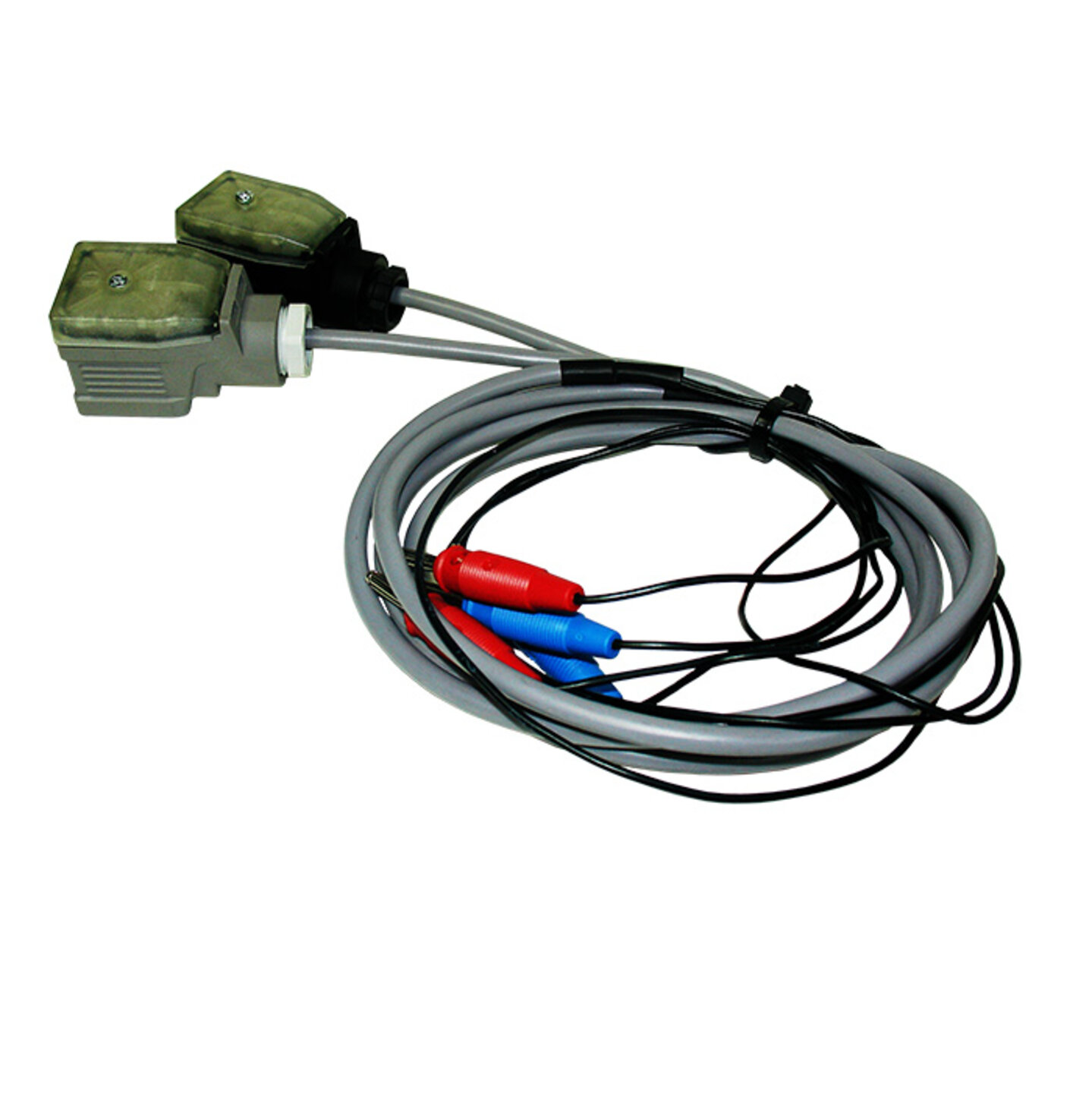

Set of connectors for proportional coils
HY9303:
- Connectors with LED indicators (screen type). Long. 1.5 m.
- It includes 2 units (1 grey connector and 1 black connector).
Power supply 24 V
HY9040-XX*:
- Voltaje input: 110V - 240VAC.
- Output: 24VDC / 5A.
- Short-circuit protection.
- Input switch and LED display.
- Built-in power cable.
- ø4 mm terminals for snap conection cables.
- Insulating box with screen printed lid.
_*Configurable part number. More information: How To Order or Product configurator._
Set of pushbuttons
HY9042:
- 2 pushbuttons with spring return.
- 2-position selector.
- 4 mm female electrical safety connectors.
- Insulating box with screen printed lid.

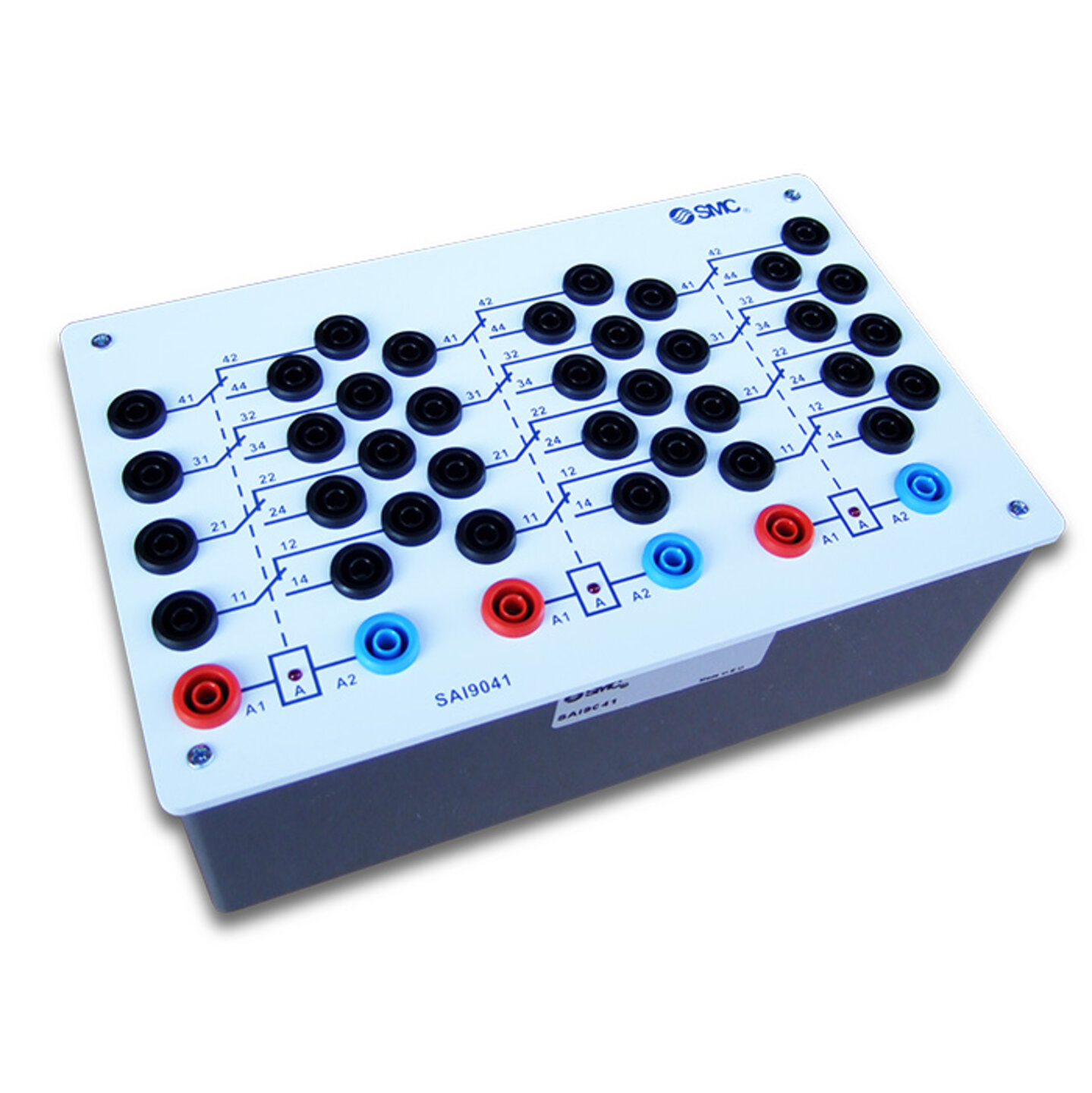

Set of 3 relays
HY9041:
- It includes three relays with coil 24V and 4 switchable contacts.
- LED activated relay display.
- 4 mm female electrical safety connectors.
- Insulating box with screen printed lid.

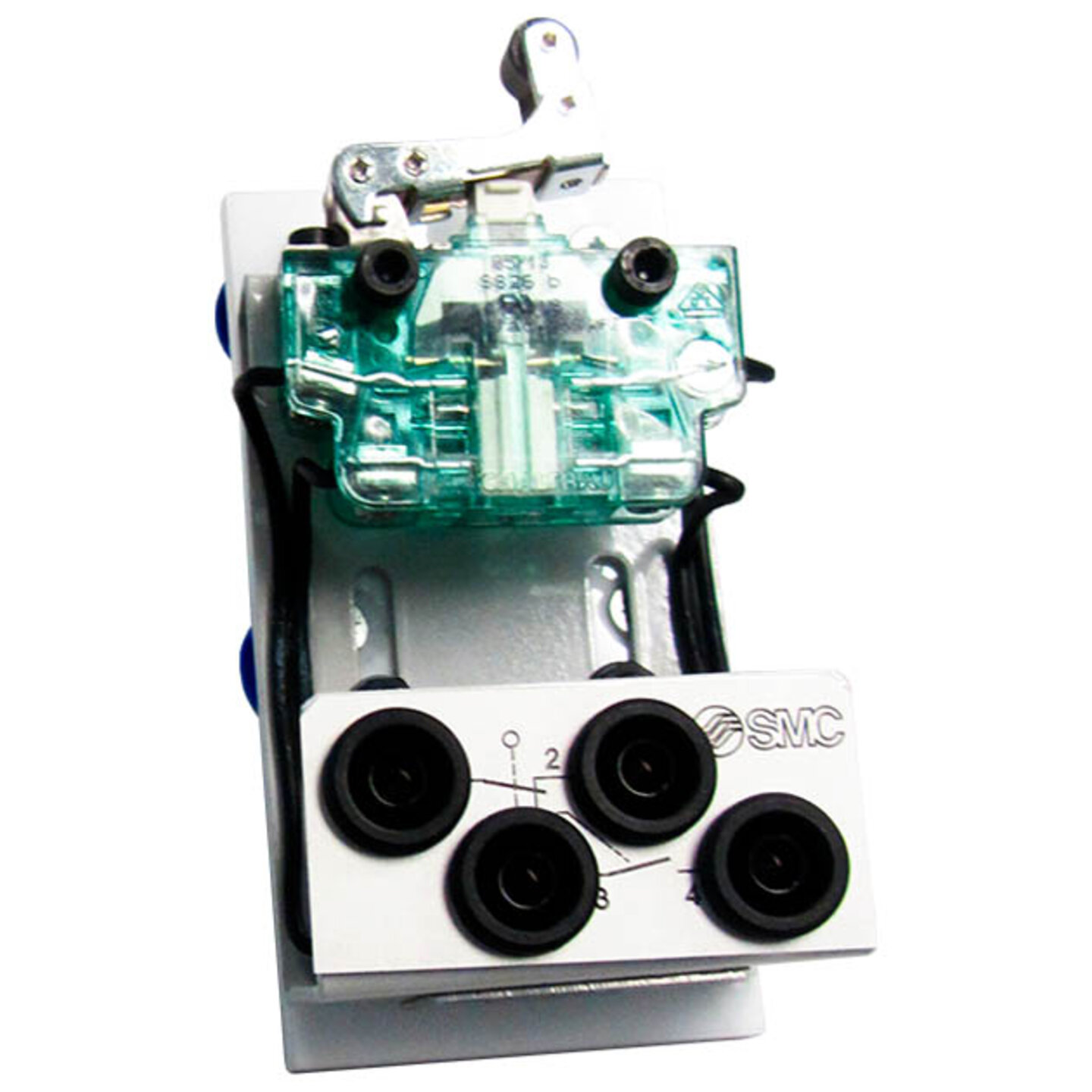

Hydromodel end of stroke electric right
HM9231
- Roller actuation.
- One NO contact and one NC contact.
- Transparent body and reversible roller position.
- ø4 mm safety female connectors.

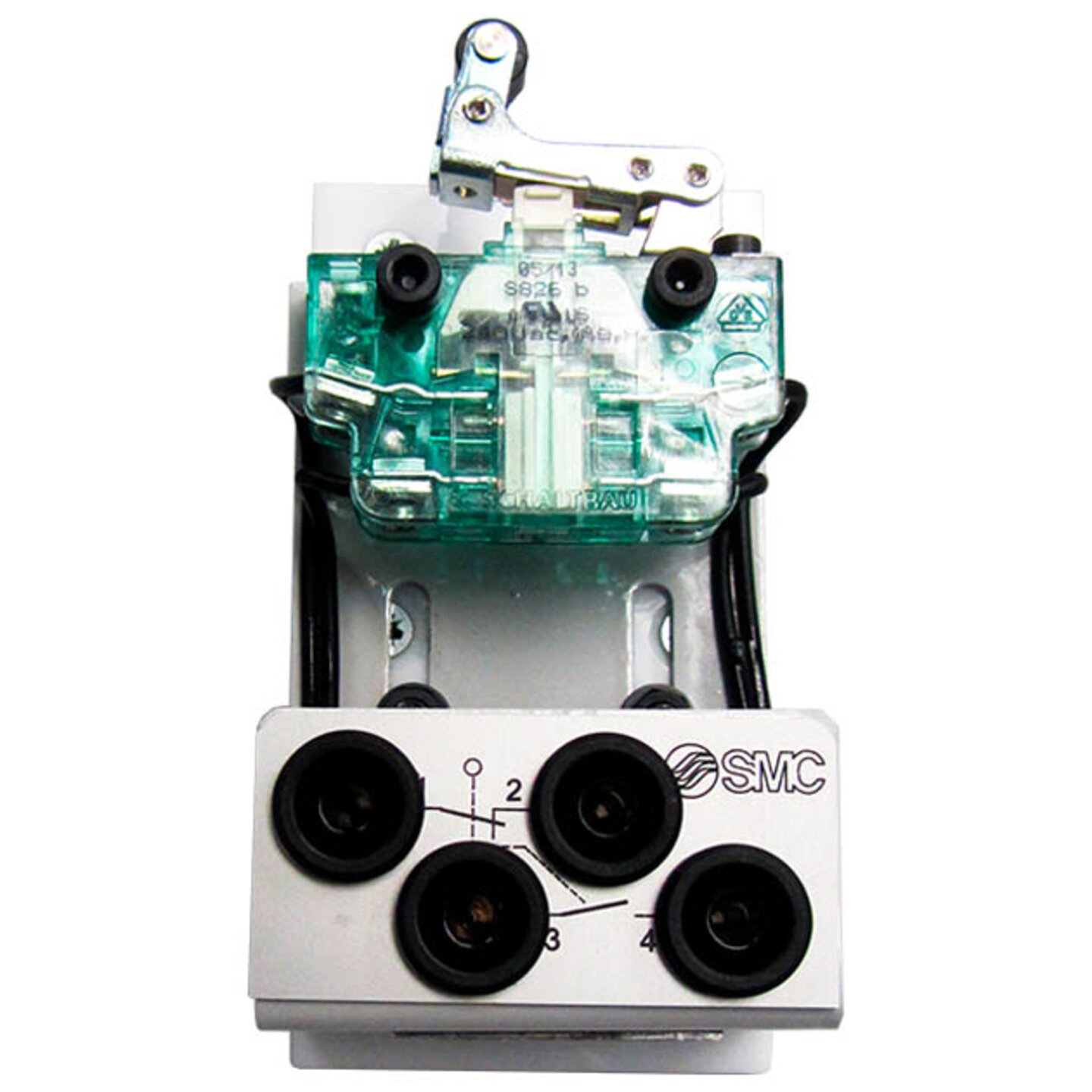

Hydromodel end of stroke electric left
HM9231-00-0008
- Roller actuation.
- One NO contact and one NC contact.
- Transparent body and reversible roller position.
- ø4 mm safety female connectors.

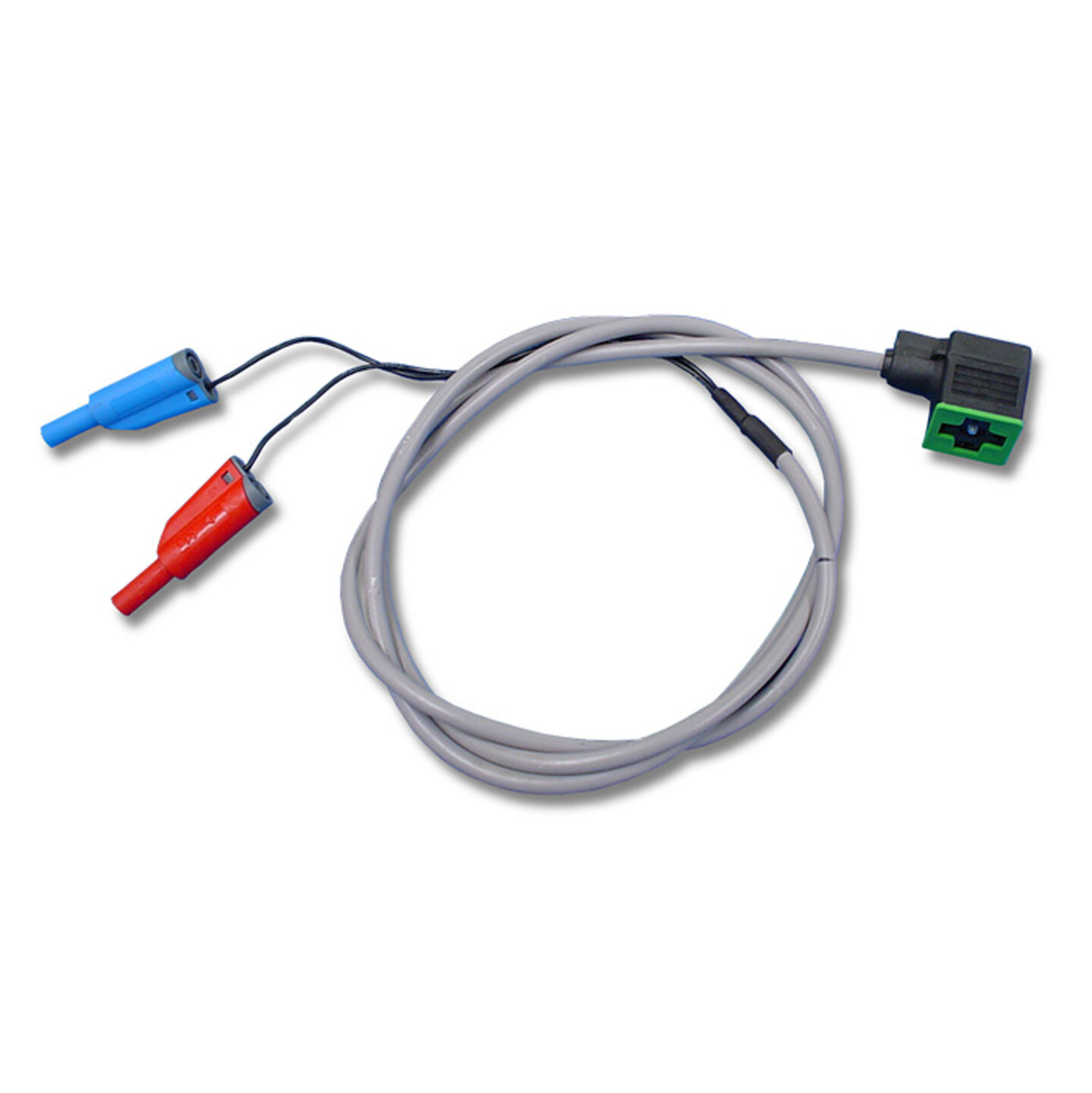

Set of connectors + cable for solenoids
HY9272:
- Male connectors 4 mm.
- Cable 1.5 m.
- Ready to connect in solenoid vale coils.
- It includes 3 units (1 black connector and 2 grey connectors).
- LED indicators.

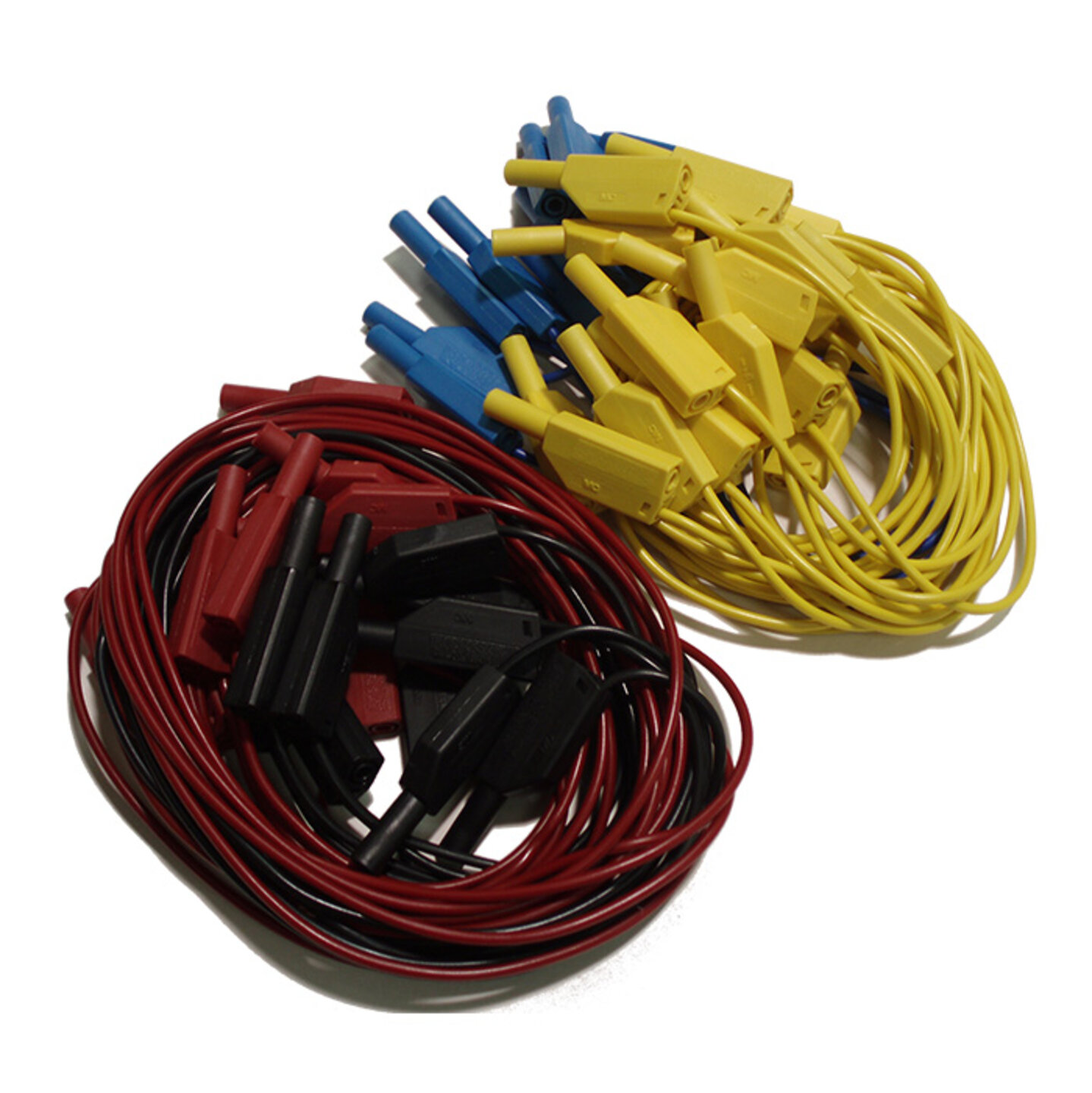

Set of cables with electric connector 4mm.
HY9046:
- 5 red cables 1.5 m.
- 5 black cables 1 m.
- 10 yellow cables 0.5 m.
- 5 blue cables 0.25 m
