Actuators - Components
HYDROMODEL-200 offers an extensive selection of components to meet all your hydraulic / electrohydraulic learning needs and create your custom compositions.
Double-acting cylinder
HM9412
- ø20/ø10 x 58mm stroke.
- Pmax: 10 bar.

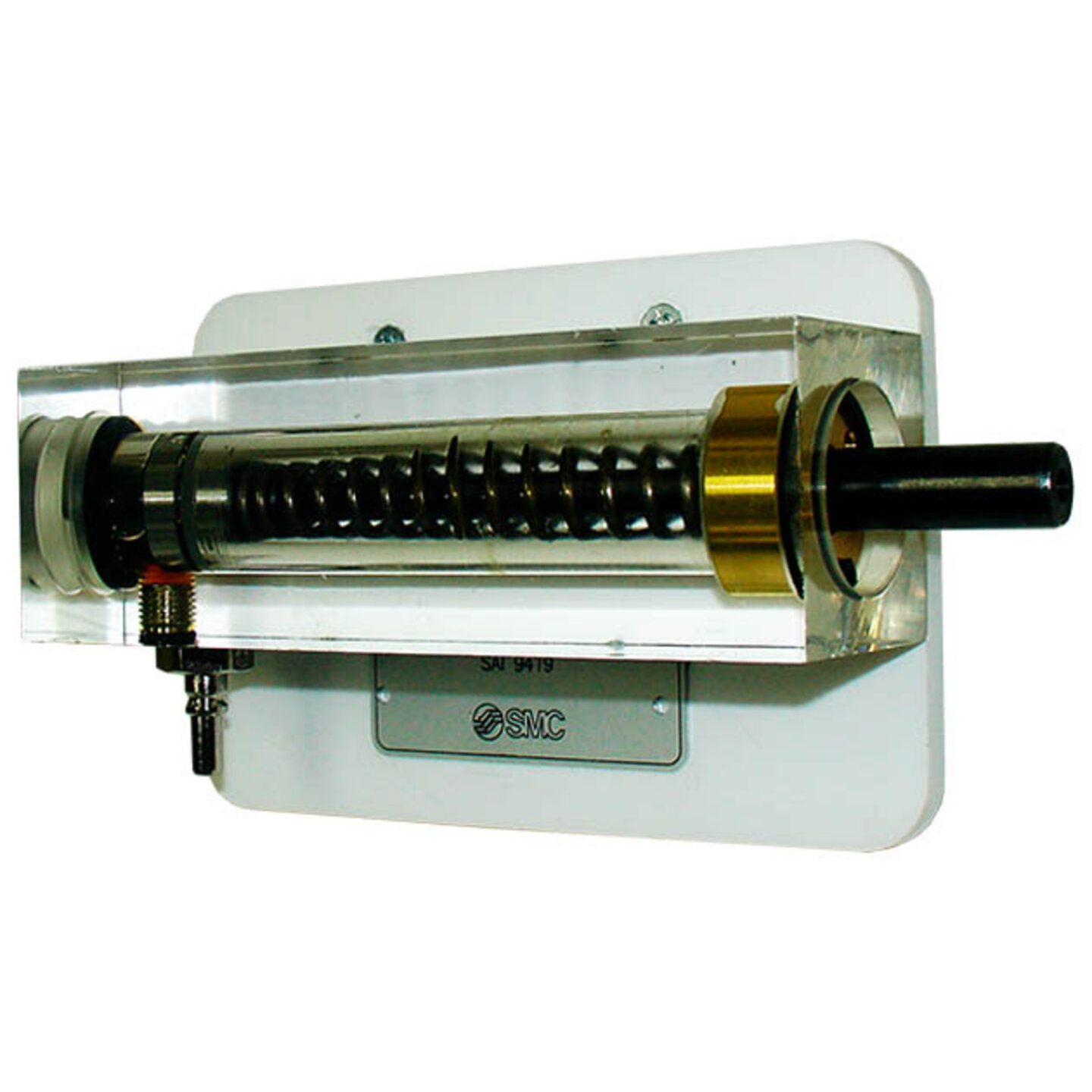

Single-acting cylinder
HM9419
- ø20/ø10 x 40mm stroke. Spring return.
- Pmax: 10 bar.

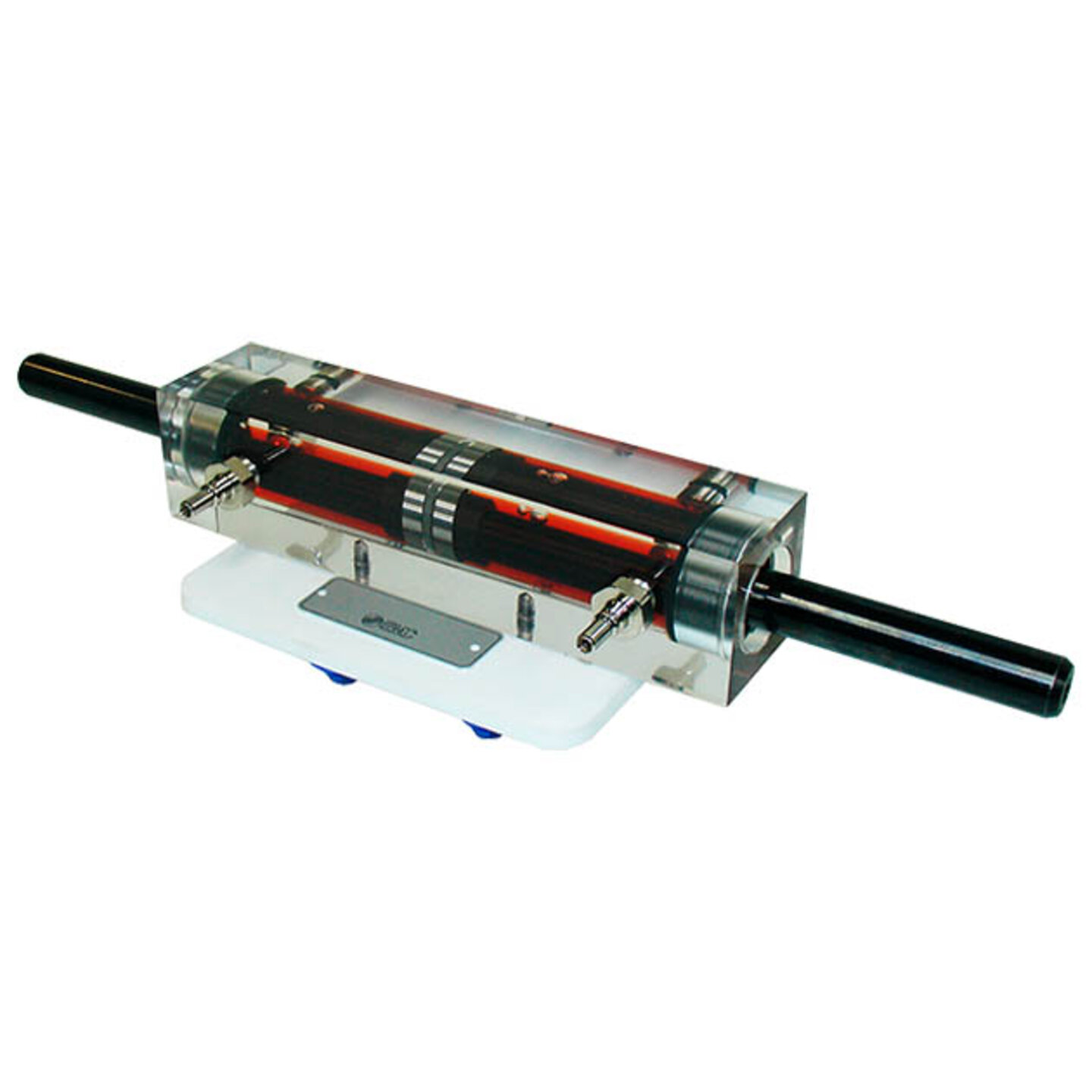

Double rod cylinder
HM9457
- ø14/ø20/ø14 x 100mm stroke.
- Pmax: 10 bar.

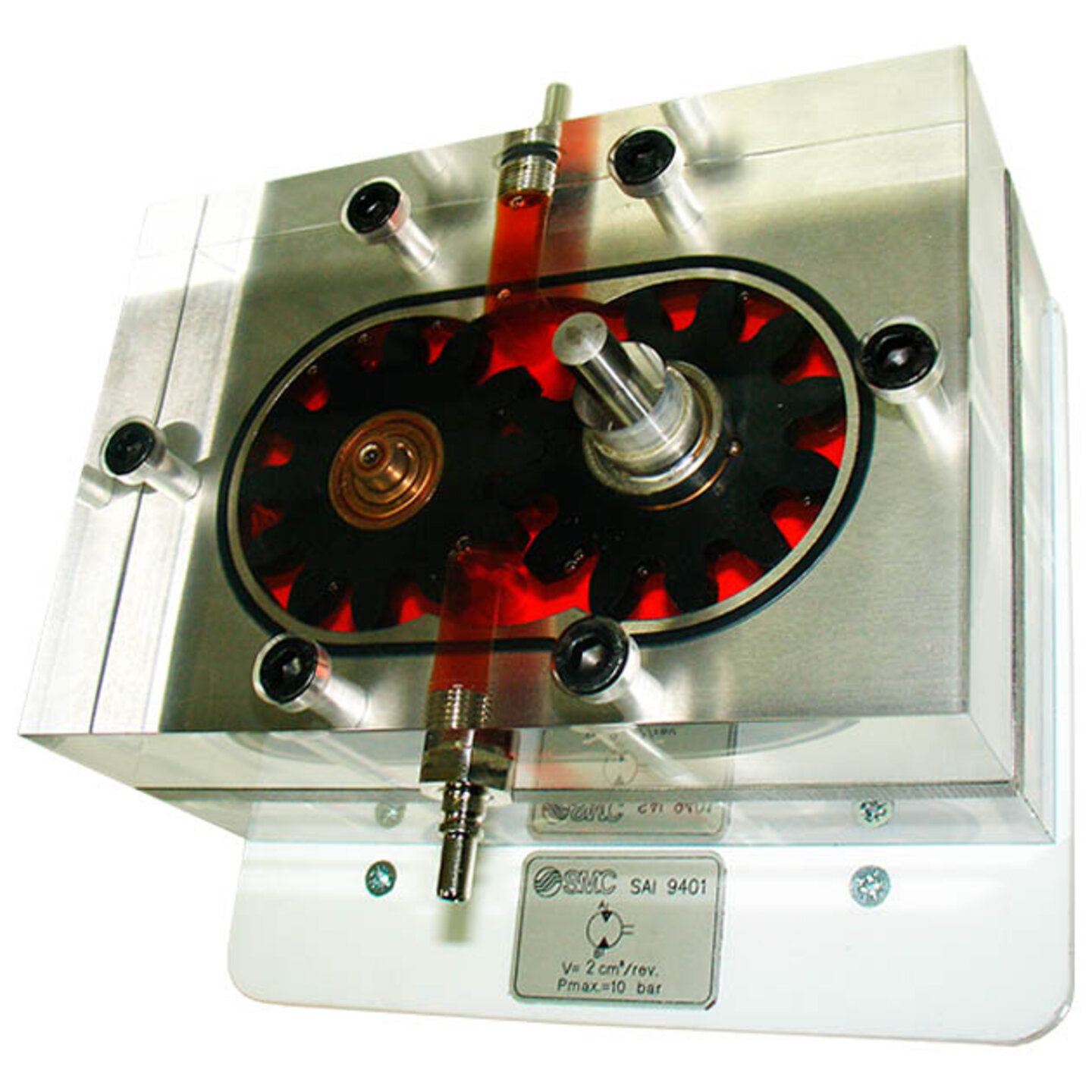

External gear motor
HM9401
- Bidirectional, external gear.
- Two gears with 12 teeth and one shaft.

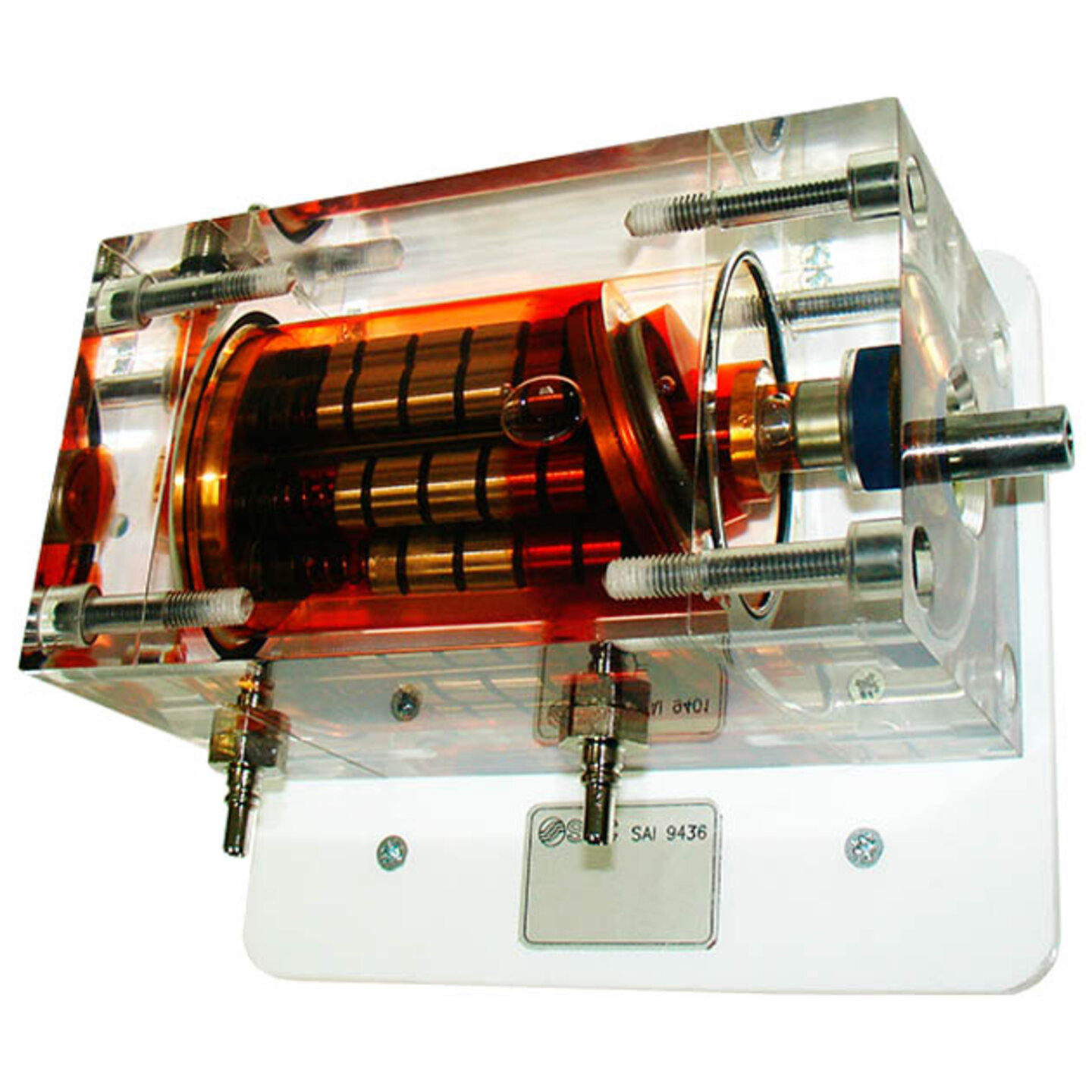

Axial piston motor
HM9436
- Bidirectional, axial piston type.
- 7 metallic pistons Ø12 acting on an inclined plane with drainage.
- With A, B, and L drainage connections.

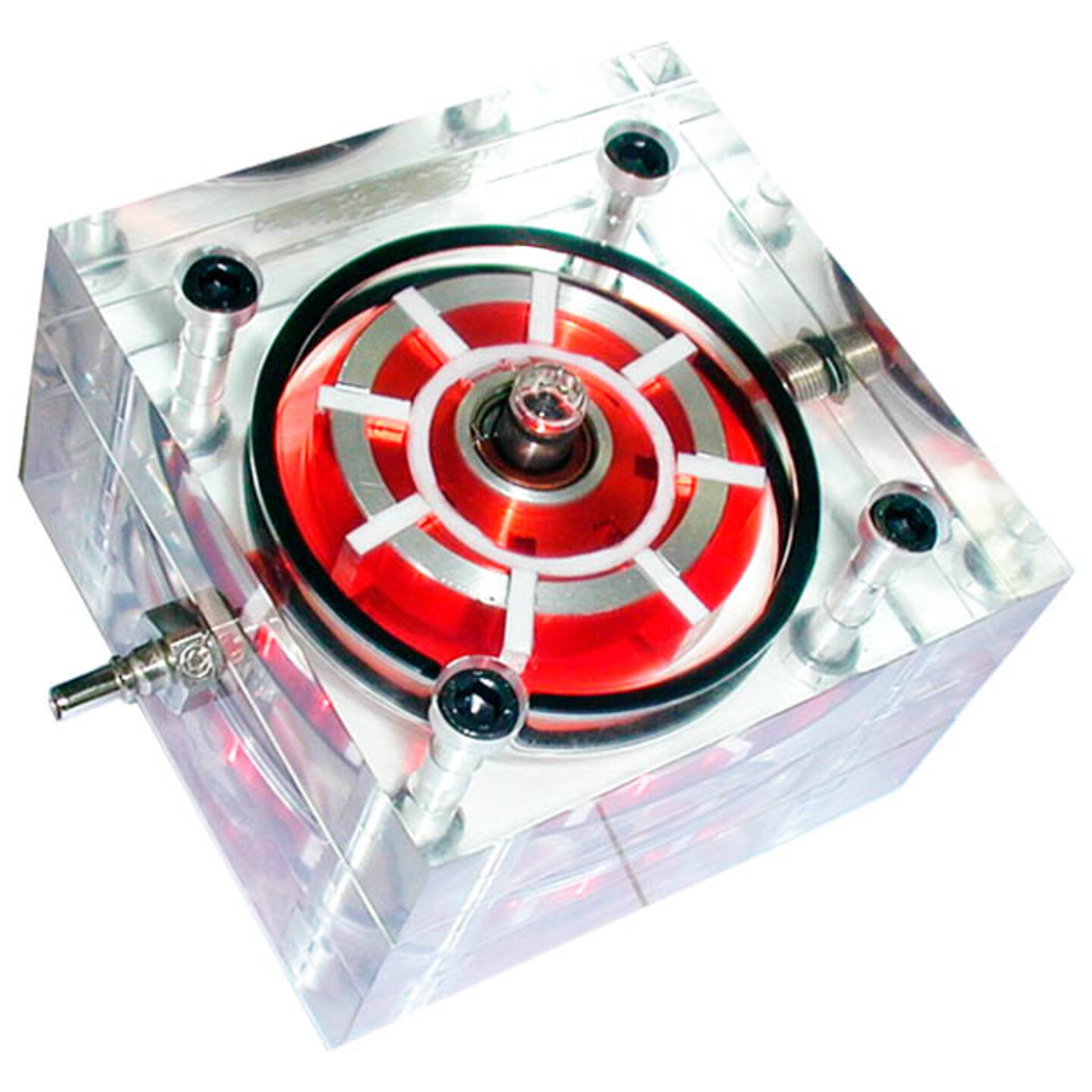

Vane motor
HM9435
- Bidirectional, vane type with one shaft. 8 vanes acting on an eccentric rotor.

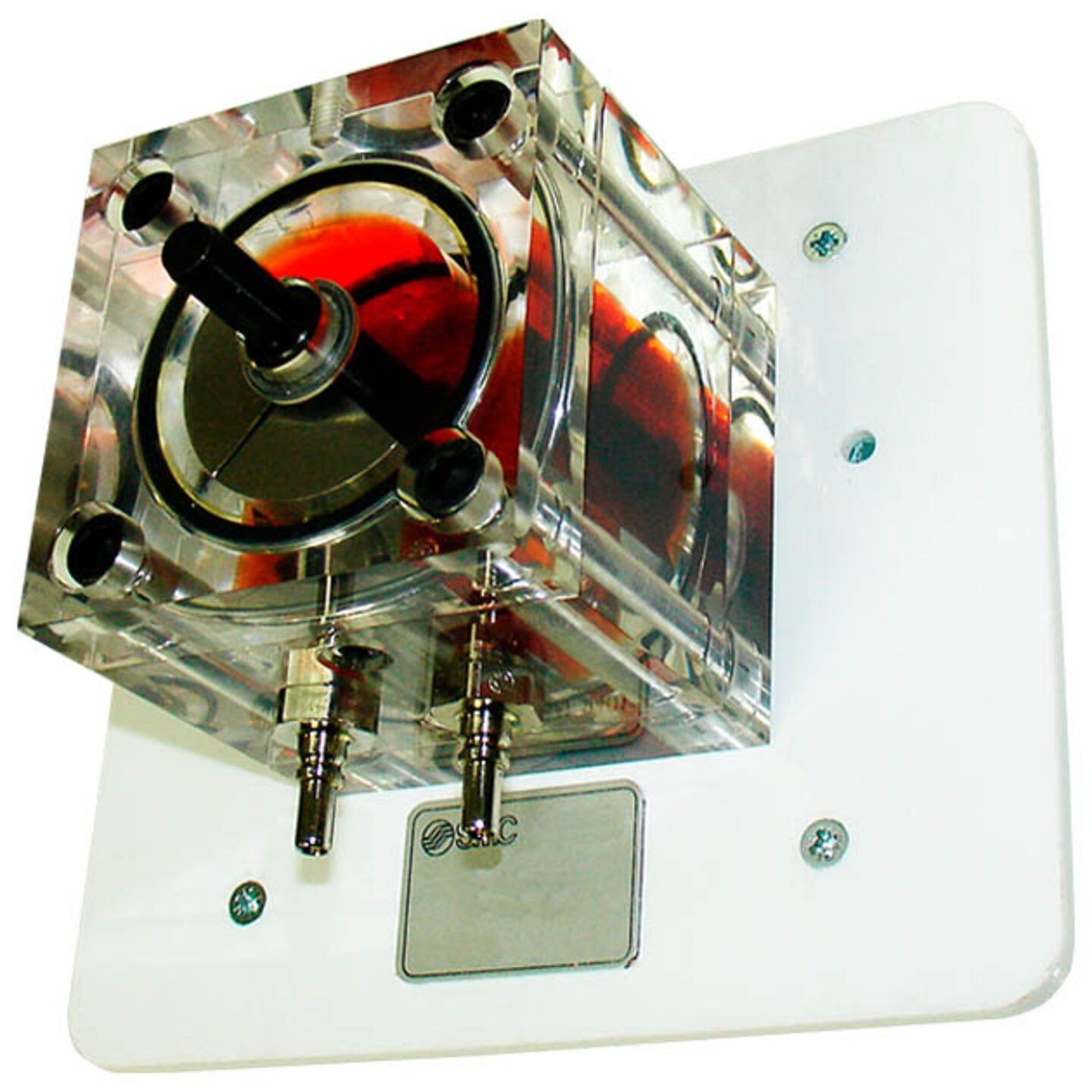

Oscillating motor, 180º swing angle
HM9438
- Bidirectional oscillating.
- 180º swing angle with one shaft.
