autoSIM-200 - Automation Simulator
autoSIM-200 is a software for training in automation technologies that allows the user to try his / her programs on a virtual system before applying them to a physical system.
autoSIM-200 - Automation Simulator
autoSIM-200 is a software for training in automation technologies that allows the user to try his / her programs on a virtual system before applying them to a physical system.
autoSIM-200 provides dynamic design and simulation plus control of 2D and 3D virtual machines (predefined by the user or developed by SMC International Training). Includes a virtual PLC to control the circuits / models under simulation and allows communication with our range of training systems.
autoSIM-200 provides dynamic design and simulation plus control of 2D and 3D virtual machines (predefined by the user or developed by SMC International Training). Includes a virtual PLC to control the circuits / models under simulation and allows communication with our range of training systems.
Design and simulation
With autoSIM-200, it is possible to carry out dynamic, multi-colour simulations using pneumatic, electropneumatic, hydraulic, electrohydraulic, electrical and electronic circuits. It is also possible to carry out mathematical models of systems and acquire and process electrical signals (instrumentation).
Library component categories are displayed by means of drop-down menus, showing individual standardised symbols. It includes conventional and proportional pneumatic and hydraulic valves.
autoSIM-200 can inter-connect different blocks (Virtual PLC, 2D, 3D models, etc.).
Programming
autoSIM-200 can be used to create Grafcet diagrams, Ladder, Logigramme (logic gates) and function blocks with structured text. By running the simulation, it is possible to monitor and control the application step by step.
It can also generate symbol tables to address variables and create timers, counters, etc.
Monitoring and control
Using autoSIM-200, it is possible to monitor and control 3D processes. Using a data acquisition card (SAI2443), physical inputs and outputs can be supervised and controlled.
This software can import three dimensional models from 3D Studio and Solidworks. SMC International Training has product applications from the range, ready to run with the system.
Communication with real, physical equipment is possible through the OPC server and I/O cards.
autoSIM-200 versions
autoSIM-200 comes in 2 versions:
- **autoSIM-200**: This is the standard version. An I/O card or an OPC server is used for communication.
- **autoSIM-200 ADVANCED**: Includes all the functional features of autoSIM-200 along with post-processors that can transfer and monitor the program generated in the simulation to the following brands of PLC: Siemens, Omron, Allen Bradley, Schneider and Mitsubishi.
**Try autoSIM-200 for 40 days!**
- **autoSIM-200**: This is the standard version. An I/O card or an OPC server is used for communication.
- **autoSIM-200 ADVANCED**: Includes all the functional features of autoSIM-200 along with post-processors that can transfer and monitor the program generated in the simulation to the following brands of PLC: Siemens, Omron, Allen Bradley, Schneider and Mitsubishi.
**Try autoSIM-200 for 40 days!**
autoSIM-200 Quick Guide
Download the autoSIM-200 Quick Guide to learn how to use it.
autoSIM-200 includes…
3D applications, 2D applications and Digital models
Are you aware of the existing options of 3D applications, 2D applications and digital models available to complete your learning with the autoSIM-200 simulation software?
_*autoSIM-200 or autoSIM-200 ADVANCED is required._
_*autoSIM-200 or autoSIM-200 ADVANCED is required._
3D Applications
SMC International Training has a series of 3D applications from real equipment, ready to be run in the system.
**Simulations are available for the following products: FAS-200, FAS-200 SE I4.0, FMS-200, FMS-200 SE I4.0, MAS-200, IPC-200, MAP-200 y AUTOMATE-200.**
2D Applications
autoSIM-200 features 2D simulations of the basic technology trainers to be run in the system.
The proposed practical activities include a document with the list of the necessary components, the sequence of realisation, the solution of the simulated circuit, the solution of the practical on the SMC International Training hardware (*only available in some practices) and the explanation of the theoretical questions.
Pack of available simulations of the physical equipment: **PNEUMATE-200, PNEUTRAINER-400, HYDROTRAINER-200, HYDROMODEL-200, ICT-200 y BEMATE-200.**
Digital models
autoSIM-200 provides digital models to program from the PLC programming environment and simulate your program on the digital model. The existing digital models are from the **MAP-201, MAP-202, MAP-203 and MAP-204 systems for Siemens and Allen Bradley PLCs **.
PC minimum requirements
PC compatible computer with Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 and Windows 11. 512MB free memory, graphic board (1024 x 768 x 65536 colour min.)
With this system you could...
Technologies vs Skills

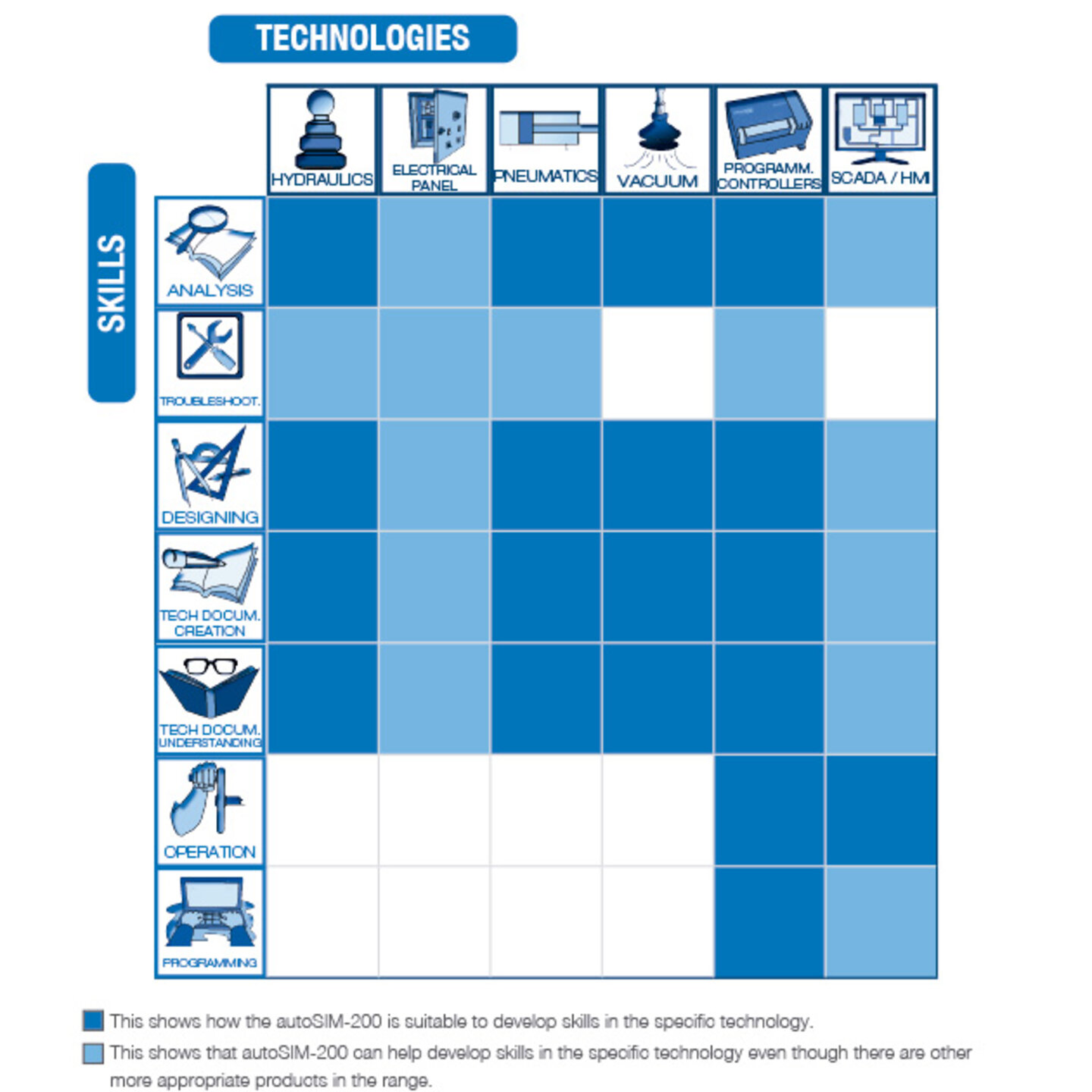

autoSIM-200 comes up with different practical activities targeting skills in the technologies featuring in the table.
Pneumatics
Within physics, pneumatics is part of the mechanical branch and studies the balance and movement of gaseous flows. It is also the technology that uses compressed air as a mode of transmission of the energy necessary to move and operate mechanisms.
Hydraulics
It is the branch of physics that studies the behavior of liquids based on their specific properties. In other words, it observes and analyzes the mechanical properties of liquids depending on the forces to which they are subjected.
Vacuum
"A vacuum is space devoid of matter. The word is derived from the Latin adjective vacuus (neuter vacuum) meaning "vacant" or "void". An approximation to such vacuum is a region with a gaseous pressure much less than atmospheric pressure. In industry, vacuum allows a temporary bond to be generated between the machine and the workpiece. This makes it possible to move light elements in production."
Distribution Panel
Is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.
Programmable Controlers
An electronic control system and associated instrumentation used for industrial process control. Such as, supervisory control and data acquisition (SCADA) systems, or DCSs, and programmable logic controllers (PLCs).
SCADA HMI
SCADA (supervisory control and data acquisition) is a control system architecture comprising computers, networked data communications and graphical user interfaces for high-level supervision of machines and processes.
autoSIM-200 - FAQ
Discover the video tutorials that show, step by step, how to perform common actions such as installing an autoSIM-200 licence or importing a Solidworks CAD file into autoSIM-200.
Product configurator
Do you want to request a quote on this product and get the specifications and technical descriptions of it?
Configure your ideal system through our product configurator and get all the related information in just a couple of clicks.
