HAS-200 Special Edition - Industry 4.0
The HAS-200 Special Edition system with more technologies of Industry 4.0 allows the development of the most demanded competences in a highly automated environments of Industry 4.0.
HAS-200 Special Edition - Industry 4.0
The HAS-200 Special Edition system with more technologies of Industry 4.0 allows the development of the most demanded skills in a highly automated environments of Industry 4.0. This technologically advanced didactic equipment allows the acquisition of the required skills for the different professional sectors. In addition to the technologies implemented in the standard edition of this system, the special version includes additional technologies that make this equipment the ideal solution to emulate the reality of a smart factory with the latest 4.0 technologies.
Image gallery

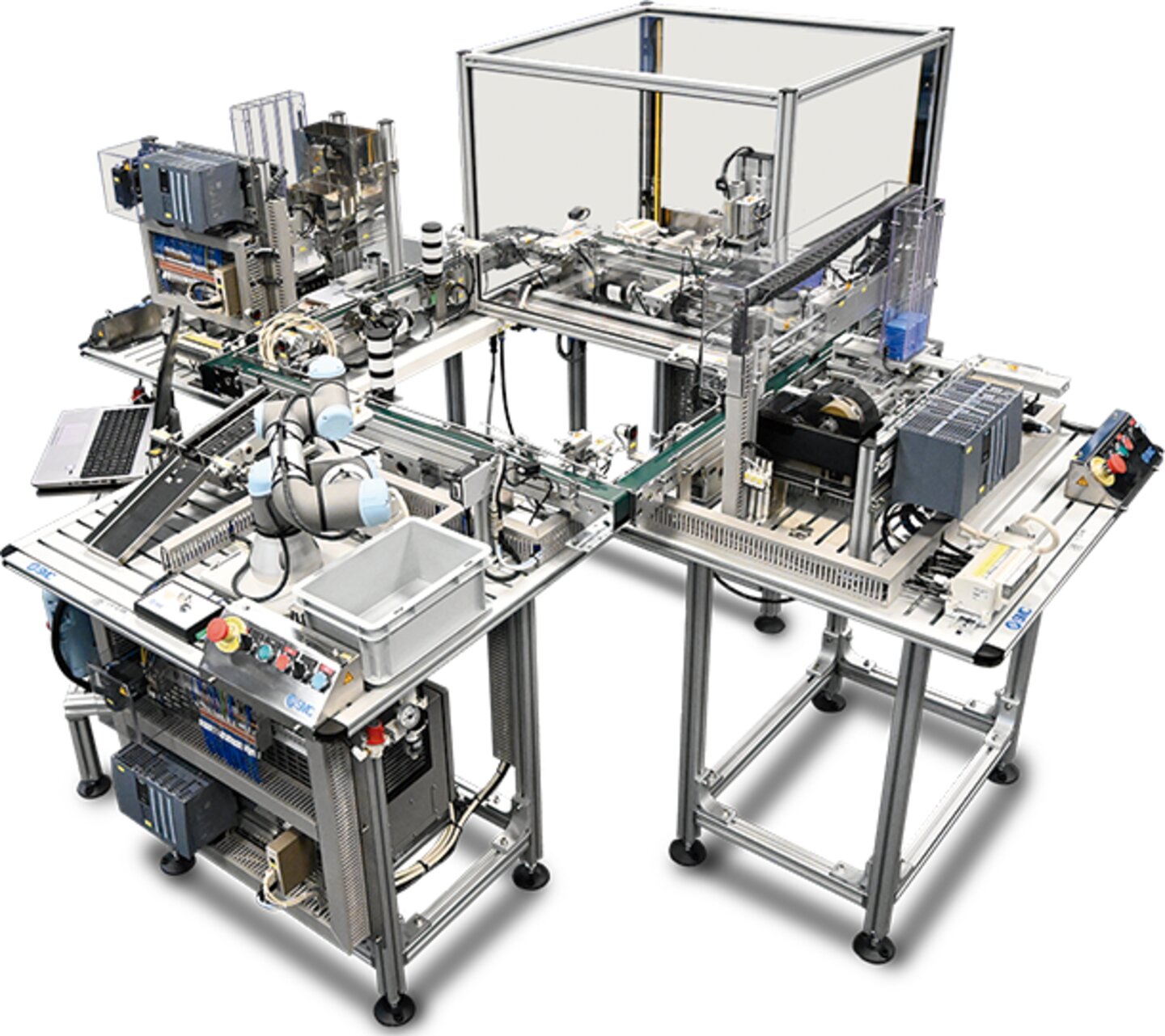

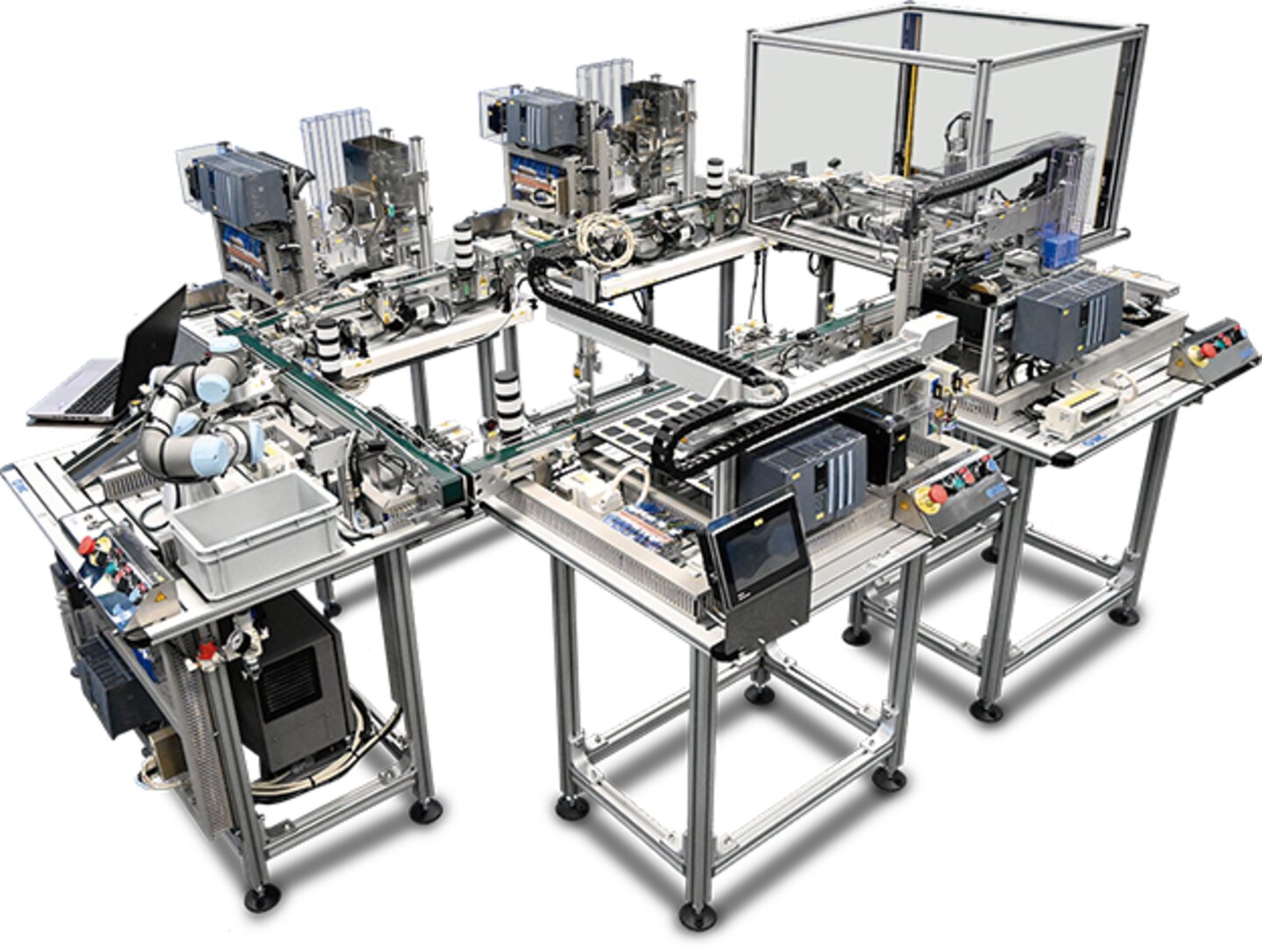

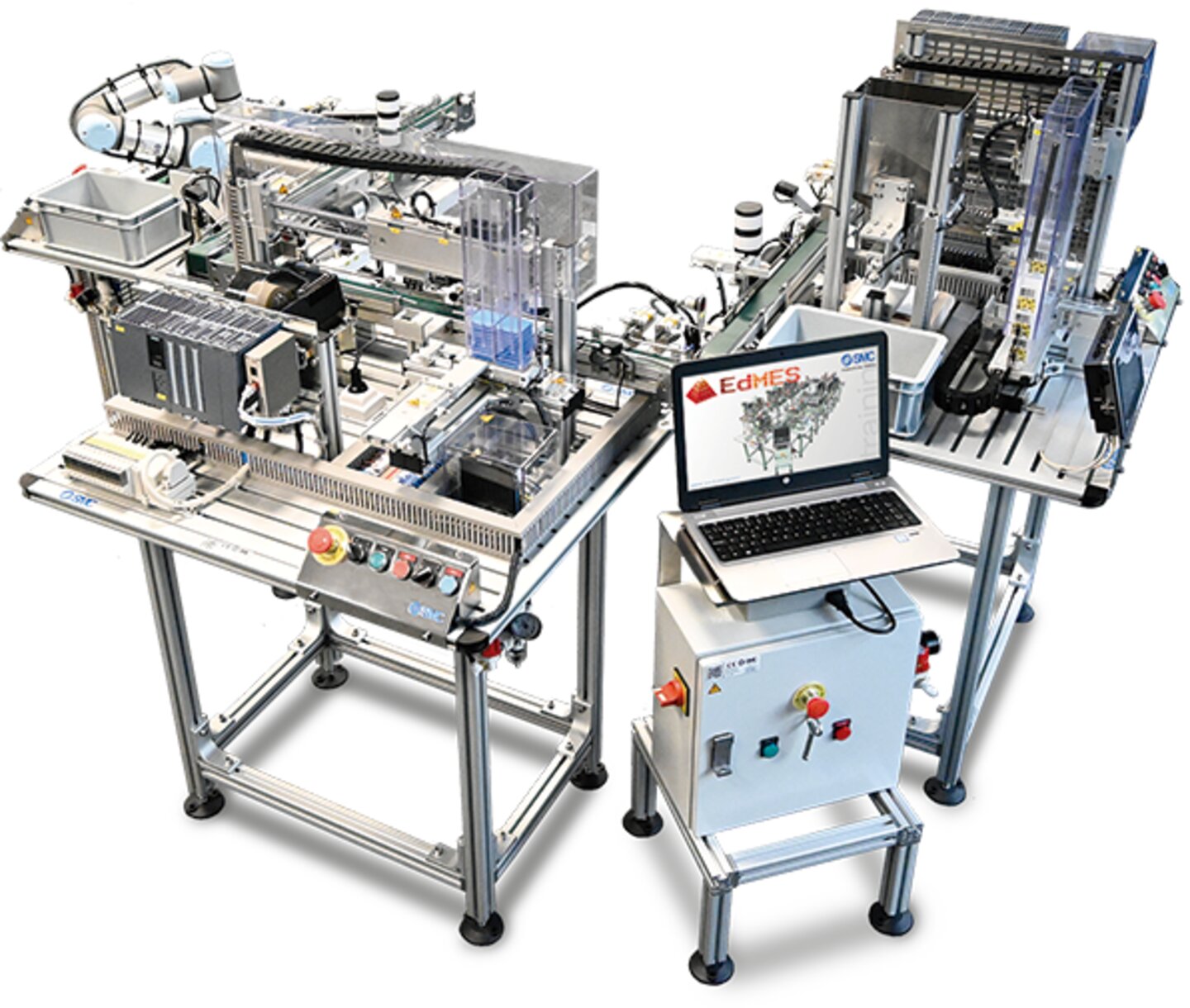

Different configurations
Complete the configuration that best suits your needs.
Stations

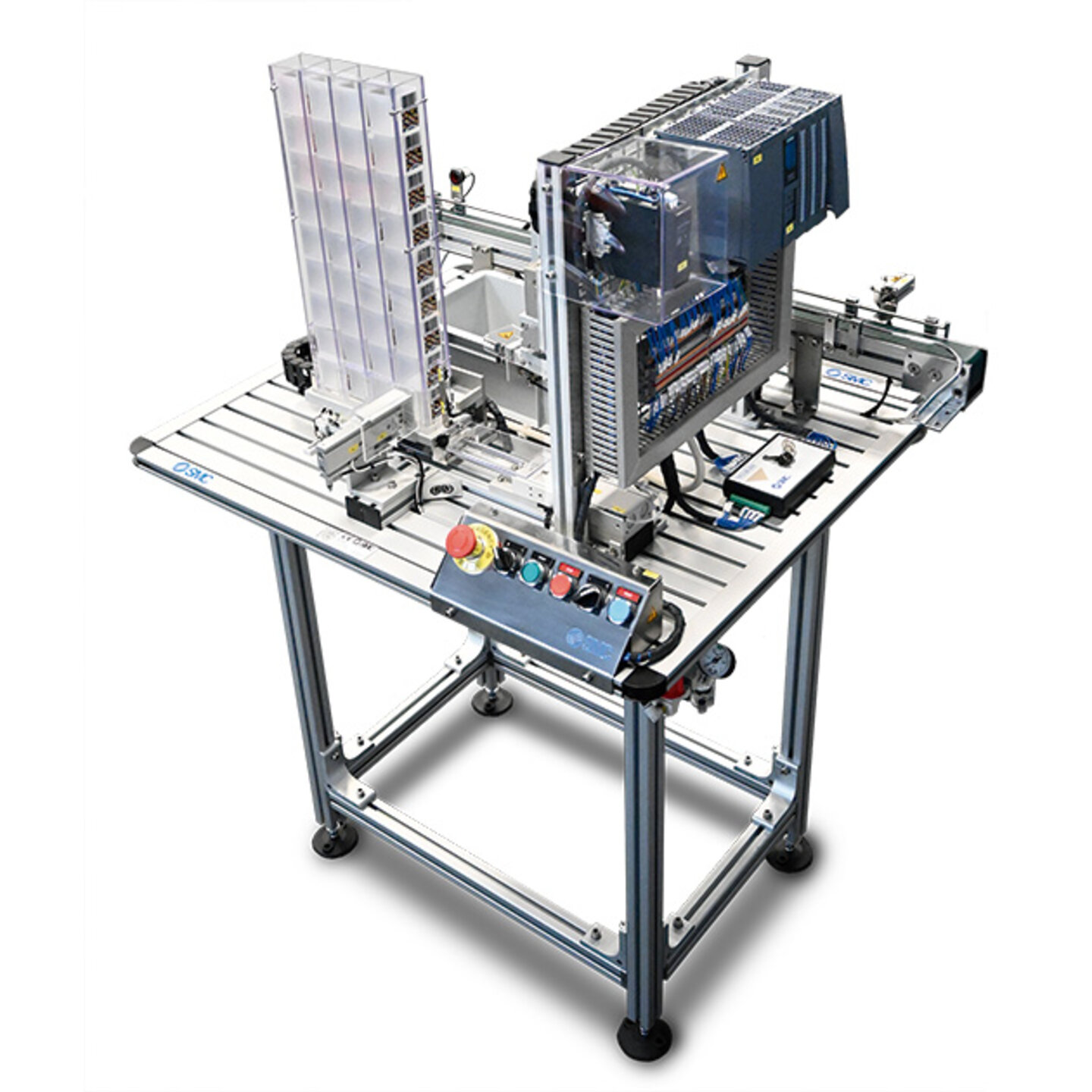

Each of the HAS-200 system stations carries out part of the process.
All the stations have the following common elements: Power supply, anodised aluminium structure, control keypad, solenoid valve block, labels for cables, electric connection terminals, speed controllers, three-colour indication light, container passage stoppers, bar code reader, manual air cut-off valve, Ethernet communication, conveyor belt with DC motor, queue detection photocell, control PLC* and user manual and practice manual.
_*Options: PLC Omron, Allen Bradley or Siemens._
All the stations have the following common elements: Power supply, anodised aluminium structure, control keypad, solenoid valve block, labels for cables, electric connection terminals, speed controllers, three-colour indication light, container passage stoppers, bar code reader, manual air cut-off valve, Ethernet communication, conveyor belt with DC motor, queue detection photocell, control PLC* and user manual and practice manual.
_*Options: PLC Omron, Allen Bradley or Siemens._
What does our factory produce and deliver?

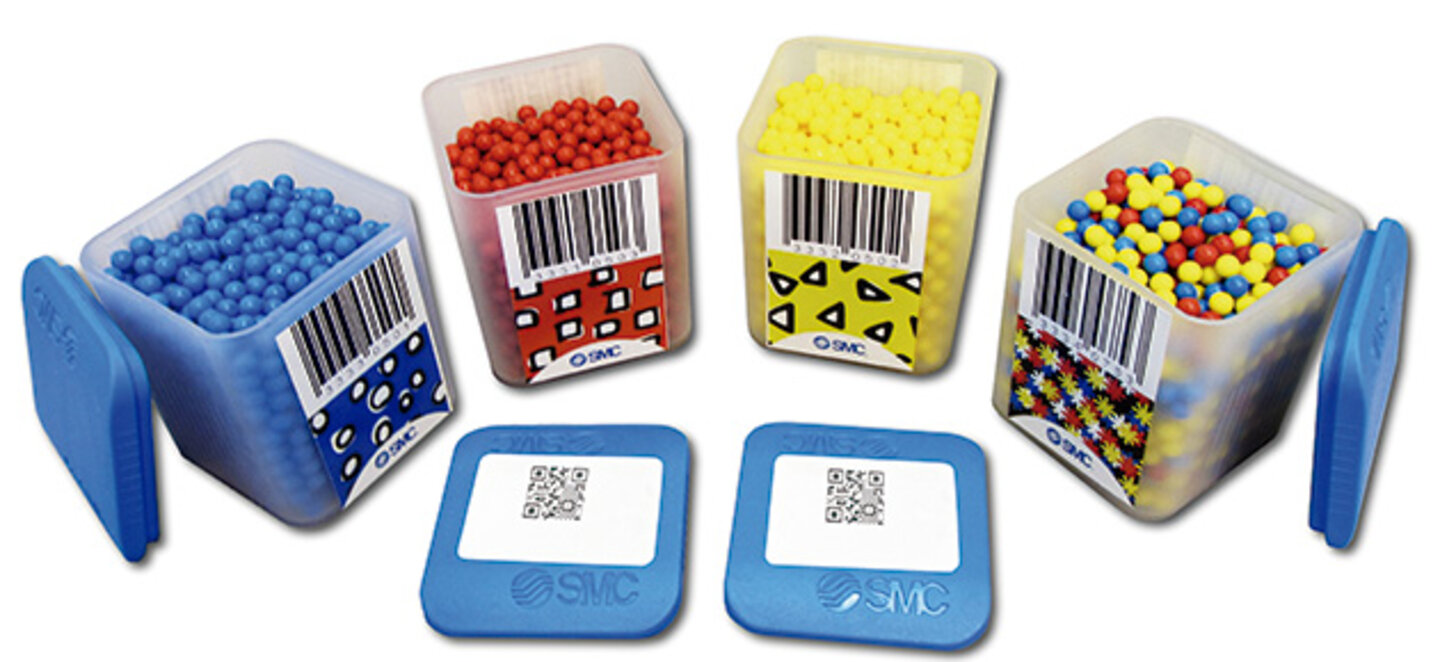

HAS-200 allows the user to manufacture 19 different products. The raw material includes containers with four types of label (red, blue, yellow and multi-coloured). Each label incorporates a barcode that allows the product to be identified throughout the process with the BCR readers included in each station. In addition, RFID technology has been added to several stations in the system, as well as a QR code printed on a label of unique content.
Within the process, both the material weight and height is measured. These two variables are stored in the database and allow the generation of historical data, control charts, etc. within the Statistical Process Control (SPC) module.
Within the process, both the material weight and height is measured. These two variables are stored in the database and allow the generation of historical data, control charts, etc. within the Statistical Process Control (SPC) module.
Ed-MES - Educational Manufacturing Execution System
EdMES is modular software that reproduces real situations and the most relevant functions associated with the “Manufacturing execution / management system”. All the modules have an ONLINE mode (control over the machine) and a TEACHING mode which allows the user to study concepts associated with a specific module.
With this system you could...
Technologies vs Skills
In addition to the technologies implemented in the standard edition of this system, the special version includes additional technologies that make this equipment the ideal solution to emulate the reality of a smart factory with the latest 4.0 technologies.

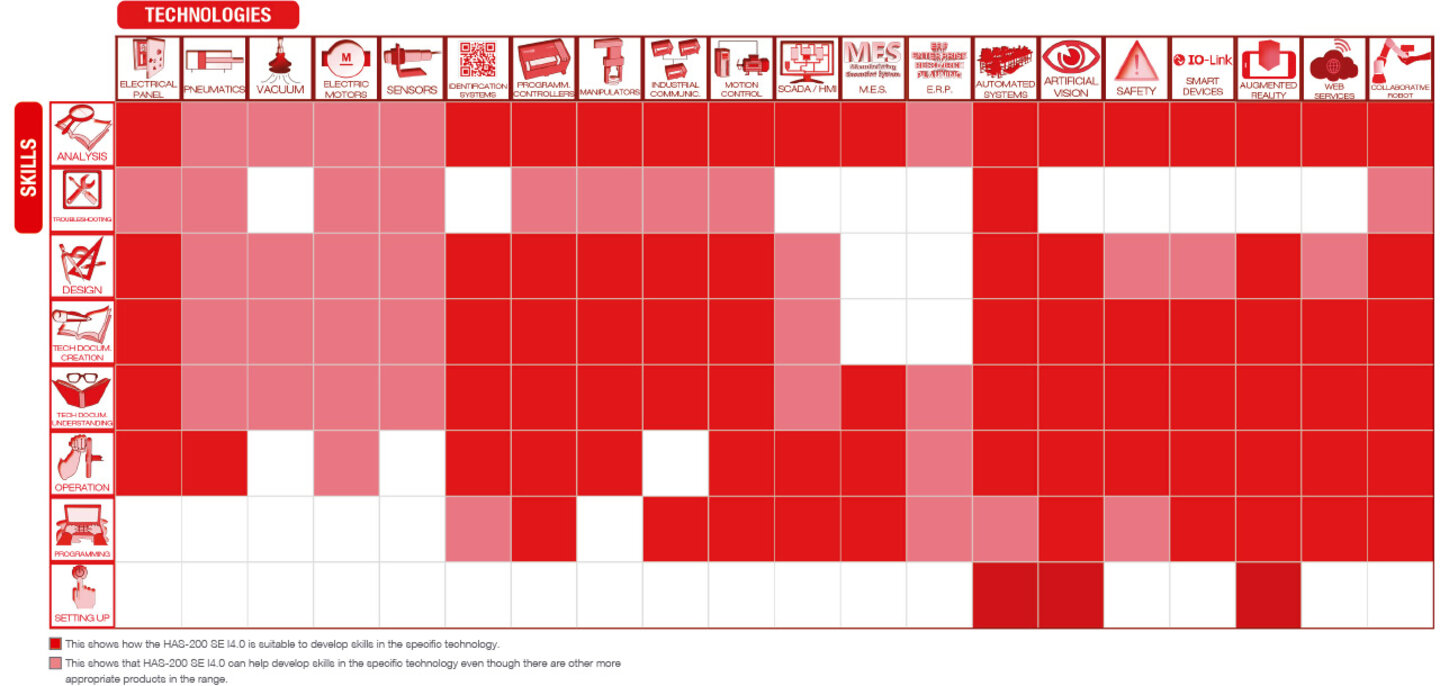

HAS-200 SE I4.0 comes up with different practical activities targeting skills in the technologies featuring in the table.
HAS-200 SE I4.0 comes up with different practical activities targeting skills in the technologies featuring in the table.
Identification Systems
Industrial coding is the process by which a unique identifier is assigned to each piece of equipment, product, item or system within a company. Industrial labels and other elements such as cards or signs offer a fast and reliable solution for the identification of equipment and facilities. They are systems such as RFID, BCR, NFC and QR.
Smart Devices
It is an electronic device, usually connected to other devices or networks through different protocols such as Bluetooth, NFC, Wi-Fi, 3G, X10, etc., which can work interactively and autonomously.

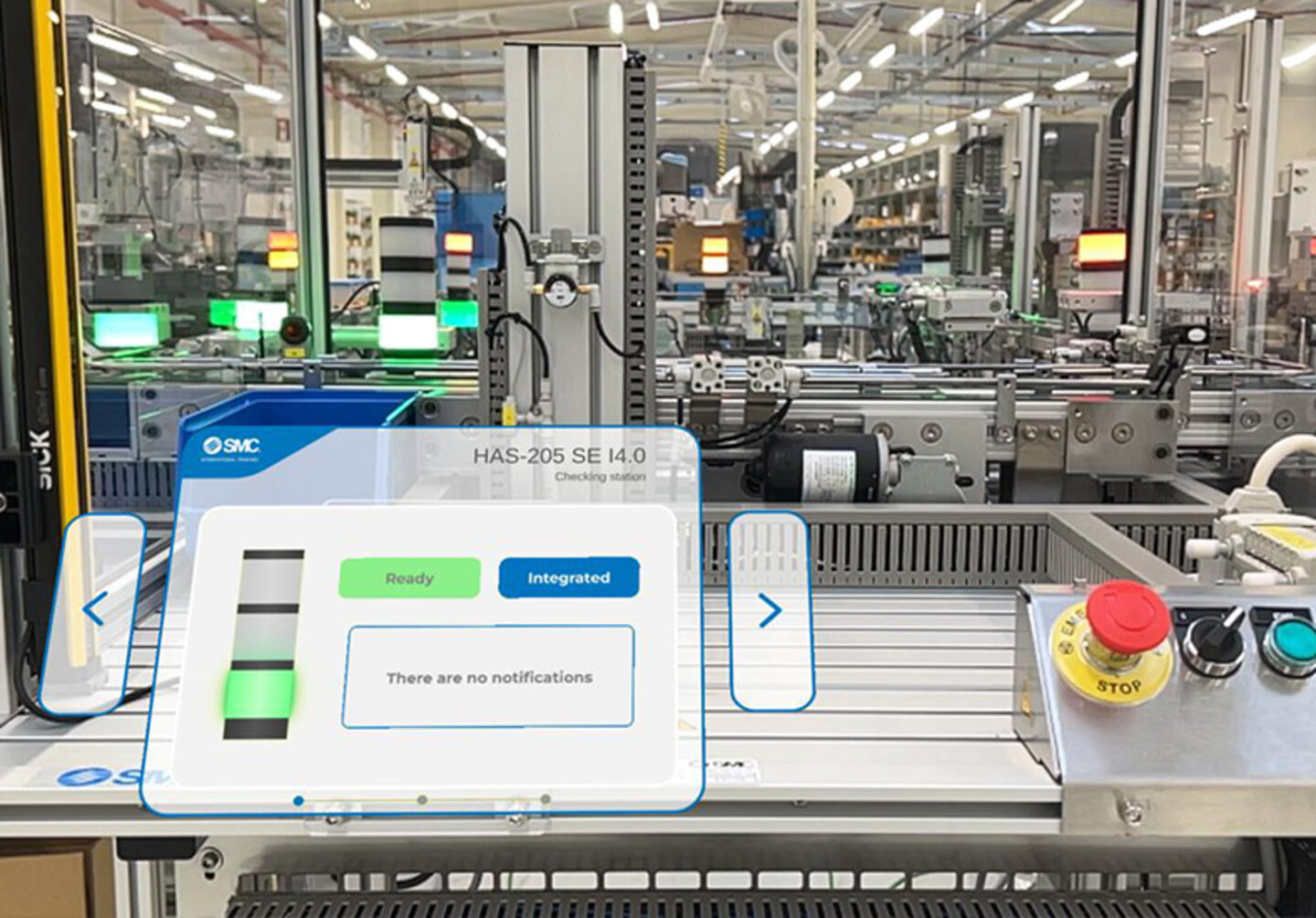

Augmented Reality
A set of technologies that allow a user to observe the real world with virtual graphical information added by means of a technological device. In this way, tangible physical elements are combined with virtual elements, thus creating an augmented reality in real time.
Collaborative Robots
Technology that allows repetitive, non-ergonomic or dangerous processes to be carried out, capable of working together with operators, without the need for safety systems and enclosures present in traditional robotic facilities.
Industrial Management System
They are integrated systems that not only optimize processes, but also enhance interdepartmental collaboration. This facilitates the implementation of global strategies, aligning all operations with organizational objectives.
Artificial Vision
It is a scientific discipline that includes methods for acquiring, processing, analyzing, and understanding real-world images in order to produce numerical or symbolic information so that they can be processed by a computer.
Safety
These technologies not only prevent accidents and protect workers, but also optimize production processes, reducing downtime and costs associated with incidents. The protection of machinery and the implementation of guards and physical barriers have become essential elements.
Web Services
A web service is a technology that uses a set of protocols and standards that serve to exchange data between applications. Different software applications developed in different programming languages, and running on any platform, can use web services to exchange data on computer networks such as the Internet.
Electric Actuators
Converts such an electrical input signal into the required form of mechanical energy. It is a type of transducer. There are two types of actuators: electro-mechanical and electro-hydraulic.
Programmable Controlers
An electronic control system and associated instrumentation used for industrial process control. Such as, supervisory control and data acquisition (SCADA) systems, or DCSs, and programmable logic controllers (PLCs).
HMI
The space where interactions between humans and machines occur. The goal of this interaction is to allow effective operation and control of the machine from the human end, while the machine simultaneously feeds back information that aids the operators' decision-making process.
Industrial Communications
Industrial communication refers to a data transmission system designed to enable communication between field devices, such as sensors, actuators, and controllers, and the monitoring and control systems in industry.
Distribution Panel
Is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.
Pneumatics
Within physics, pneumatics is part of the mechanical branch and studies the balance and movement of gaseous flows. It is also the technology that uses compressed air as a mode of transmission of the energy necessary to move and operate mechanisms.
Vacuum
"A vacuum is space devoid of matter. The word is derived from the Latin adjective vacuus (neuter vacuum) meaning "vacant" or "void". An approximation to such vacuum is a region with a gaseous pressure much less than atmospheric pressure. In industry, vacuum allows a temporary bond to be generated between the machine and the workpiece. This makes it possible to move light elements in production."
Electric Motors
An electric motor is a device that turns electrical energy into mechanical rotational energy through the action of magnetic fields generated in its coils. They are electric rotating machines composed of a stator and a rotor.
Sensors
A sensor is a device, module, machine, or subsystem that detects events or changes in its environment and sends the information to other electronics, frequently a computer processor. With advances in micromachinery and easy-to-use microcontroller platforms, the uses of sensors have expanded beyond the traditional fields of temperature, pressure and flow measurement.
Manipulator
It is the part of the robot that comes into contact with the parts when moving them, holding them or generating measurements.
Motion control
Motion control is a sub-field of automation, encompassing the systems or sub-systems involved in moving parts of machines in a controlled manner. Motion control systems are extensively used in a variety of fields for automation purposes, including precision engineering, micromanufacturing, biotechnology, and nanotechnology.
Enterprise Resource Planning
A specialized system that allows the unification and organization of all areas, that is, it allows the traceability of all processes and, therefore, gives way to the planning and optimization of resources.
Automated Systems
Automated systems are computer-based systems that perform tasks without human intervention or assistance. They are designed to operate automatically and continuously, often in response to predefined triggers or conditions. The use of automation has become increasingly popular across various industries, including manufacturing, healthcare, finance, transportation, and more.
