HYDROTRAINER-200 offers an extensive selection of components to meet all your hydraulic / electrohydraulic learning needs and create your custom compositions.
Distribution valve 2/2
HY9217:
- Manual drive. Spring reset. Normally opened.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
Distribution valve 3/2
HY9282:
- Manual drive. Spring reset.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
Distribution valve 4/2
HY9212:
- Manual drive. Spring reset.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
4/3 Manual acting valve, spring centered
HY9214:
- Manual drive. Spring reset. P and T connected in central position.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
Distribution valve 2/2 roller driven
HY9253:
- Distributor valve 2/2 for operation from an external actuator.
- Roller driven. Spring reset.
- Normally open.
- Includes cam and accessories for cylinder assembly.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
4/2 directional control valve, with mechanical interlock
HY9243:
- Bistable distributor valve 4/2
- Mechanical locking manual override.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
4/3 directional control valve. Manually operated. Closed mid-positions
HY9215:
- Lever operated valve. Spring centered. A, B, P and T closed in central position.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
4/3 distribution valve. A, B, T linked in mid-position
HY9241:
- Lever operated valve. Spring-centered. A, B and T connected in central position. P closed in central position.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.

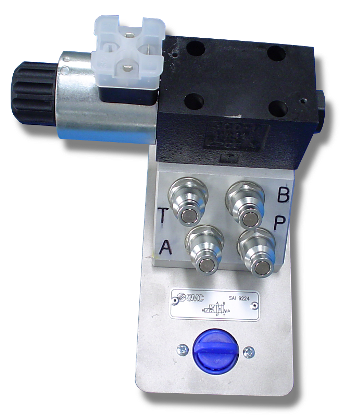

Distribution solenoid valve 4/2
HY9224:
- Electric drive. Spring reset.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
*Connector for SAI9272 coil required.
4/2 solenoid valve with closed mid-position
HY9273:
- 4 lines closed at rest.
- Electric drive. Spring reset.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
*Connector for SAI9272 coil required.
4/2 solenoid valve, with mechanical interlocking
HY9275:
- Mechanical interlock. Electrically operated in both sides, biestable.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
*Connectors for SAI9272 coil required.
Distribution solenoid valve 4/3
HY9226:
- Electric drive and spring centring.
- Closed centre.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
*Connectors for SAI9272 coil required.
4/3 solenoid valve with relieving mid-position
HY9227:
- Electrically operated. Solenoids and spring centered. A-B-T linked. P closed in central position.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
*Connectors for HY9272 coils required.
4/3 solenoid valve with PT-connected in mid-position
HY9228:
- Electrically operated: 24VDC solenoids and spring centered. P-T linked. A-B closed in central position.
- Mounted on anodized aluminium base plate with three male anti-leakage quick-fit connectors R 1/4”.
- Standardised valve TN6.
*Connectors for HY9272 coils required.
4/3 solenoid valve, A-B-P linked. T closed in mid-position
HY9281:
- Electrically operated. Solenoids and spring centered. A-B-P linked. T closed in central position.
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
*Connectors for HY9272 coils required.
Proportional distribution valve 4/3
HY9302:
- Distributor valve 4/3 with gradual opening, depending on the value of the electrical control signal.
- Direct control, spring centring. Closed centres.
- Nominal flow rate: 6 l/min.
- Pmax. = 315 bar.
- Coils at 24V, 0~0.85 A.
- On base plate with 4 quick-fix male connectors, R 1/4”.
- Standardised valve TN6.
*Connectors for SAI9303 coils required.
Pilot-operated proportional distribution valve 4/3
HY9304:
- Distributor valve 4/3 with gradual opening, depending on the value of the electrical control signal, with a principal stage and another pilot stage.
- Indirect control, spring centring. Closed centres.
- Pmax. = 210 bar.
- Coils at 24V, 0~0.85 A. Internal X and Y drivers
- On base plate with 4 quick-fix male connectors, R 1/4”.
- Rated size 10 (TN10).
*Connectors for SAI9303 coils required.
Proportional distribution valve 4/3 with position sensor
HY9308:
- Distributor valve 4/3 with gradual opening, depending on the value of the electrical control signal It incorporates position capture of the internal slide.
- Direct control. Spring centring. Closed centres.
- Nominal flow rate: 5 l/min. Pmax. = 350 bar.
- With LVDT runner position sensor
- On base plate with three quick-fit male connectors R 1/4”.
- Standardised valve TN6.
*Connectors for HY9303 coils required.
